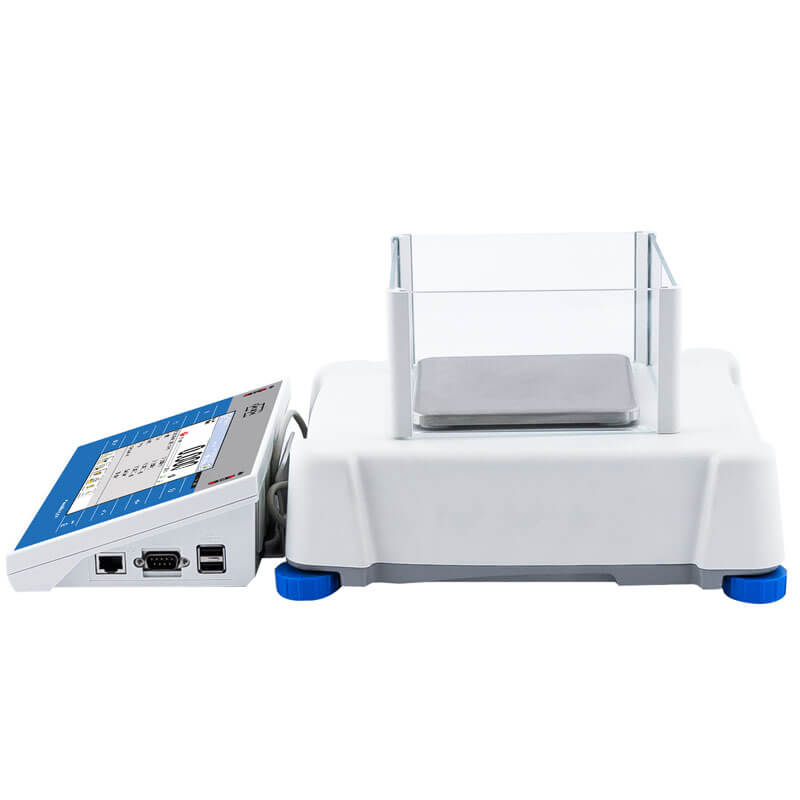

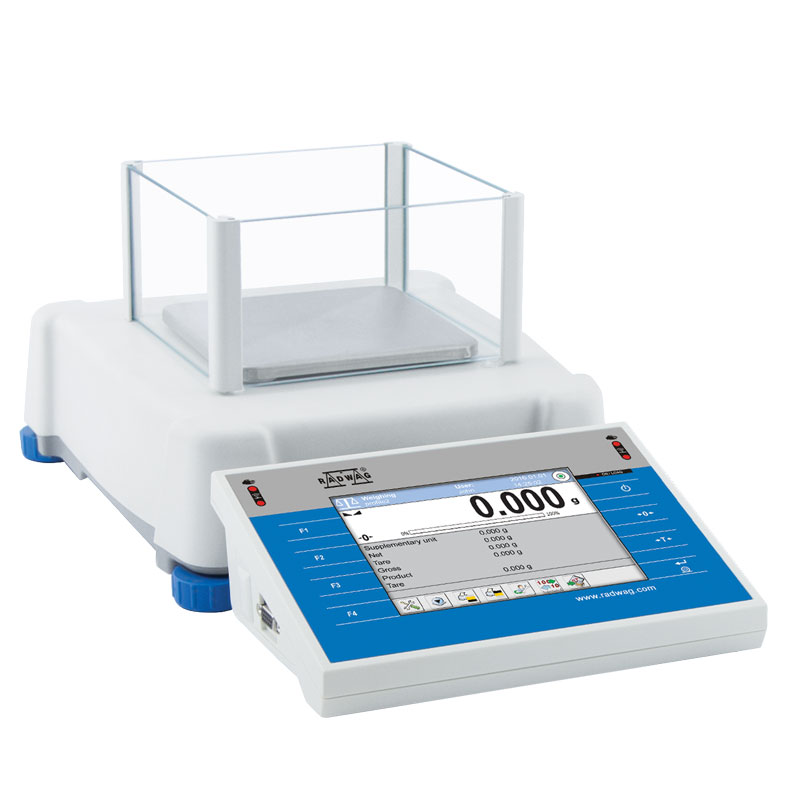

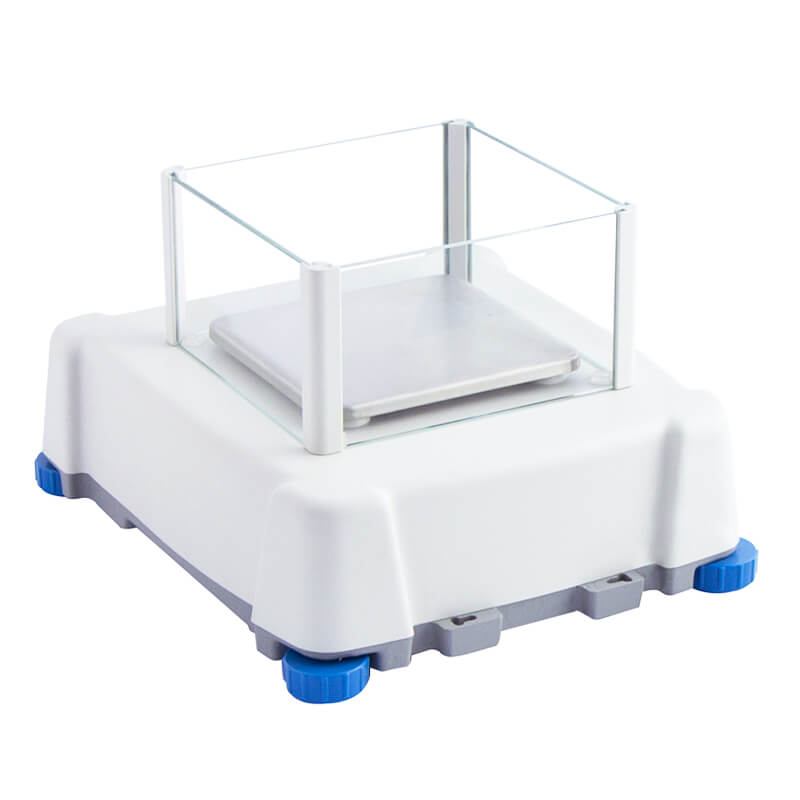

WL-220-0030/WL-220-0028/WL-220-0077/WL-220-0078/WL-220-0079/WL-220-0080, PS 450.3Y Precision Balance – Radwag
Precision balance PS 3Y series features a 5,7” TFT colourful touch screen display providing new approach to balance operation and presentation of measurement result. The balance enables highly developed customization of its settings through user profiles.
$2,093.00 – $3,472.00
Precision balance PS 3Y series features a 5,7” TFT colourful touch screen display providing new approach to balance operation and presentation of measurement result. The balance enables highly developed customization of its settings through user profiles.
The 3Y series comprises automatic internal adjustment system using an internal mass standard. The balance level is monitored by a LevelSENSING system, a RADWAG patented solution including an electronic level. A new feature of the 3Y series is on-line monitoring of ambient conditions by means of either internal sensors or external ambient conditions module THB.
A newly implemented differential weighing mode enables controlling mass of a tested load subjected to different processes over time.
Extended databases of the 3Y series balance allow to keep records of all acquired measurements, additionally they make data print and export possible. Standard printouts or user defined, fully editable templates allow for creating documentation required by GLP/GMP practically in any organization.
The 3Y series features an independent mass control mode organized in cooperation with an automatic feeder PA-04/H series.
| Specification | WL-220-0030 (PS 450.3Y) | WL-220-0028 (PS 1000.3Y) | WL-220-0077 (PS 4500.3Y.M *) |
| Maximum capacity [Max] | 450 g | 1000 g | 4500 g |
| Minimum load | 0.02 g | 0.02 g | 0.5 g |
| Readability [d] | 0.001 g | 0.001 g | 0.01 g |
| Verification scale interval [e] | 0.01 g | 0.01 g | – |
| Tare range | -450 g | -1000 g | -4500 g |
| Repeatability (5% Max) * | 0.0005 g | 0.0005 g | 0.005 g |
| Repeatability (Max) * | 0.001 g | 0.0015 | 0.008 g |
| Linearity | ±0.002 g | ±0.003 g | ± 0,02 g |
| Sensitivity temperature drift ** | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt |
| Minimum weight (U = 1%, k = 2) | 0.1 g | 0.1 g | 1 g |
| Minimum weight (USP) | 1 g | 1 g | 10 g |
| Stabilization time | 2 s | 2 s | 1.5 s |
| Adjustment | internal | internal | internal |
| Verification | Yes | Yes | Yes |
| OIML class | II | II | II |
| Indicator fastening | 35 cm cable,wireless connection (option)*** | 35 cm cable,wireless connection (option)*** | 35 cm cable,wireless connection (option)*** |
| Display | 5.7” colour, resistive touch screen | 5.7” colour, resistive touch screen | 5.7” colour, resistive touch screen |
| Keypad | 8 keys | 8 keys | 8 keys |
| Protection class | IP 43 | IP 43 | IP 43 |
| Databses | 19 | 19 | 19 |
| Touch-free operation | 2 programmable proximity sensors | 2 programmable proximity sensors | 2 programmable proximity sensors |
| USB-A | 2 | 2 | 2 |
| Ethernet | 10 / 100 MBit | 10 / 100 MBit | 10 / 100 MBit |
| RS 232 | 2 | 2 | 2 |
| Wi-Fi® | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| IN/OUT | 4 × IN, 4 × OUT | 4 × IN, 4 × OUT | 4 × IN, 4 × OUT |
| Power supply | 13.5 ÷ 16 V | 13.5 ÷ 16 V | 13.5 ÷ 16 V |
| Power consumption | 10 W | 10 W | 10 W |
| Operating temperature | +10 ÷ +40 °C | +10 ÷ +40 °C | +10 ÷ +40 °C |
| Atmospheric humidity*** | 40 ÷ 80% | 40 ÷ 80% | 40 ÷ 80% |
| Transport and storage temperature | –20 ÷ +50 °C | –10 ÷ +50 °C | –20 ÷ +50 °C |
| Weighing pan dimensions | 128 × 128 mm | 128 × 128 mm | 195 × 195 mm |
| Weighing pan material | stainless steel 0H18N9 | stainless steel 0H18N9 | stainless steel 0H18N9 |
| Weighing device dimensions | 425 × 251 × 168 mm | 425 × 251 × 168 mm | 425 × 251 × 99 mm |
| Net weight | 5.4 kg | 5.7 kg | 5.6 kg |
| Gross weight | 7.9 kg | 8.3 kg | 8.2 kg |
| Packing dimensions | 720 × 360 × 260 mm | 720 × 360 × 260 mm | 720 × 360 × 260 mm |
| Specification | WL-220-0078 (PS 6100.3Y.M *) | WL-220-0079 (PS 8100.3Y.M *) | WL-220-0080 (PS 10100.3Y.M *) |
| Maximum capacity [Max] | 6100 g | 8100 g | 10100 g |
| Minimum load | 0.5 g | 0.5 g | 0.5 g |
| Readability [d] | 0.01 g | 0.01 g | 0.01 g |
| Verification scale interval [e] | – | – | – |
| Tare range | -6100 g | -8100 g | -10100 g |
| Repeatability (5% Max) * | 0.005 g | 0.005 g | 0.005 g |
| Repeatability (Max) * | 0.008 g | 0.01 g | 0.012 g |
| Linearity | ±0.02 g | ±0.03 g | ± 0,03 g |
| Sensitivity temperature drift ** | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt |
| Minimum weight (U = 1%, k = 2) | 1 g | 1 g | 1 g |
| Minimum weight (USP) | 10 g | 10 g | 10 g |
| Stabilization time | 1.5 s | 1.5 s | 1.5 s |
| Adjustment | internal | internal | internal |
| Verification | Yes | Yes | – |
| OIML class | II | II | – |
| Indicator fastening | 35 cm cable,wireless connection (option)*** | 35 cm cable,wireless connection (option)*** | 35 cm cable,wireless connection (option)*** |
| Display | 5.7” colour, resistive touch screen | 5.7” colour, resistive touch screen | 5.7” colour, resistive touch screen |
| Keypad | 8 keys | 8 keys | 8 keys |
| Protection class | IP 43 | IP 43 | IP 43 |
| Databses | 19 | 19 | 19 |
| Touch-free operation | 2 programmable proximity sensors | 2 programmable proximity sensors | 2 programmable proximity sensors |
| USB-A | 2 | 2 | 2 |
| Ethernet | 10 / 100 MBit | 10 / 100 MBit | 10 / 100 MBit |
| RS 232 | 2 | 2 | 2 |
| Wi-Fi® | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n |
| IN/OUT | 4 × IN, 4 × OUT | 4 × IN, 4 × OUT | 4 × IN, 4 × OUT |
| Power supply | 13.5 ÷ 16 V | 13.5 ÷ 16 V | 13.5 ÷ 16 V |
| Power consumption | 10 W | 10 W | 10 W |
| Operating temperature | +10 ÷ +40 °C | +10 ÷ +40 °C | +10 ÷ +40 °C |
| Atmospheric humidity*** | 40 ÷ 80% | 40 ÷ 80% | 40 ÷ 80% |
| Transport and storage temperature | –20 ÷ +50 °C | –10 ÷ +50 °C | –20 ÷ +50 °C |
| Weighing pan dimensions | 195 × 195 mm | 195 × 195 mm | 195 × 195 mm |
| Weighing pan material | stainless steel 0H18N9 | stainless steel 0H18N9 | stainless steel 0H18N9 |
| Weighing device dimensions | 425 × 251 × 101 mm | 425 × 251 × 101 mm | 425 × 251 × 101 mm |
| Net weight | 6.8 kg | 6.8 kg | 6.8 kg |
| Gross weight | 9.4 kg | 9.4 kg | 9.4 kg |
| Packing dimensions | 720 × 360 × 260 mm | 720 × 360 × 260 mm | 720 × 360 × 260 mm |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Model | WL-220-0030 (PS 450.3Y), WL-220-0028 (PS 1000.3Y), WL-220-0077 (PS 4500.3Y.M *), WL-220-0078 (PS 6100.3Y.M *), WL-220-0079 (PS 8100.3Y.M *), WL-220-0080 (PS 10100.3Y.M *) |
