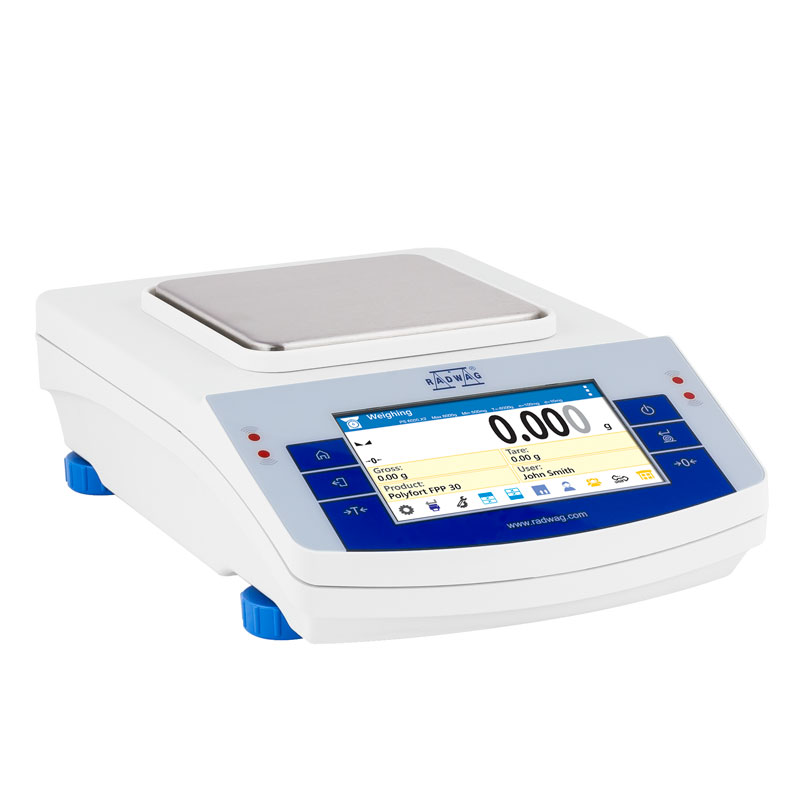

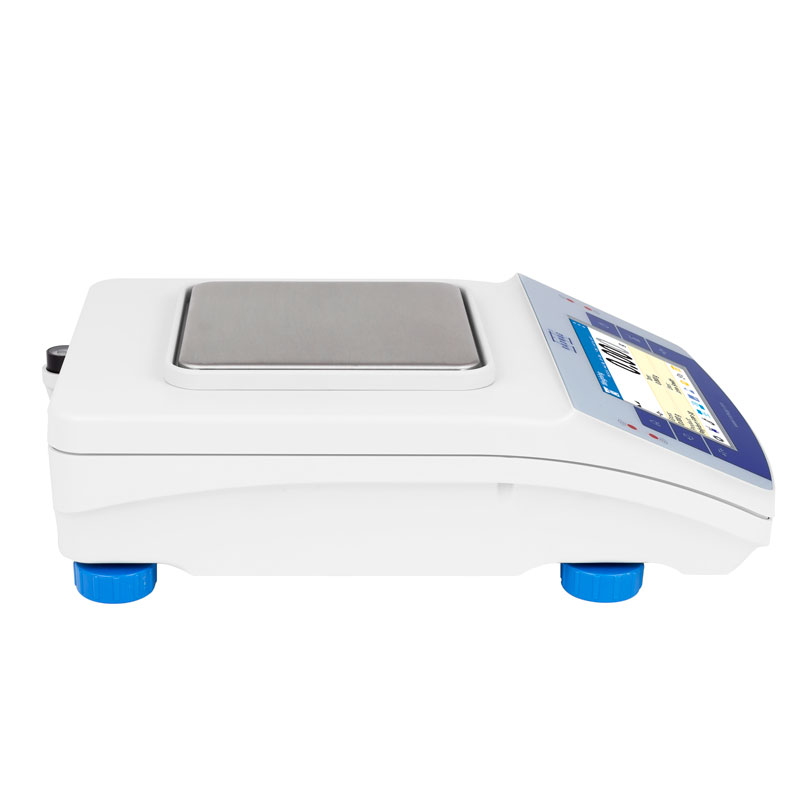

The PS.X2 series represents a new advanced level for precision balances.
The X2 series balances feature the latest generation capacitive display providing the maximum comfort of use, available right at your fingertips. Ease of operation, clear menu and practical arrangement of the display guarantee the best ergonomics for your everyday tasks. A wide array of available interfaces facilitate selection of the most optimal means for communication. The X2 series balances offer unlimited possibilities for cooperation with external devices, providing printing, copying, archiving and data transfer.
Built-in IR sensors allow numerous operations (e.g. tarring, transmitting the result to a printer or selecting successive steps of a particular process, etc.) to be performed handsfree, by simply moving a hand across the sensor. The housing is made of plastic, and the pan is made of stainless steel.
Databases in X2 series balances
In new PS.X2 series balances the information system is based on 7 databases which allow several users to work with database storing several products. The registered weighing results can be subject to further analysis.
The data is registered in 7 databases:
- Users (up to 10 users)
- Products (up to 5 000 products)
- Weighments (up to 50 000 weighments)
- Packaging (up to 100 packaging types)
- Formulas (up to 100 formulas)
- Clients (up to 1000 clients)
- ALIBI memory (up to 512 000 weighments)
The X2 series features option of making reports on formulas (up to 500 reports).
ALIBI Memory
The X2 series balances feature ALIBI memory that is a warranty for safety and automatic recording of your measurements. Options such as data preview, copying and archiving are available to users as well. The ALIBI memory allows to record up to 500 000 weighment records.
Personalization taken to the next level
The X2 is the only balance available on the market that provides a user with the option to design display using wide selection of widgets. Customised display of X2 series offers direct access to the results of your work and other important information directly from the home screen.
Weighing Data Management
USB interface facilitates quick transfer and copying of any results of your work (measurements, reports, databases) to other balances.
Network management of the weighing data increases effectivity, productivity and safety of the important data to the maximum.
Specification | WL-218-0020 (PS 360.X2) | WL-218-0026 (PS 1000.X2 ) | WL-218-0103 (PS 4500.X2.M *) |
Maximum capacity [Max] | 360 g | 1000 g | 4500 g |
Minimum load | 0.02 g | 0.02 g | 0.5 g |
Readability [d] | 0.001 g | 0.001 g | 0.01 g |
Verification scale interval [e] | 0.01 g | 0.01 g | 0.1 g |
Tare range | -360 g | -1000 g | -4500 g |
Repeatability (5% Max) * | 0.0005 g | 0.0005 g | 0.005 g |
Repeatability (Max) * | 0.001 g | 0.0015 | 0.008 g |
Linearity | ±0.002 g | ±0.003 g | ± 0,02 g |
Sensitivity temperature drift ** | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt |
Minimum weight (U = 1%, k = 2) | 0.1 g | 0.1 g | 1 g |
Minimum weight (USP) | 1 g | 1 g | 10 g |
Stabilization time | 2 s | 2 s | 1.5 s |
Adjustment | internal | internal | internal |
Verification | Yes | Yes | Yes |
OIML class | II | II | II |
Display | 5” capacitive colour touch screen | 5” capacitive colour touch screen | 5” capacitive colour touch screen |
Keypad | 6 keys | 6 keys | 6 keys |
Protection class | IP 43 | IP 43 | IP 43 |
Databses | 7 | 7 | 7 |
Touch-free operation | 2 programmable proximity sensors | 2 programmable proximity sensors | 2 programmable proximity sensors |
USB-A | 1 | 1 | 1 |
USB-B | 1 | 1 | 1 |
RS 232 | 2 | 2 | 2 |
Wi-Fi® | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n |
IN/OUT | 10 / 100 Mbit | 10 / 100 Mbit | 10 / 100 Mbit |
Power supply | 12 ÷ 16 V DC | 12 ÷ 16 V DC | 12 ÷ 16 V DC |
Power consumption | 4 W | 4 W | 4 W |
Operating temperature | +10 ÷ +40 °C | +10 ÷ +40 °C | +10 ÷ +40 °C |
Atmospheric humidity*** | 40 ÷ 80% | 40 ÷ 80% | 40 ÷ 80% |
Transport and storage temperature | –20 ÷ +50 °C | –20 ÷ +50 °C | –20 ÷ +50 °C |
Weighing pan dimensions | 128 × 128 mm | 128 × 128 mm | 195 × 195 mm |
Weighing pan material | stainless steel 0H18N9 | stainless steel 0H18N9 | stainless steel 0H18N9 |
Weighing device dimensions | 333 × 206 × 100 mm | 333 × 206 × 100 mm | 333 × 206 × 107 mm |
Net weight | 3.7 kg | 3.9 kg | 4.5 kg |
Gross weight | 5.3 kg | 5.5 kg | 6.1 kg |
Packing dimensions | 470 × 380 × 340 mm | 470 × 380 × 340 mm | 470 × 380 × 340 mm |
Specification | WL-218-0104 (PS 6100.X2.M *) | WL-218-0102 (PS 8100.X2.M * ) | WL-218-0101 (PS 10100.X2.M *) |
Maximum capacity [Max] | 6100 g | 8100 g | 10100 g |
Minimum load | 0.5 g | 0.5 g | 0.5 g |
Readability [d] | 0.01 g | 0.01 g | 0.01 g |
Verification scale interval [e] | 0.1 g | 0.1 g | – |
Tare range | -6100 g | -8100 g | -10100 g |
Repeatability (5% Max) * | 0.005 g | 0.005 g | 0.005 g |
Repeatability (Max) * | 0.008 g | 0.01 g | 0.012 g |
Linearity | ± 0,02 g | ± 0,03 g | ± 0,03 g |
Sensitivity temperature drift ** | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt | 2 × 106 / °C × Rt |
Minimum weight (U = 1%, k = 2) | 1 g | 1 g | 1 g |
Minimum weight (USP) | 10 g | 10 g | 10 g |
Stabilization time | 1.5 s | 1.5 s | 1.5 s |
Adjustment | internal | internal | internal |
Verification | Yes | Yes | – |
OIML class | II | II | – |
Display | 5” capacitive colour touch screen | 5” capacitive colour touch screen | 5” capacitive colour touch screen |
Keypad | 6 keys | 6 keys | 6 keys |
Protection class | IP 43 | IP 43 | IP 43 |
Databses | 7 | 7 | 7 |
Touch-free operation | 2 programmable proximity sensors | 2 programmable proximity sensors | 2 programmable proximity sensors |
USB-A | 1 | 1 | 1 |
USB-B | 1 | 1 | 1 |
RS 232 | 2 | 2 | 2 |
Wi-Fi® | 802.11 b/g/n | 802.11 b/g/n | 802.11 b/g/n |
IN/OUT | 10 / 100 Mbit | 10 / 100 Mbit | 10 / 100 Mbit |
Power supply | 12 ÷ 16 V DC | 12 ÷ 16 V DC | 12 ÷ 16 V DC |
Power consumption | 4 W | 4 W | 4 W |
Operating temperature | +10 ÷ +40 °C | +10 ÷ +40 °C | +10 ÷ +40 °C |
Atmospheric humidity*** | 40 ÷ 80% | 40 ÷ 80% | 40 ÷ 80% |
Transport and storage temperature | –20 ÷ +50 °C | –20 ÷ +50 °C | –20 ÷ +50 °C |
Weighing pan dimensions | 195 × 195 mm | 195 × 195 mm | 195 × 195 mm |
Weighing pan material | stainless steel 0H18N9 | stainless steel 0H18N9 | stainless steel 0H18N9 |
Weighing device dimensions | 333 × 206 × 107 mm | 333 × 206 × 107 mm | 333 × 206 × 107 mm |
Net weight | 4.5 kg | 4.5 kg | 4.5 kg |
Gross weight | 6.1 kg | 6.1 kg | 6.1 kg |
Packing dimensions | 470 × 380 × 340 mm | 470 × 380 × 340 mm | 470 × 380 × 340 mm |
