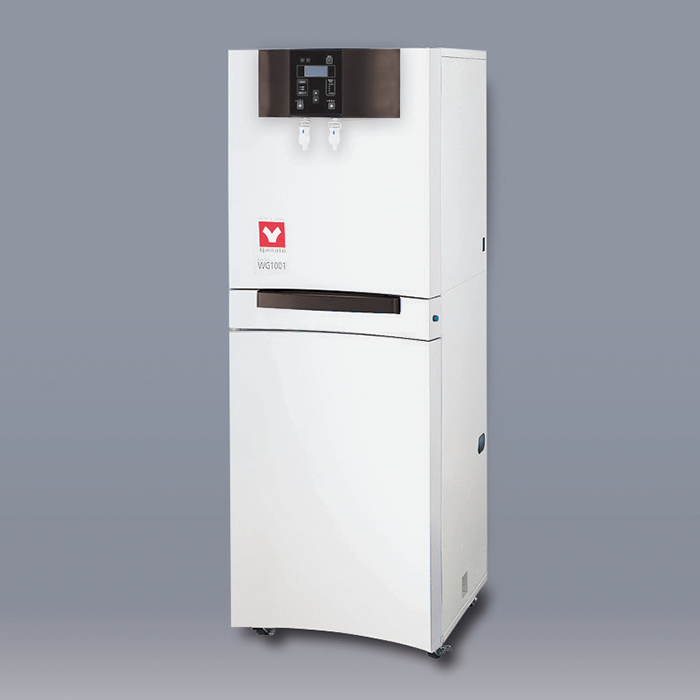

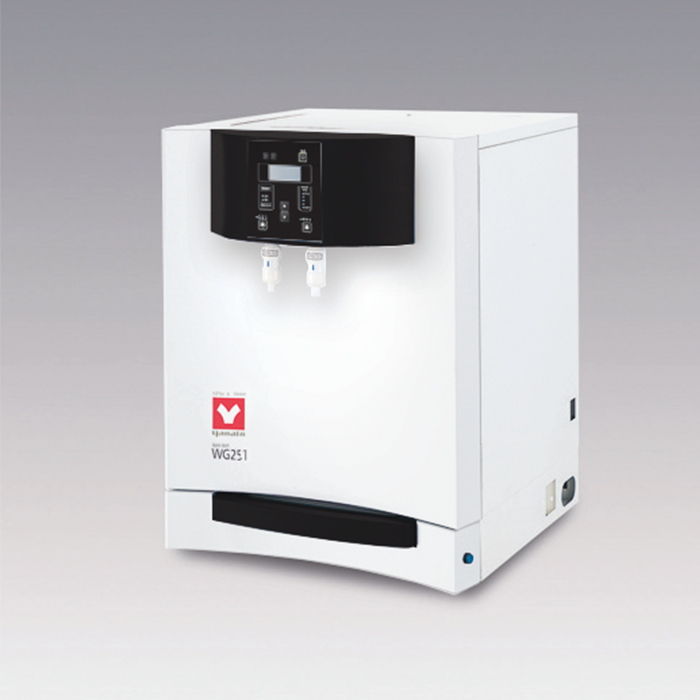

WG-251-115V/WG-251-220V/WG-1001 – WG Series Auto Still Lab Water Purifier – Yamato
$6,921.20 – $11,341.00
Yamato’s Auto Still multi-purpose water purifiers come standard with water intake membrane filters to increase the life span of all consumables and a 30L(WG251) or 100L (WG1001) large storage tank capacity. The standard equipped membrane filters at feeding port protect pure water production from contamination. The WG series produces ASTM deionized water type 1 and type 2 distilled water kept in a 30L or 100L storage tank.
Features
- Pre-treatment cartridge removes bacteria, trihalomethane, residual chlorine, organic and dust
- High performance ion-exchange resin cartridge (CPC-S, 4L) achieves high purity water with low electric conductivity and TOC

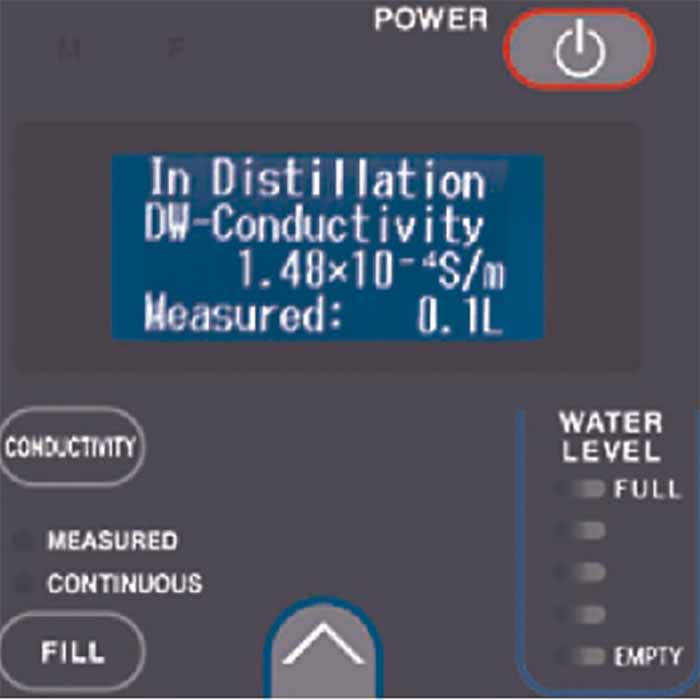

- Multi-functional control and display panel
- Standard equipped with membrane filter at water feeding port
- Large distilled water tank with capacity of 30L (WG251) and 100L (WG1001)
- Easy to use slide out type water sampling tray with drainage eliminates concerns about overflowing water discharge
| Models | WG251-115V WG251-220V |
WG1001 | |
| Water Purifying Method | Ion exchange→Distillation→Filtration | ||

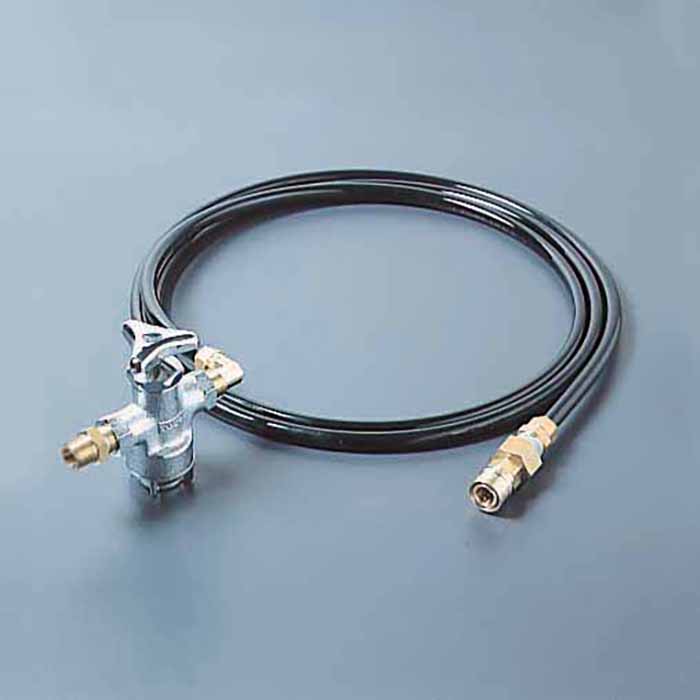

| Water Feeding | One-touch coupler connecting resin hose / free hose connecting | ||
| Water Drain Method | Left / right selection connecting / hose connecting | ||
| Purified Water | Deionized water and distilled water | ||
| Distilled Water Production | ~1.5L/h | ~5L/h | |
| Distilled Water Delivery Rate | 0.5~1L/min | 0.5~1L/min | |
| Deionized Water Delivery Rate | 0.5~1L/min | 0.5~1L/min | |
| Range Of Production | 0.1~30L / continuous water collection | 0.1~100L / continuous water collection | |
| Condenser | Hard glass | Hard glass | |
| Heater | Ceramic heater 1.2kW | Ceramic heater 1.9kW x 2 | |

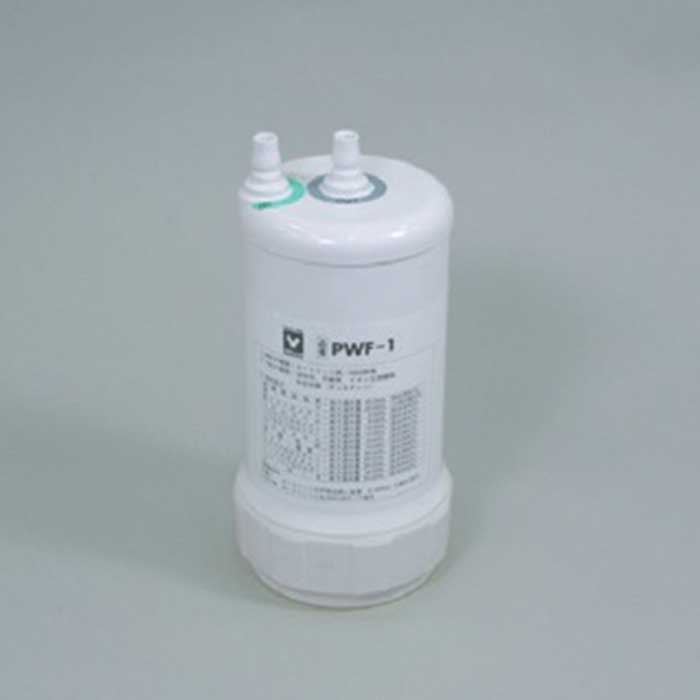

| Pre-Treatment Cartridge | 0.1µm hollow fiber + activated carbon (PWF-1) | ||

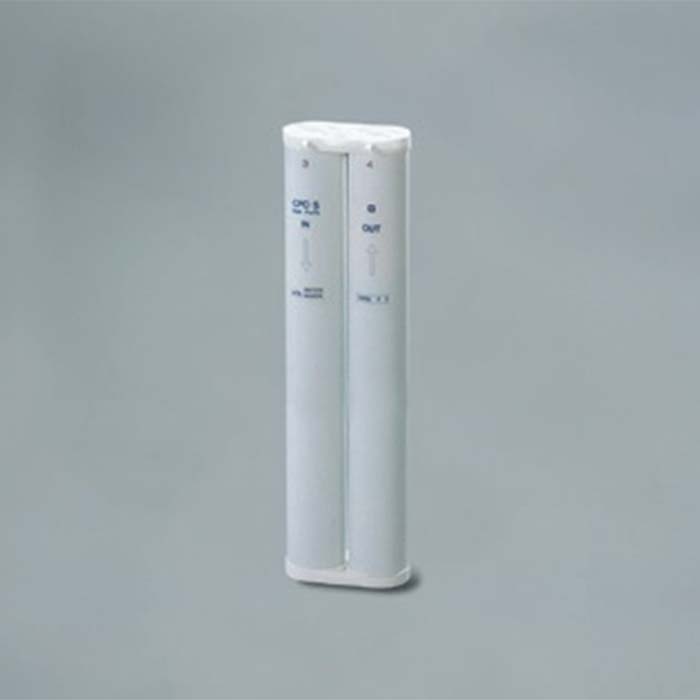

| Ion-Exchange Resin Cartridge | CPC-S 4L x 1pc. (activated carbon high-purity cartridge) | CPC-S 4L x 2pcs.(activated carbon high-purity cartridge) | |

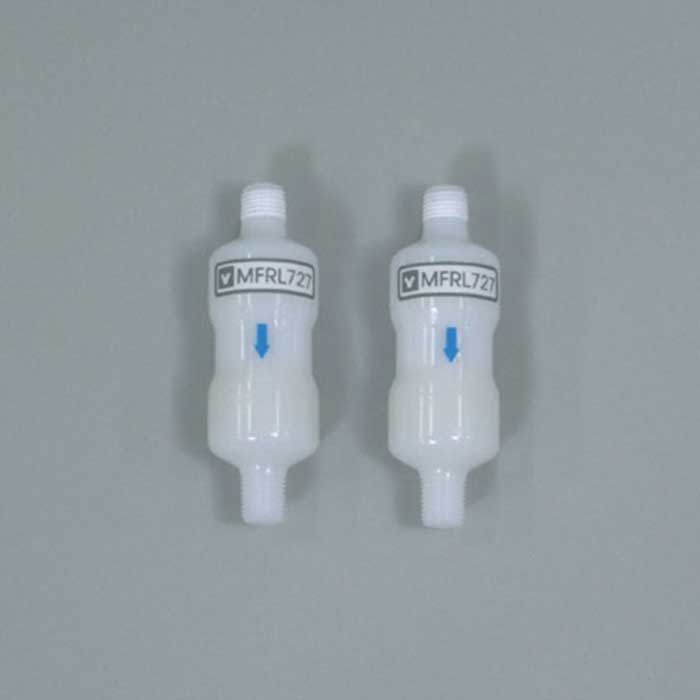

| Final Filtration | 0.1µm membrane filter x 2 | ||
| Leakage Detection | Water leakage detector forcefully shuts off feed water solenoid valve when water leakage detected | ||
| Distilled Water Tank Capacity | 30L polyethylene tank | 100L polyethylene tank | |
| Distilled Water UV Sterilization | Optional | ||
| Water Sampling Tray | Slide out type, load-bearing capacity 10kg, for 5L beaker | Slide out type, load-bearing capacity 20kg, for 10L tank | |
| Multi-Purpose Distilled Water Sampling Port | Right side of main unit | Right side of main unit | |
| Water Level Sensor | Lead switch, five level detection | ||
| Raw Water Pressure Range | 0.5~5 x 100kPa (0.5~5kgf/cm²) | ||
| Power Source (50/60 Hz) | AC115V 11A AC220V 6A |
AC220V 18A | |
| External Dimension*¹ | W600 x D660 x H980mm | W600 x D660 x 1850mm | |
| Weight | ~60kg | ~120kg | |
| Water Level Display | LED display | LED display | |
| Water Quality Display | Digital (conductivity or resistivity) | ||
| Other Display | Replacement of consumable parts (ion-exchange resin cartridge, pre-treatment cartridge, UV sterilizing lamp*², membrane filter), error message, log of consumables replacement (20 logs each), error log, Japanese or English display, maintenance requirement display | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Products | WG-251-115V (DISTILLED / DEIONIZED WATER PURIFIER ~1.8L/hr. 30L tank 115V), WG-251-220V (DISTILLED / DEIONIZED WATER PURIFIER ~1.8L/hr. 30L tank 220V), WG-1001 (DISTILLED / DEIONIZED WATER PURIFIER ~5L/hr. 100L tank 220V Single phase) |
