Laboratory Equipment, Water Purification
WG-204-115V /WG-204-220V – Water Purifier (Ion-exchange + Distillation)WG204 – Yamato
$6,198.50
Features
- Pre-treatment cartridge removes bacteria, trihalomethane, residual chlorine, organic and dust
- High performance ion-exchange resin cartridge (CPC-S, 4L) brings high purity water with low electric conductivity and TOC
- Optional membrane filter at water sampling port
- Displays replacement of consumables
- Feed / Drain water connectors on both sides
| Specifications | ||
| Item Code | 253154 | |
| Model | WG204 | |

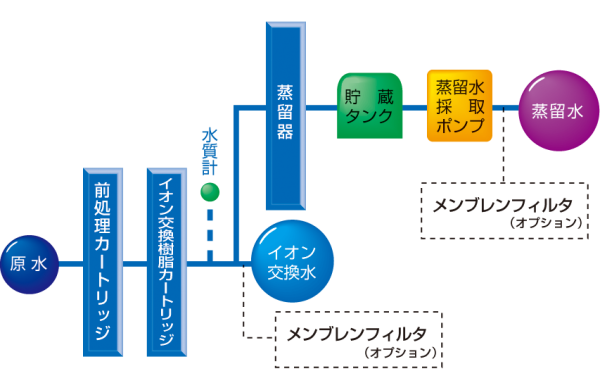

| Water purifying method | Ion-exchange→Distillation | |
| Water feeding | One-touch coupler water connection, with water stop valve | |
| Water discharging | Left / right selection for connecting hose | |
| Collection of distilled water | Deionized water / Distilled water | |
| Distilled water production | Approx. 1.5L/h | |
| Distilled water delivery rate | Approx. 1L/min | |
| Deionized water delivery rate | Approx. 1L/min | |
| Range of production | Continuous production | |
| Condenser | Hard glass | |
| Heater | Ceramic heater 1.2kW | |
| Pre-treatment cartridge | 0.1μm diameter hollow fiber + Activated carbon | |
| Ion-exchange resin cartridge | CPC-S 4L×1pc. (Activated carbon high-purity cartridge) | |
| Distilled / deionized water filter | Option | |
| Leakage indication | Forced shutdown of solenoid valve by water leakage sensor | |
| Distilled water tank capacity | 20L polyethylene tank | |
| Multi-purpose distilled water sampling port | Right side of main unit, 1pc. | |
| Water level sensor | 2 steps reed switch | |
| Raw water pressure range | 0.5 to 5×100kPa (0.5 to 5kgf/cm2) | |
| Water level display | Communication pipe water level indication | |
| Water quality display | 5 steps conductivity LED indication | |
| Other display | Replacement of consumable parts (Ion-exchange resin cartridge) | |
| Accessories | Feed /drain water hose 2m, Connecting hose assembly, Pre-treatment cartridge, Ion-exchange resin cartridge, Hose clamp | |
| External dimensions（W×D×H mm） | 600×575×780mm | |
| Power Source | AC115V / AC220V Single-phase with step-down transformer |
|
| Weight | 48kg | |
| Weight | 105.82 lbs |
|---|---|
| Dimensions | 22.64 × 23.62 × 30.71 in |
| Product | WG-204-115V (DISTILLED / DEIONIZED WATER PURIFIER ~1.8L/hr. 20L tank 115V), WG-204-220V (DISTILLED / DEIONIZED WATER PURIFIER ~1.8L/hr. 20L tank 220V) |
