Laboratory Equipment, Water Purification

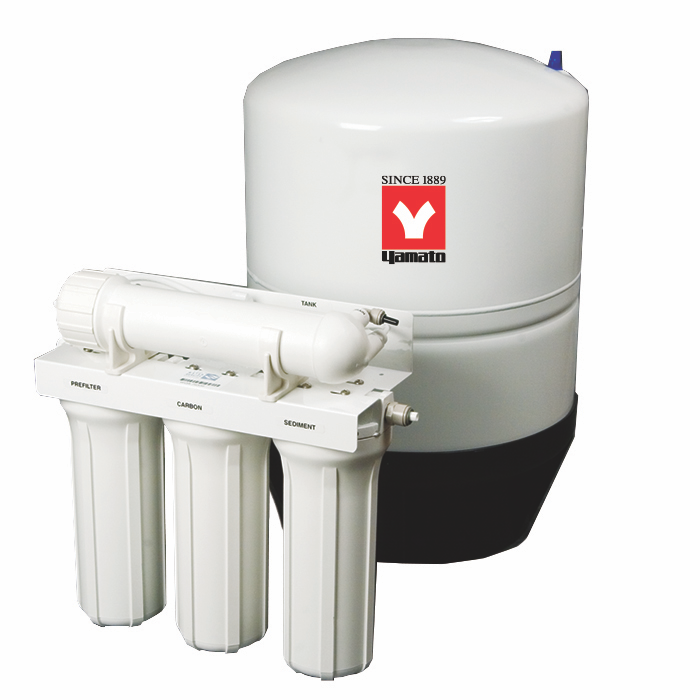

WC301UVB/WC311UVB/WC301UVR/WA311UVR – WC Series Auto Pure Water Purifier – Yamato
$9,456.70 – $10,692.00
Applications
- High Performance Liquid Chromatography (HPLC)
- Gas Chromatography Mass Spectrometry (GC/MS)
- Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
- Analytic Chemistry / Trace Organics
Description
Water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals, and ultraviolet light for bacteria sterilization and TOC reduction. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.
Features
- 2.5 LPM* of 18 MΩ Type 1 reagent water on demand
- Intuitive, user-friendly touch screen interface
- Real time quality monitoring with leak detection
- Compact design with remote dispense option
- Quick change, no tools cartridge design
- Large capacity, low cost consumable cartridges
- Premium quality ion exchange resin
- Low ownership cost
WA Series Configuration
- Conditioning cartridge
- Polishing cartridge
- UV oxidation
- 0.2 micron filter
| Models | WC301UVB/WC311UVB | WC301UVR/WA311UVR | |
| Type | Benchtop | Remote dispense | |
| Resistivity* | 18.2 MΩ-cm | ||
| Bacteria* | < 1 cfu/ml | ||
| Particulates* | < 0.2 μm filtration | ||
| TOC* | < 5 ppb | ||
| Temperature | 100˚F / 30˚C | ||
| Pressure | 90 PSIG Max. / 20 PSIG Min. | ||
| Flow Rate (Typical) | 0.67 Gallons Per Minute / 2.5 Liters Per Minute < 2.0 LPM with Ultrafilter & Endotoxin filter installed |
||
| Inlet Connection | 3/8” O.D. Tubing / 9.53 mm O.D. Tubing | ||
| Dimensions (H X W X D) | 21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm) | ||
| Weight | 42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating) | ||
| Power Requirements | 120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp | ||
| Weight | 42 lbs |
|---|---|
| Dimensions | 14.4 × 14.7 × 21.6 in |
| Products | WC-301UVB (Benchtop – with UV Oxidation Lamp installed, 120V/60Hz), WC-311UVB (Benchtop – with UV Oxidation Lamp installed, 220V/50Hz ), WC-301UVR (Remote Dispense Configuration – with UV Oxidation Lamp, 120V/60Hz), WC-311UVR (Remote Dispense Configuration – with UV Oxidation Lamp, 220V/50Hz) |
