Applications
- Life Science
- Cell Culture
- Microbiology
Description
Water is purified using a staged purification process which includes high-purity ion exchange resins to remove dissolved minerals and pyrogen removal ultrafiltration. As water exits the system, a final filter removes particulates and bacteria to reach Type I water specifications.
Features
- 2 LPM* of 18 MΩ Type 1 reagent water on demand
- Intuitive, user-friendly touch screen interface
- Real time quality monitoring with leak detection
- Compact design with remote dispense option
- Quick change, no tools cartridge design
- Large capacity, low cost consumable cartridges
- Premium quality ion exchange resin
- Low ownership cost
WB Series Configuration
- Conditioning cartridge
- Polishing cartridge
- Ultrafiltration
- 0.2 micron filter

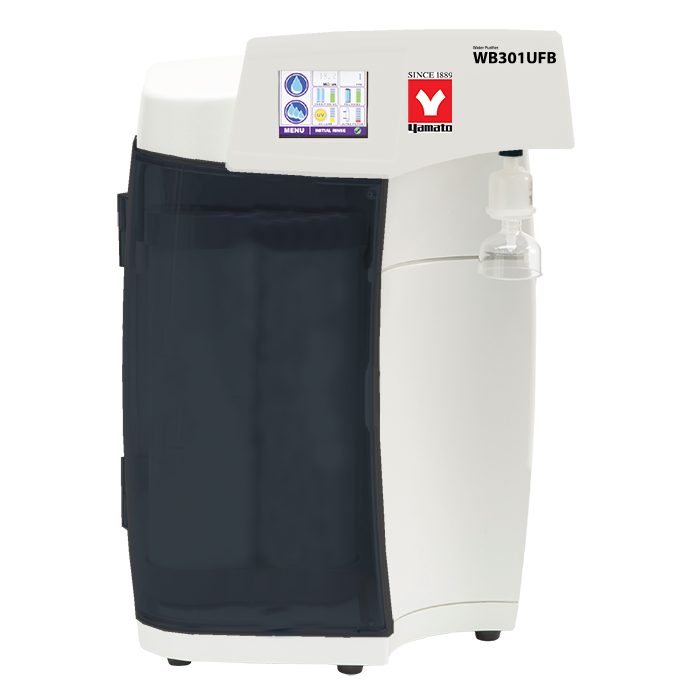

Models | WB301UFB/WB311UFB | WB301UFR/WB311UFR | |
Type | Benchtop | Remote dispense | |
Resistivity* | 18.2 MΩ-cm | ||
Bacteria* | < 1 cfu/ml | ||
Endotoxin* | < 0.005 EU/ml | ||
Particulates* | < 0.05 μm filtration | ||
TOC* | < 15 ppb | ||
RNase* | < 0.01 ng/ml | ||
DNase* | < 4 pg/μl | ||
Temperature | 100˚F / 30˚C | ||
Pressure | 90 PSIG Max. / 20 PSIG Min. | ||
Flow Rate (Typical) | 0.67 Gallons Per Minute / 2.5 Liters Per Minute < 2.0 LPM with Ultrafilter & Endotoxin filter installed |
||
Inlet Connection | 3/8” O.D. Tubing / 9.53 mm O.D. Tubing | ||
Dimensions (H X W X D) | 21.6 in. x 14.7 in. x 14.4 in. (54.8 cm x 37 cm x 36.5 cm) | ||
Weight | 42 lbs. dry / 47 lbs. operating (22.7 kg dry / 25 kg operating) | ||
Power Requirements | 120V, 60 Hz @ 1.0 amp / 220V, 50 Hz @ 0.5 amp |
