Educational Microscopes, Laboratory Equipment, Microscopes

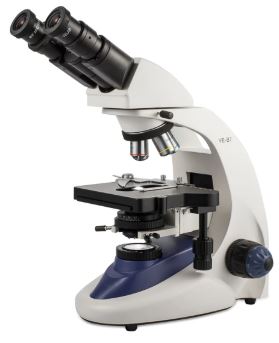

VE-B7 INTERMEDIATE BINOCULAR MICROSCOPE – VELAB
$939.00
Binocular microscope suitable for undergraduate and graduate education and research, clinical and histological diagnosis.
| Specification | ||
| Eyepiece | WF 10X – 22 mm with protective rubber bands and diopter adjustment on one of the eyepieces. | |
| Head | Siedentopf type binocular inclined at 45º and rotatable 360º, with interpupillary distance adjustment of 48 – 75 mm. | |
| Revolver | Quadruple with anti-slip ring and stop. | |
| Objectives | 4X, 10X, 40X (retractable), 100X Immersion (retractable) with infinity-corrected achromatic plan optics, metallic finish and color ring for easy identification. | |
| Body | Stable, robust, reinforced and finished in epoxy paint. | |
| Stage | Double plate with X-Y coaxial movements, 150 x 132 mm, with vernier, millimeter scale, caliper and stop with height adjustment. | |
| Capacitor | Abbe, A. N. 1.25 with lifting screw, equipped with adapter bracket for phase contrast kit or polarization set (not included) | |
| Diaphragm | Iris with filter holder. | |
| Approaches | Macrometric and micrometric non-slip coaxial with tension adjustment. | |
| Lighting | Kohler LED with variable intensity control and field diaphragm in the lamp. | |
| Power | 3 rechargeable 1.2V AA batteries (included) for 4 hours of continuous operation. AC120V, 50 / 60Hz | |
| Product | DH.WIS05210 (Incubator Shaking, Top Door, 10~60℃, w/Illuminator ThermoStable IS-10RL, 230V(60Hz)), DH.WIS05110 (Incubator Shaking, Top Door, 10~60℃, w/Illuminator ThermoStable IS-10RL, 120V(60Hz)) |
|---|
