Educational Microscopes, Laboratory Equipment, Microscopes

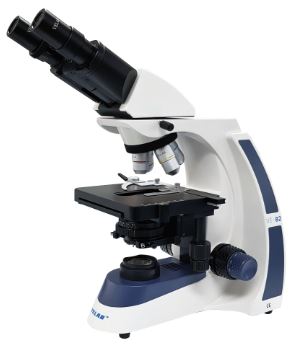

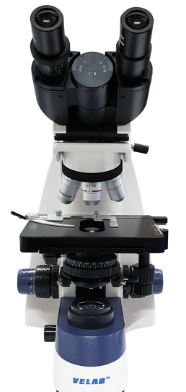

VE-B2 BASIC BINOCULAR MICROSCOPE – VELAB
$456.00
Binocular microscope with LED lighting and quadruple revolver.
High performance microscope, with improved stability and aesthetics, more ergonomic, recommended for higher education, university, basic research, and routine work in any laboratory.
| Specification | ||
| Eyepiece | WF 10X / 20mm with diopter adjustment on one of the eyepieces. | |
| Head | Siedentopf type binocular inclined at 30 ° and rotatable 360 ° with interpupillary distance adjustment of 48 – 75 mm. | |
| Revolver | Quadruple with anti-slip ring and stop. | |
| Objectives | 4X, 10X, 40X (retractable) and 100X immersion (retractable) with achromatic optics, anti-slip ring and color ring for easy identification. | |
| Body | Stable, robust and reinforced with epoxy paint finish. | |
| Stage | Double plate with X-Y coaxial movements, 160 x 140 mm, vernier, millimeter scale, caliper and height stop | |
| Capacitor | Abbe, A.N. 1.25 with lifting screw. | |
| Diaphragm | Iris with filter holder. | |
| Approaches | Coaxial coarse and fine slip with adjustable tension. | |
| Lighting | LED with variable intensity control. | |
| Power | 3 rechargeable 1.2V AA batteries (included) for 4 hours of continuous operation. AC120V, 50/60 Hz. | |
| Product | DH.WIS05210 (Incubator Shaking, Top Door, 10~60℃, w/Illuminator ThermoStable IS-10RL, 230V(60Hz)), DH.WIS05110 (Incubator Shaking, Top Door, 10~60℃, w/Illuminator ThermoStable IS-10RL, 120V(60Hz)) |
|---|
