Educational Microscopes, Laboratory Equipment, Microscopes

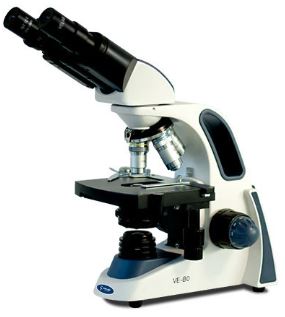

VE-B0 BIOLOGICAL BINOCULAR MICROSCOPE – VELAB
$350.00
Portable binocular microscope with LED lighting and quadruple revolver.
Basic microscope from the VELAB Binocular series. This model is suitable for routine techniques in clinical laboratories and teaching at upper secondary and university levels.
| Specification | ||
| Eyepiece | WF 10X / 18mm with diopter adjustment on one of the eyepieces. | |
| Head | Siedentopf type binocular 45 ° inclined and 360 ° rotatable with interpupillary distance adjustment of 48-75 mm. | |
| Revolver | Quadruple with stop. | |
| Objectives | 4X, 10X, 40X (retractable) and 100X immersion (retractable) with achromatic optics, metallic finish, non-slip ring and color ring for easy identification. | |
| Body | Stable, robust and reinforced with epoxy paint finish. | |
| Stage | Double plate with X-Y coaxial movements, 130 x 130 mm, vernier, millimeter scale, caliper and stop with height adjustment. | |
| Capacitor | Abbe, A.N. 1.25 with lifting screw. | |
| Diaphragm | Iris with filter holder. | |
| Focus | Coaxial non-slip macrometric and micrometric with tension adjustment. | |
| Lighting | LED with variable intensity control. | |
| Power | 3 rechargeable 1.2V AA batteries (included) for 4 hours of continuous operation. AC120V, 50/60 Hz. | |
| Product | DH.WIS05210 (Incubator Shaking, Top Door, 10~60℃, w/Illuminator ThermoStable IS-10RL, 230V(60Hz)), DH.WIS05110 (Incubator Shaking, Top Door, 10~60℃, w/Illuminator ThermoStable IS-10RL, 120V(60Hz)) |
|---|
