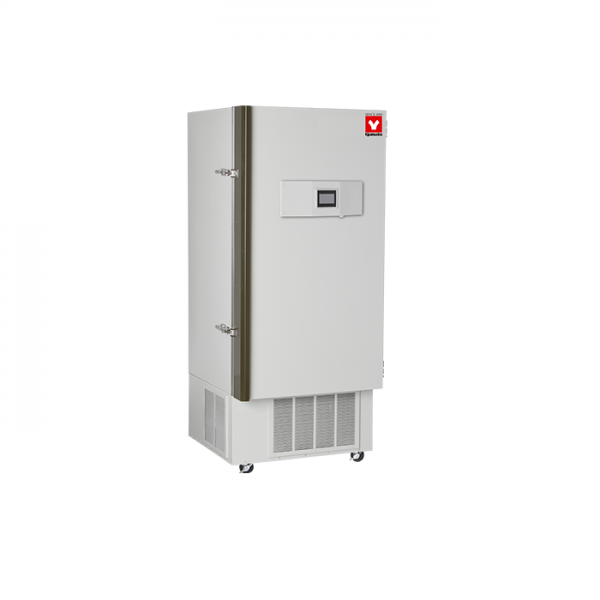

ULF401UP/ULF501UP/ULF601UP/ULF701UP/ULF801UP/ULF901UP- Ultra-Low ULF Platinum Series Vertical (Upright) Freezers – Yamato
$12,672.00 – $18,315.00
Primary Uses
- Clinics
- Research
- Small laboratories
- Hospital rooms
- Medical clinics
| Models | ULF PLATINUM SERIES | |
| Temperature Range | -40ºC to -85ºC / -40ºC to -80ºC | |
| Temperature Control System | Touch Screen control Displays set point and chamber temperature Hi/Low Alarm W/ Email and SMS notification Alarm Relay Dry Contacts Power Failure Dry Contacts Battery Back-up Viewable Temperature graph Data logging downloadable via USB or FTP Multi-Level Security VNC Remote Access via PC / smart devices |
|
| Digital Alarm System With Relay | Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. Alarm has over and under temperature setting, alarm silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up. |
|
| Access Port | Mounted in left hand side of the cabinet will be a 1/2″ porthole leading into the chilling chamber, complete with plugs | |
| Refrigeration System | Cascade type – Two hermetic compressors. CFC & HCFC free refrigerants |
|
| Construction | Chamber is 14-ga. zinc coated galvanized steel. Exterior is 16-ga. steel. Powder coated cool gray finish. |
|
| Electrical Requirements | 115V, 60 Hz, 1 phase 208V, 60 Hz, 1 phase 230V, 60 Hz, 1 phase 220V, 50 Hz, 1 phase 220V, 60 Hz, 1 phase |
|
| Optional Accessories | Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves | |
| Models | CAPACITY | RACK CAPACITY | SHELVING | TEMP. RANGE | INTERNAL DIMENSIONS | EXTERNAL DIMENSIONS | |
| ULF401UP | 370L / 13 cu. ft. | 15 | 4 adjustable (5 compartments) |
-40ºC to -85ºC | 20” x 22” x 51.25 50 x 55 x 130 cm |
35″ x 34.5″ x 79.5″ 88 x 87 x 201 cm |
|
| ULF501UP | 505L / 18 cu. ft. | 20 | 4 adjustable (5 compartments) |
-40ºC to -85ºC | 23” x 26” x 51.25” 58 x 66 x 130 |
40″ x 36″ x 79.5″ 101 x 91 x 201 cm |
|
| ULF601UP | 626L / 22 cu. ft. | 25 | 4 adjustable (5 compartments) |
-40ºC to -85ºC | 28.5” x 26” x 51.25” 72 x 66 x 130 cm |
43″ x 37″ x 79.5″ 109 x 93 x 201 cm |
|
| ULF701UP | 710L / 25 cu. ft. | 30 | 4 adjustable (5 compartments) |
-40ºC to -85ºC | 34” x 25” x 51.25” 86 x 63 x 130 cm |
50″ x 37″ x 79.5″ 127 x 93 x 201 cm |
|
| ULF801UP | 792L / 28 cu. ft. | 30 | 4 adjustable (5 compartments) |
-40ºC to -80ºC | 38” x 25” x 51.25” 96 x 63 x 130 cm |
54″ x 37″ x 79.5″ 137 x 93 x 201 cm |
|
| ULF901UP | 877L / 31 cu. ft. | 35 | 4 fixed (5 compartments) |
-40ºC to -80ºC | 42” x 25” x 51.25” 106 x 63 x 130 |
60.5″ x 37″ x 79.5″ 153 x 93 x 201 cm |
|
| Dimensions | N/A |
|---|---|
| Products | ULF-401UP (PLATINUM UPRIGHT STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 13 cu.ft., Manual Defrost), ULF-501UP (PLATINUM UPRIGHT STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 18 cu.ft., Manual Defrost), ULF-601UP (PLATINUM UPRIGHT STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 22 cu.ft., Manual Defrost), ULF-701UP (PLATINUM UPRIGHT STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 25 cu.ft., Manual Defrost), ULF-801UP (PLATINUM UPRIGHT STYLE ULTRA LOW FREEZERS -40ºC to -80ºC, 28 cu.ft., Manual Defrost), ULF-901UP (PLATINUM UPRIGHT STYLE ULTRA LOW FREEZERS -40ºC to -80ºC, 30 cu.ft., Manual Defrost) |
