Freezers and refrigerators, Laboratory Equipment, Ultra Low Freezers
ULF001UN/ULF101UN/ULF201UN- Ultra-Low ULF Series Undercounter Freezers – Yamato
$7,614.20 – $10,552.30
Primary Uses
- Clinics
- Research
- Small laboratories
- Hospital rooms
- Medical clinics
| Models | ULF SERIES | |
| Temperature Control System | Digital data logging. Battery back-up, Hi/Low alarm | |
| Clearance | 4″ on sides and back. | |
| Alarm System | Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. A relay for a remote alarm hook-up is also provided |
|
| Doors | Single solid, locking | |
| Legs | Four, leveling | |
| Evaporator | Cold wall | |
| Defrost | Manual | |
| Insulation | Polyurethane CFC Free | |
| Electrical Requirements | 115 volts, 60 hertz, 1 phase | |
| Supply Plug | NEMA 5-15P ETL listed |
|
| Models | CAPACITY | TEMP. RANGE | INTERNAL DIMENSIONS | EXTERNAL DIMENSIONS | |

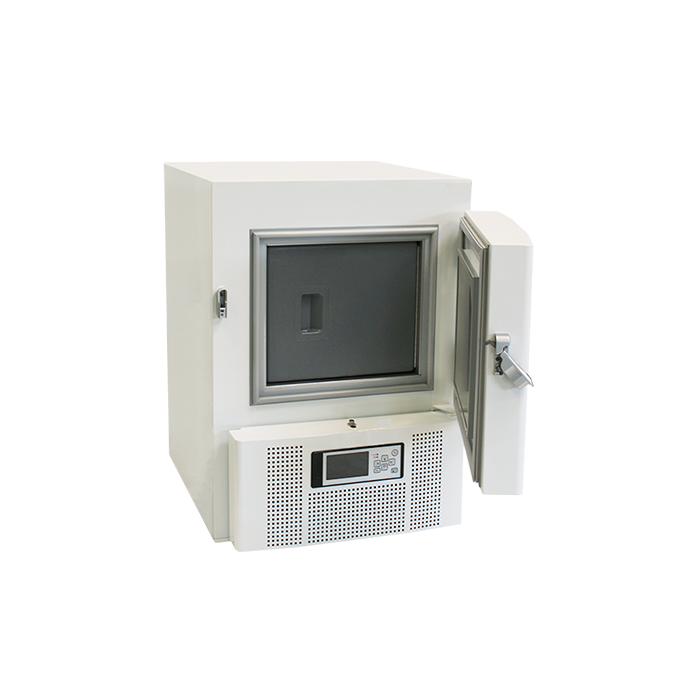

| ULF001UN | 7L / .25 cu. ft. | -40ºC to -85ºC | 5.75″ x 5.5″ x 12″ 15 x 14 x 31 |
15.75″ x 25″ x 26.25″ 40 x 60 x 66 |
|

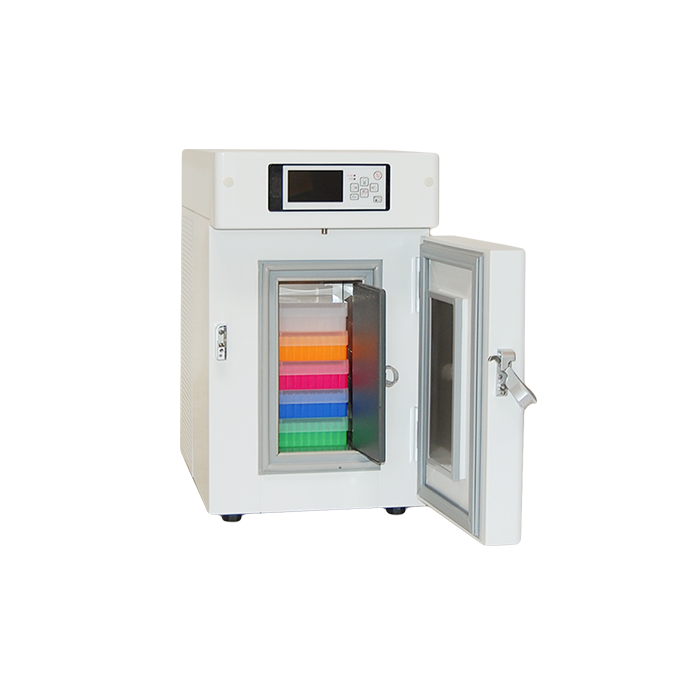

| ULF101UN | 54L / 2 cu. ft. | -40ºC to -85ºC | 14″ x 18″ x 12.5″ 35 x 45 x 31 |
23″ x 27″ x 32″ 58 x 68 x 81 |
|

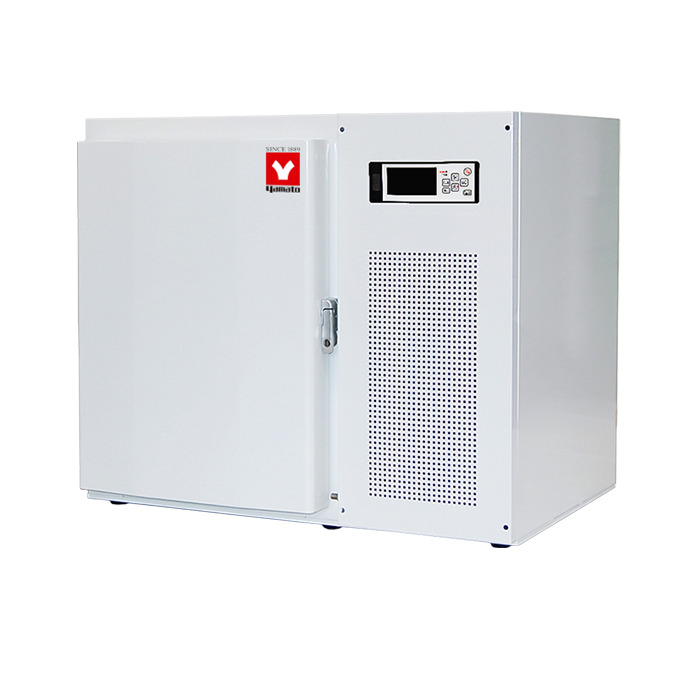

| ULF201UN | 94L / 3 cu. ft. | -40ºC to -85ºC | 14″ x 19.25″ x 20.75″ 36 x 49 x 53 |
37.5″ x 28.5″ x 32″ 95.25 x 72 x 81 |
|
| Dimensions | N/A |
|---|---|
| Products | ULF-001UN (UNDERCOUNTER ULTRA LOW FREEZERS -40ºC to -85ºC, 1 cu.ft., Manual Defrost), ULF-101UN (UNDERCOUNTER ULTRA LOW FREEZERS -40ºC to -85ºC, 2 cu.ft., Manual Defrost), ULF-201UN (UNDERCOUNTER ULTRA LOW FREEZERS -40ºC to -85ºC, 3 cu.ft., Manual Defrost) |
