ULF001CP/ULF101CP/ULF201CP/ULF301CP/ULF401CP/ULF501CP/ULF601CP/ULF701CP/ULF801CP/ULF901CP- Ultra-Low ULF Platinum Series Horizontal (Chest) Freezers – Yamato
$9,764.70 – $19,614.10
Primary Uses
- Clinics
- Research
- Small laboratories
- Hospital rooms
- Medical clinics
| Models | ULF PLATINUM SERIES | |
| Temperature Range | -40ºC to -85ºC / -40ºC to -80ºC | |
| Temperature Control System | Touch Screen control Displays set point and chamber temperature Hi/Low Alarm W/ Email and SMS notification Alarm Relay Dry Contacts Power Failure Dry Contacts Battery Back-up Viewable Temperature graph Data logging downloadable via USB or FTP Multi-Level Security VNC Remote Access via PC / smart devices |
|
| Digital Alarm System With Relay | Battery operated alarm system will emit an audible and visual signal when there is a mechanical or electrical failure. Alarm has over and under temperature setting, alarm silencing switch, and battery test switch. Also provided is a relay for remote alarm hook-up. |
|
| Access Port | Mounted in left hand side of the cabinet will be a 1/2″ porthole leading into the chilling chamber, complete with plugs | |
| Refrigeration System | Cascade type – Two hermetic compressors. CFC & HCFC free refrigerants |
|
| Construction | Chamber is 14-ga. zinc coated galvanized steel. Exterior is 16-ga. steel. Powder coated cool gray finish. |
|
| Electrical Requirements | 115V, 60 Hz, 1 phase 208V, 60 Hz, 1 phase 230V, 60 Hz, 1 phase 220V, 50 Hz, 1 phase 220V, 60 Hz, 1 phase |
|
| Optional Accessories | Chart recorder, CO² and LN² back-up system, Racks, Cold safety gloves | |
| Models | CAPACITY | RACK CAPACITY | TEMP. RANGE | INTERNAL DIMENSIONS | EXTERNAL DIMENSIONS | |
| ULF001CP | 56L / 2 cu. ft. | 6 | -40ºC to -85ºC | 17” x 14” x 14” 43 x 35 x 35 cm |
25.25″ x 25.75” x 40” 64 x 65 x 101 |
|

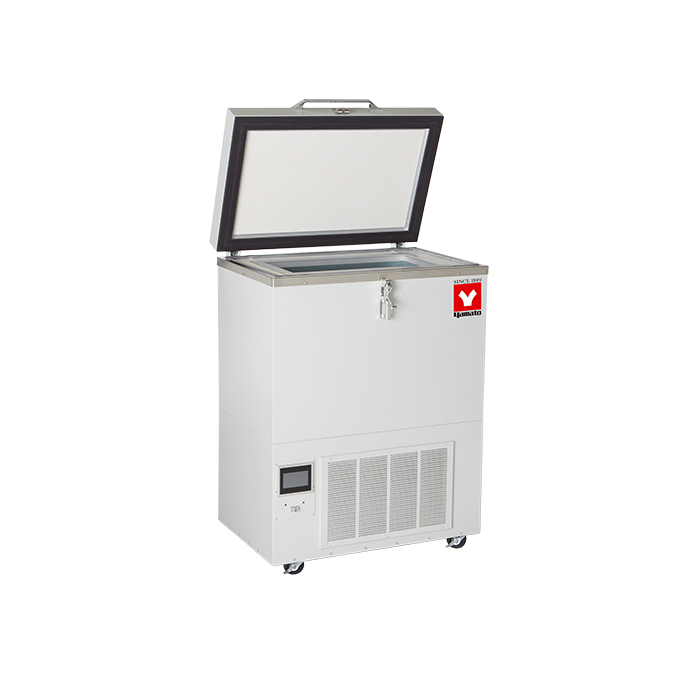

| ULF101CP | 83L / 3 cu. ft. | 8 | -40ºC to -85ºC | 24” x 12” x 18” 60 x 30 x 45 cm |
34.5″ x 25.25″ x 48″ 87 x 64 x 121 |
|

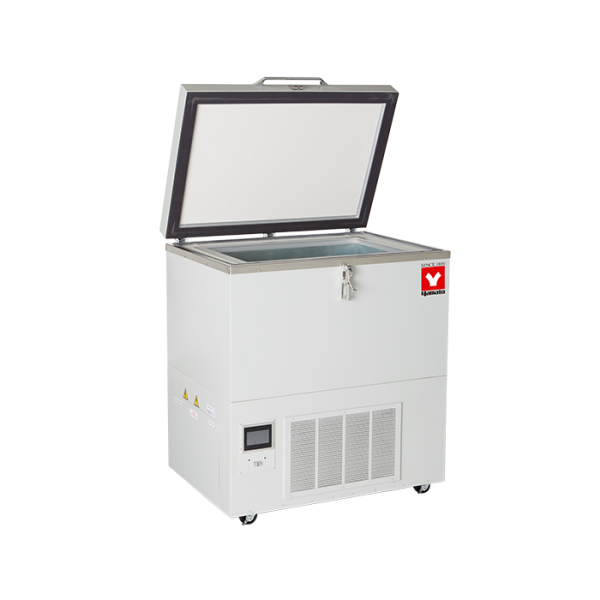

| ULF201CP | 142L / 5 cu. ft. | 15 | -40ºC to -85ºC | 30” x 18” x 16” 76 x 45 x 40 |
40.5” x 31” x 47” 102 x 81 x 119 |
|

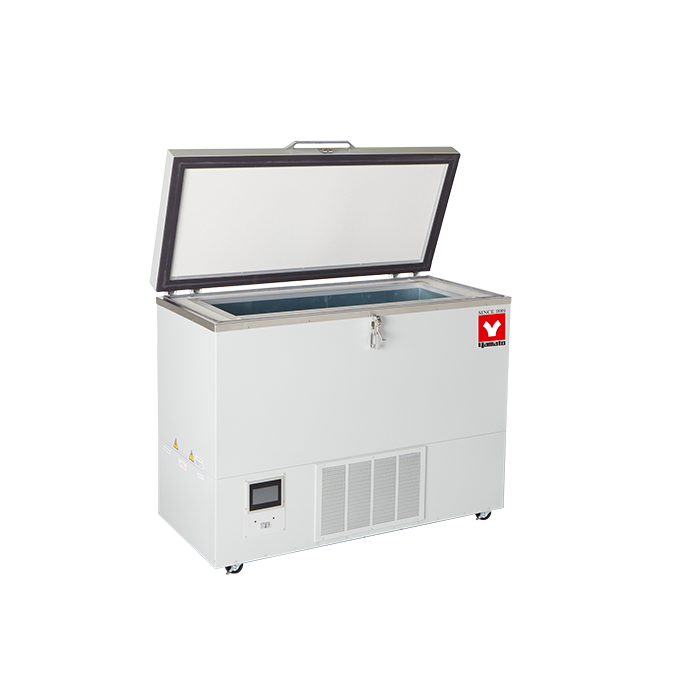

| ULF301CP | 255L / 9 cu. ft. | 16 | -40ºC to -85ºC | 46” x 16” x 20” 116 x 40 x 50 |
57.5″ x 29″ x 46.5″ 146 x 73 x 116 |
|
| ULF401CP | 340L / 12 cu. ft. | 27 | -40ºC to -85ºC | 55” x 19” x 20” 139 x 48 x 50 |
65.5″ x 32″ x 47.5″ 166 x 81 x 120 |
|
| ULF501CP | 400L / 14 cu. ft. | 30 | -40ºC to -85ºC | 62” x 20” x 20” 157 x 50 x 50 |
72.5″ x 33″ x 47.5″ 184 x 83 x 120 |
|
| ULF601CP | 480L / 17 cu. ft. | 36 | -40ºC to -85ºC | 69” x 20” x 21” 175 x 50 x 53 |
81.25″ x 33.5″ x 48.5″ 206 x 85 x 123 |
|

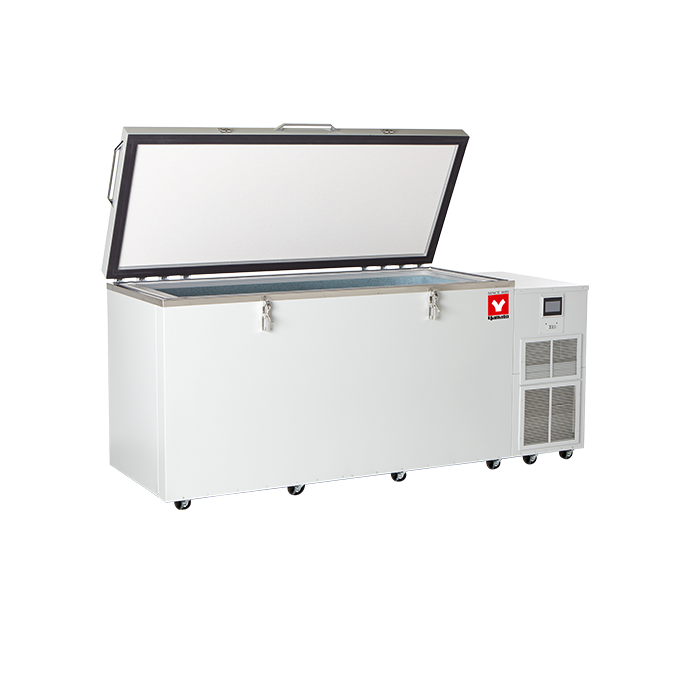

| ULF701CP | 594L / 21 cu. ft. | 36 | -40ºC to -80ºC | 81″ x 21.5″ x 21″ 205 x 54 x 53 |
91″ x 36″ x 49″ 231 x 91 x 124 |
|
| ULF801CP | 626L / 22 cu. ft. | 36 | -40ºC to -85ºC | 67” x 19” x 30” 170 x 48 x 76 |
98” x 36” x 43.5” 248 x 91 x 110 |
|
| ULF901CP | 766L / 27 cu. ft. | 48 | -40ºC to -80ºC | 67” x 23” x 31.25” 170 x 57 x 79 |
98” x 36” x 43.5” 248 x 91 x 110 |
|
| Dimensions | N/A |
|---|---|
| Products | ULF-001CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 2 cu.ft., Manual Defrost), ULF-101CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 3 cu.ft., Manual Defrost), ULF-201CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 5 cu.ft., Manual Defrost), ULF-301CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 9 cu.ft., Manual Defrost), ULF-401CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 12 cu.ft., Manual Defrost), ULF-501CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 14 cu.ft., Manual Defrost), ULF-601CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 17 cu.ft., Manual Defrost), ULF-701CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -80ºC, 21cu.ft., Manual Defrost), ULF-801CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -85ºC, 22 cu.ft., Manual Defrost, ULF-901CP (PLATINUM CHEST STYLE ULTRA LOW FREEZERS -40ºC to -80ºC, 27 cu.ft., Manual Defrost) |
