Freezers and refrigerators, Laboratory Equipment

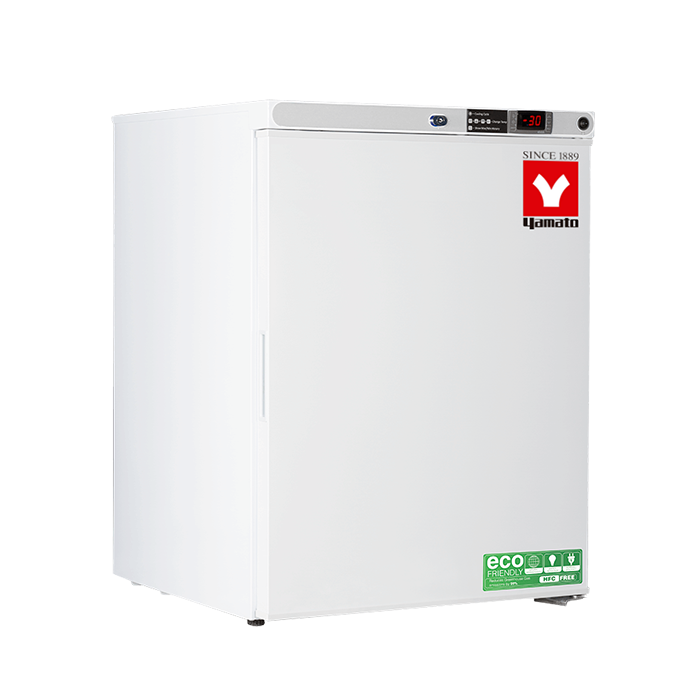

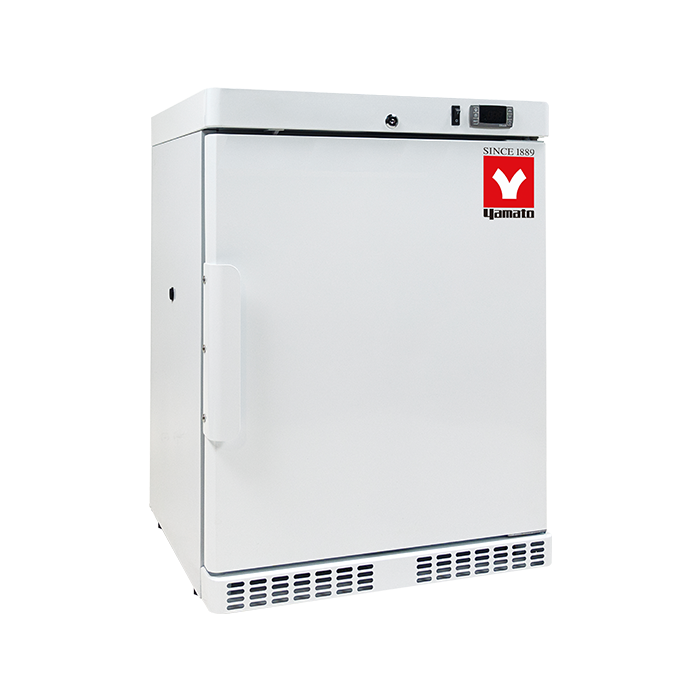

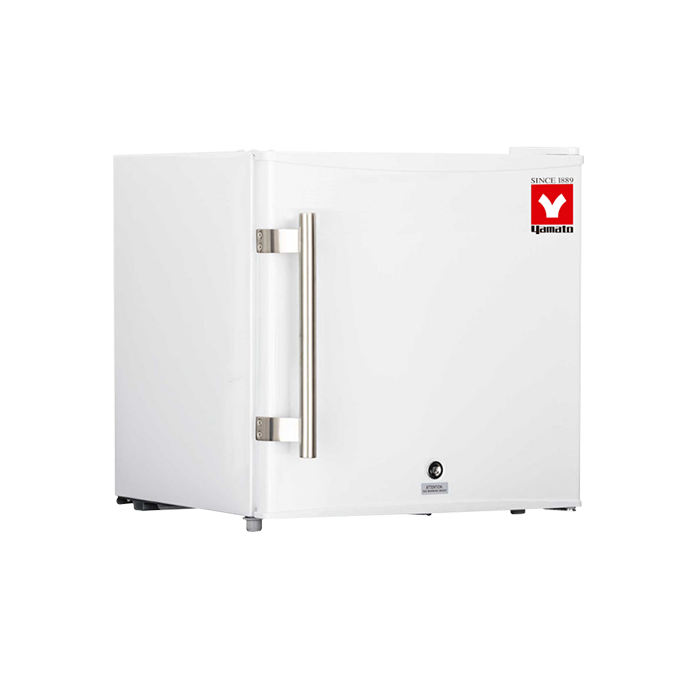

UCF000/UCF001/UCF101A/UCF101B- UCF Series Undercounter & Countertop Freezers – Yamato
$6,761.70 – $9,201.50
| Models | UCF000 | UCF001 | UCF101A | UCF101B | |
| Capacity | 42L / 1.5 cu.ft. | 70L / 2.5 cu.ft. | 113L / 4 cu.ft. | 113L / 4 cu.ft. 25 cu. ft |
|
| Door | Single solid, locking | ||||
| Temperature Range | -20°C / -4°F | 0°C to -20°C / +32°F ~ -4°F | 0°C to -30°C / +32°F to -22°F | -30°C to -40°C / -22°F to -40°F | |
| Temperature Control | Mechanical thermostat | Digital display with Hi/Low alarm, Alarm relay dry contacts | |||
| Alarm System | – | Emits an audible and visual signal when the temperature gets to hi or low. The alarm has an over and under temperature setting, alarm silencing switch, and dry contact relay. A relay for a remote alarm hook-up is also provided. |
|||
| Access Port | Probe access port 3/8″ | 1/2″ | 1/2″ | 1/2″ rear | |
| Shelves | 2 full | 2 adjustable, 1 full, 1 half | 3 adjustable | ||
| Insulation | High density urethane foam | Polyurethane foam | |||
| Refrigerant | R134a CFC-Free refrigerant | R600 | R600 | R290 | |
| Compressor | – | – | 1/3 hp | 1/4 hp | |
| Air Circulation | – | Forced air | Forced air | Forced air | |
| Defrost | Manual | Manual | Manual | Manual | |
| Exterior Construction | Painted white | Painted white | Painted white | Painted white | |
| Internal Dimension (WxDxH) | 14″ x 13.25″ x 14.5″ 35 x 33 x 36 mm |
17” x 15” x 17” 43 x 38 x 43 cm |
19.5” x 15.75” x 22” 50 x 40 x 56 cm |
20” x 19.5” x 24.25” 50 x 49 x 61 cm |
|
| External Dimensions (WxDxH) |
18.5” x 19.5” x 19.5” 46 x 49 x 49 cm |
20” x 21.5” x 25” 50 x 54 x 63 cm |
23.75” x 21.5” x 32” 60 x 64 x 84 cm |
24” x 24” x 33” 61 x 61 x 83 cm |
|
| Weight | 50 lbs. | 110 lbs. | 150 lbs. | 150 lbs. | |
| Voltage | 115 volts, 60 hertz, 1 phase | ||||
| Running Amps/Breaker | 1.1 amps, 310 BTUs/hr | 1.2 / 15 | 2 / 15 | 5 / 15 | |
| Supply Plug | – | 5-15P NEMA | 5-15P NEMA | 5-15P NEMA | |
| Optional Accessor | Chart recorder | Chart recorder | Chart recorder | Chart recorder | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Products | SLF-701SS (LABORATORY FREEZER -18ºC to -25ºC, 25 cu. ft. single solid door, Auto defrost, 115V), SLF-1301DS (LABORATORY FREEZER -18ºC to -25ºC, 49 cu. ft. two solid doors, Auto defrost, 115V) |
