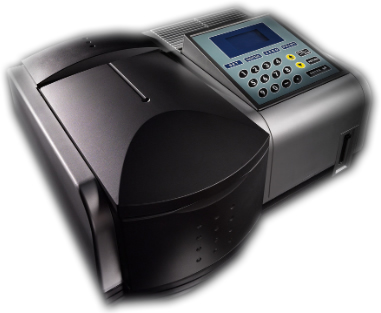

T6 Series UV-Vis Persee
Designed for accuracy and performance in a compact design the T6 Series of UV-Vis Spectrophotometers offer wavelength accuracy as low as +/- 1 nm combined with low stray light of less than 0.05%T.
$2,156.00 – $3,920.00
Designed for accuracy and performance in a compact design the T6 Series of UV-Vis Spectrophotometers offer wavelength accuracy as low as +/- 1 nm combined with low stray light of less than 0.05%T.
With a focus on reliability in a compact footprint, PERSEE’s entry level Spectrometers set a new bar for value and capability.
PERSEE delivers the capabilities required by customers in education, agricultural, environmental and food & beverage industries, all the options and services at such value that customers can get months of consumables or additional instrumentation within their budget without sacrificing performance.
Key Features
- High performance fixed 2nm spectral bandwidth
- Low stray light 0.05%T (T6U)
- Wavelength accuracy +/- 1nm (T6U)
- Supplied with either universal pathlength 5 cell changer or fixed path length 8 cell changer as standard
- Holographic blazed grating 1200lines/mm
- Local control software for photometric fixed wavelength measurement
- Easily upgraded to include quantitative analysis, multi wavelength spectrum & kinetics
- Built in cell holder storage
- Robust modular design with a small footprint
- Can be used with UV-WIN software (optional)
| Specifications | ||
| Optical system | Split beam | |
| Scan speed | Selectable | |
| Wavelength range | 190-1100 nm | |
| Wavelength accuracy | T6U: ±1 nm ; T6V: ±2 nm | |
| Wavelength reproducibility | T6U≤0.2 nm ; T6V≤0.4 nm | |
| Spectral bandwidth | 2 nm | |
| Photometric mode | Transmittance, Absorbance, Energy | |
| Photometric range | -0.3-3.0 Abs | |
| Photometric accuracy | 0.002 A (0-0.5 A), 0.004 A (0.5-1 A), 0.3 %T (0-100 %T) | |
| Photometric reproducibility | 00.001 A (0-0.5 A), 0.002 A (0.5-1 A), 0.15 %T (0-100 %T) | |
| Photometric noise | 0.001 A (500 nm, 30 min warm-up) | |
| Baseline flatness | 0.002 A (200-1000 nm) | |
| Baseline stability | 0.001 A/h (500 nm, 0 Abs, 2 hr warm-up) | |
| Stray light | T6U: ≤0.05 %T (220 nm NaI, 340 nm NaNO2) T6V: ≤0.10 %T (220 nm NaI, 340 nm NaNO2) |
|
| Standard functionality | Photometric Measurement (Quantitative, Multi-wavelength, Spectrum and Kinetic measurements with program cards) |
|
| Detector | Silicon photo diode | |
| Light source | Tungsten Halogen and Deuterium arc lamps | |
| Display | Digital LCD display | |
| Printer | Mini printer | |
| PC interface | RS232 | |
| Software support | Local and UV Win | |
| Power supply | Switch mode 95-250 VAC 50-60 Hz | |
| Weight | 37 lbs | |
| Dimension | 22 x 20 x 13 in | |
| MODEL | PART NO | DESCRIPTION |
| T6U | T6-1651F | Split beam UV-Vis Spectrometer, with 5 cell motorised holder (5-100mm), wavelength range 190-1100nm and 2nm fixed bandwidth. Operating Voltage 110-240V, 50/60Hz (Premium PC controlled software is optional) |
| (UV/Visible) | T6-1651E | Split beam UV-Vis Spectrometer, with 8 cell motorised holder (10mm), wavelength range 190-1100nm and 2nm fixed bandwidth. Operating Voltage 110-240V, 50/60Hz (Premium PC controlled software is optional) |
| T6V | T6-1611F | Split beam Vis Spectrometer, with 5 cell motorised holder (5-100mm), wavelength range 325-1100nm and 2nm fixed bandwidth. Operating Voltage 110V, 50/60Hz (Premium PC controlled software is optional) |
| (Visible) | T6-1611E | Split beam Vis Spectrometer, with 8 cell motorised holder (10mm), wavelength range 325-1100nm and 2nm fixed bandwidth. Operating Voltage 110V, 50/60Hz (Premium PC controlled software is optional) |
| Weight | 37 lbs |
|---|---|
| Dimensions | 22 × 20 × 13 in |
| Product | T6-1651F (Split beam UV-Vis Spectrometer, with 5 cell motorised holder (5-100mm)), T6-1651E (Split beam UV-Vis Spectrometer, with 8 cell motorised holder (10mm), T6-1611F (Split beam Vis Spectrometer, with 5 cell motorised holder (5-100mm), T6-1611E(Split beam Vis Spectrometer, with 8 cell motorised holder (10mm) |
