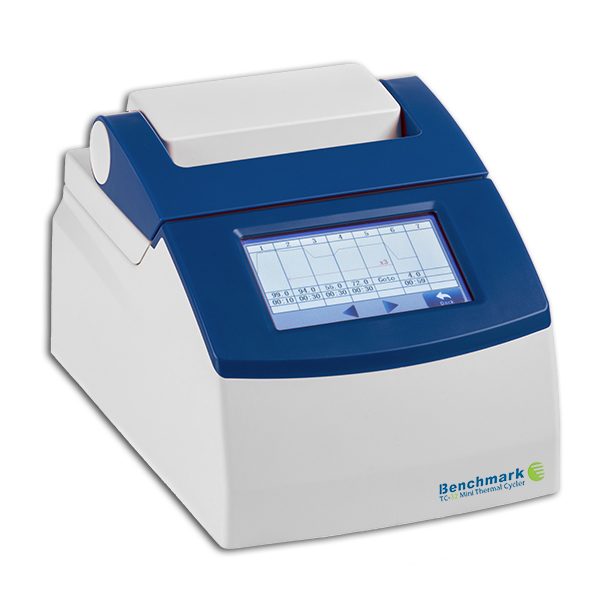

“Mini sized” doesn’t have to mean a sacrifice on features and performance. Benchmark’s
TC-32 Mini Thermal Cycler retains the advanced programming features, easy to use software
and fast, reliable cycling of the larger TC-9639 Thermal Cycler, but with a smaller block and
lower price point.
Designed for lower throughput needs, the TC-32 Mini Thermal Cycler has a capacity for
32×0.2ml tubes. The wells are arranged in a 4×8 format, allowing the block to accept strips
of 8 as well as individual tubes. The block heats and cools very quickly – at rates as fast as
5°C/second. A proprietary algorithm controls block temperature, bringing samples quickly to
the target temperature without any over- or under-shoot. Excellent block uniformity ensures
consistency sample to sample.

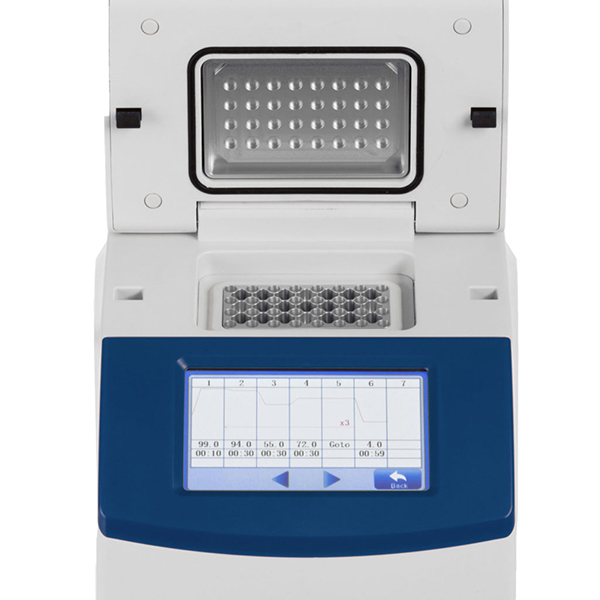

Operation of the thermal cycler is controlled from the large, full color, touch screen. Icon
driven menus allow users to get running quickly. Programming is extremely simple and
includes options for time and temperature increment/decrements, adjustable ramp rates,
and an auto pause and restart functions. More than 100 typical programs can be stored in
memory and easily recalled. After a run, samples can be held at 4°C. An on-screen report is
also available at the completion of a run.

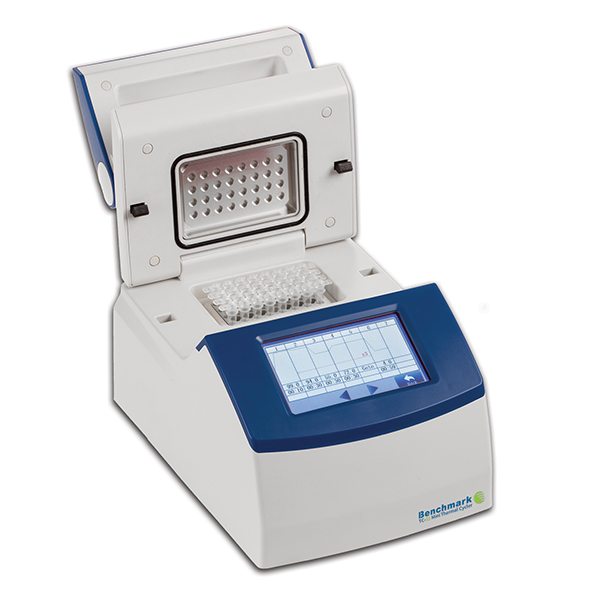

The heated lid is self adjusting – the spring loaded platen in the lid comes firmly into contact
with the tops of the tubes to prevent sample evaporation and condensation. There are no
knobs to turn or levers to adjust. The temperature of the heated lid can be changed or the
heating function of the lid may be turned off.
With a footprint less than that of the average laboratory notebook, the TC-32 Mini Thermal
Cycler will fit almost anywhere. Its reduced capacity block and economical price make
the TC-32 Mini Thermal Cycler the perfect choice for lower throughput laboratories and
educational facilities.
- “Mini” sized, 9 x 7 inch footprint
- Capacity for 32 x 0.2ml or 4 PCR Strips
- Intuitive touch screen control
- Program Wizard with familiar icon driven programming
- Optimize results with Accuris™ PCR reagents
| Technical specifications | |||||||
| Capacity: 0.2ml tubes | 32 | ||||||
| 8 x 0.2ml strips | 4 | ||||||
| Temp. Control Range | 0° to 99°C | ||||||
| Temp. Control | Simulated sample or block | ||||||
| Accuracy/Uniformity | ± 0.25°C / ± 0.25°C | ||||||
| Ramp Rate | Heating: 5°C/sec. (maximum) Cooling 4°C/sec. (maximum) | ||||||
| Lid Temp | 30°C to 112°C user adjustable | ||||||
| Program Memory | Over 100 typical programs | ||||||
| Increments/Decrements | Both time and temperature | ||||||
| Power Failure Restart | Yes | ||||||
| Power Supply | Universal 100 to 240V 50 to 60 Hz | ||||||
| Dimensions | 7.2 x 9.2 x 6.2 in. / 18.2 x 23.2 x 15.7cm | ||||||
| Weight | 6.4 lbs / 2.9kg | ||||||
| Weight | 6.4 lbs |
|---|---|
| Dimensions | 9.2 × 7.2 × 6.2 in |
