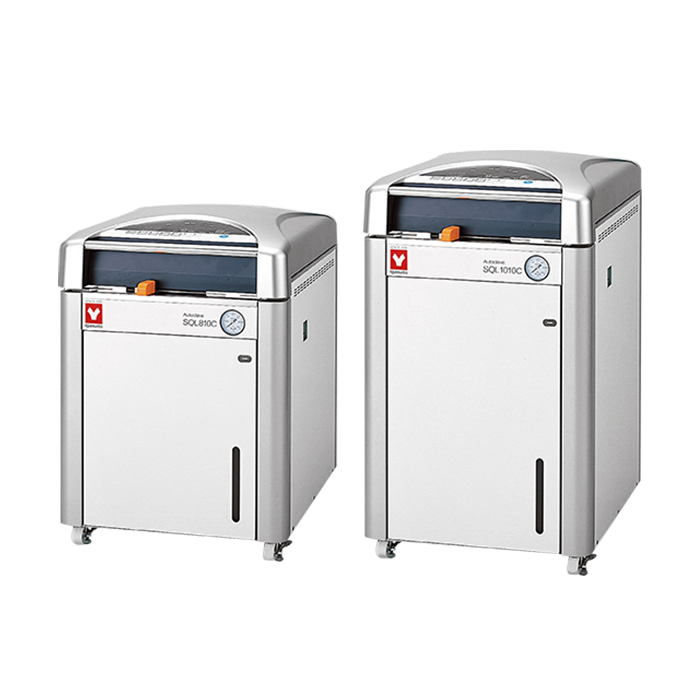

The top-loading SQL Series autoclaves is a collection of high capacity steam sterilizers that feature an advance cooling fan system which allows you to handle more load in less time. Built with high-performance & easy operation in mind, the Yamato SQL series is equipped with an automated high-pressure sterilization system and an operating temperature range that goes up to 135°C. The large capacity SQL steam sterilizer series takes your sterilization to the next level. Whether it involves simple sterilization processes to complex sterilization of culture mediums, and melting of culture mediums.
Each autoclave unit boasts of user-comfort thanks to its ergonomic, low height, top-loading design so you can load containers without the added strain. Operating steam sterilizers has never been easier & more comfortable. Custom programs can also be saved for repeated use with just a push of a button. Find top-quality in our SQL810C steam sterilizer and SQL1010C steam sterilizer models.
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Increased Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
Models | SQL810C | SQL1010C | |
System | Automatic high-pressure steam sterilization | ||
Operating Temperature Range | 45~135°C | ||
Max. Working Pressure | 0.255MPa | ||
Ambient Temperature | 5~35°C | ||
Lid | Manual upward opening with an interlock for safety | ||
Heater | 2000W x 2 units | ||
Exhaust Valve | One exhaust valve and one slow release valve | ||
Option Port | For sample sensor (1/4), recorder (1/4) and connection to pressure gauge (branched from the electromagnetic exhaust duct) | ||
Cooling Fan | Axial fan motor | ||
Temp. Controller | PID control by microprocessor | ||
Temp. Display / Setting | Digital display / digital setting by ▲▼ keys | ||
Timer / Timer Resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. | ||
Operation Mode | Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course | ||
Other Functions | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting | ||
Safety Device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) |
||
External Dimensions (WxDxH) | 680 x 760 x 997 mm WxDxH | 680 x 760 x 1154 mm WxDxH | |
Internal Dimensions Of Chamber | ø450 x D535 mm | ø450 x 692 mm | |
Internal Capacity | 85L | 110L | |
Weight | ~145kg | ~170kg | |
Power Source | AC220V 19A (no plug, round terminal) | AC220V 19A (no plug, round terminal) |
