Autoclave, Laboratory Equipment

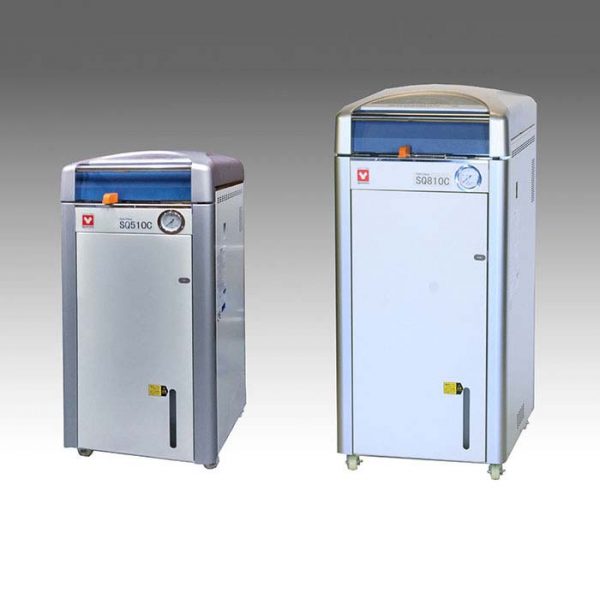

SQ500C/510C/810C Steam Sterilizer Yamato
High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples
$8,659.20 – $12,708.30
High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples.
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Increased Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
| Model | SQ500C SQ510C |
SQ810C | ||
| System | Automatic high-pressure steam sterilization | |||
| Operating Temp. Range | 45~135°C | |||
| Max. Working Pressure | 0.255MPa | |||
| Ambient Temperature | 5~35°C | |||
| Lid | Manual upward opening with an interlock for safety | |||
| Heater | 1000W x 2 units | |||
| Exhaust Valve | One exhaust valve and one slow release valve | |||
| Connection Ports For Optional Accessories | Total 3 ports. Female thread for sample temp. sensor (1/4″ ), Female thread for chamber temp. sensor (1/4″ ), Female thread pressure sensor (branching from the solenoid valve tubing) | |||
| Cooling Fan | Axial fan motor | |||
| Temp. Controller | PID control by microprocessor | |||

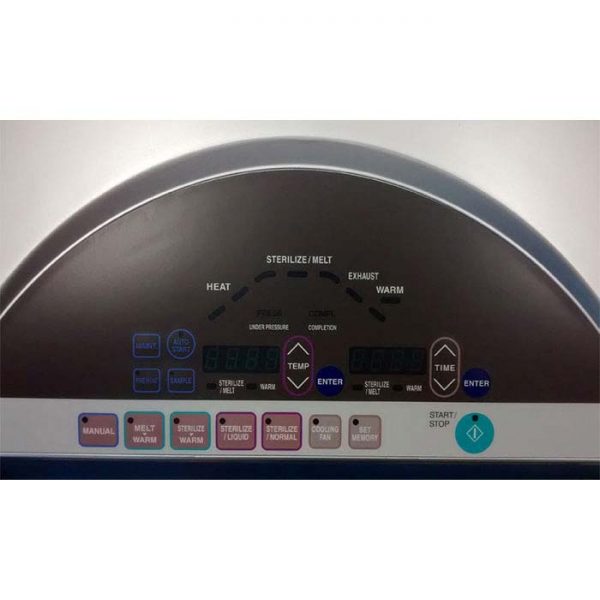

| Temp. Display / Setting | Digital display / digital setting by ▲▼ keys | |||
| Timer / Timer Resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. | |||
| Operation Mode | Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course | |||
| Other Functions | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting | |||
| Safety Device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) | |||
| External Dimensions | 520 x 660 x 881 mm WxDxH | 520 x 660 x 1161 mm WxDxH | ||
| Internal Dimensions Of Chamber | ø370 x D470 mm | ø370 x D750 mm | ||
| Internal Capacity | 50L | 80L | ||
| Power Source | AC100~120V (24.5~20.5A) (no plug, round terminal) AC200~240V (12.5~10.5A) (no plug, round terminal) |
AC200~240V (12.5~10.5A) (no plug, round terminal) | ||
| Weight | ~95kg | ~105kg | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SQ500C (Large Capacity Laboratory Use Sterilizer Without Dryer 50L 100-120V 20.5~24.5A 50/60hz), SQ510C (Large Capacity Laboratory Use Sterilizer Without Dryer 50L 200-240V 10.5~12.5A 50/60hz), SQ810C (Large Capacity Laboratory Use Sterilizer Without Dryer 80L 200-240V 10.5~12.5A 50/60hz) |
