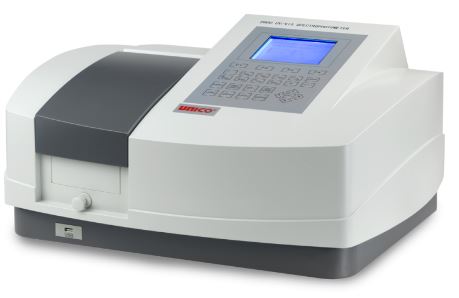

UNICO SQ-2800 is the most economic general-purpose design in the SpectroQuest line. It is a stand-alone model with 4nm fixed bandwidth and has all the features that the SpectroQuest line offers for a stand-alone unit. It provides excellent performance for measurements in the range of 190nm to 1100nm. It has a large angled LCD screen with contrast adjustment for comfort viewing. The large sample compartment accommodates a wide range of cell holders and accessories including peristaltic sipper and peltier system. Optional software make this instrument very versatile.
- UNICO SQ SERIES UV-VISIBLE SCANNING SPECTROPHOTOMETER
- STANDARD FUNCTIONS INCLUDE SCANNING KINETICS STANDARD CURVE AND MORE
- EXPANDED DIGITAL INTERFACE WITH INTERNAL MEMORY AND AUTO SYSTEM CHECK
- WAVELENGHT RANGE 190-1100NM
- 4NM SPECTRAL BANDWIDTH
- 4 PLACE HOLDER FOR 10 MM SQUARE CUVETTES
- USB PORT FOR OPTIONAL SOFTWARE
- INCLUDED ARE 2PCS OF 10MM SQUARE QUARTZ CUVETTES; 4 PCS OF 10MM SQUARE GLASS CUVETTES; DUST COVER; USER MANUAL
- VOLTAGE PRESET AT 110V
| Specifications | |
| Wavelength Range | 190 – 1100 nm |
| Spectral Bandwidth | 4 nm |
| Monochromator | Single beam Littrow type, grating 1200 lines/mm |
| Wavelength Accuracy | – |
| Dimensions | 550(L) x 420(W) x 270(H) mm |
| Weight | 20 kg / 44 lbs |
| Shipping Dimensions | 650(L) x 540(W) x 390(H) mm |
| Shipping Weight | 24 kg / 53 lbs |
| Weight | 53 lbs |
|---|---|
| Dimensions | 21.65 × 16.54 × 10.63 in |
| Product | M220FL (PLAIN STAGE WITH 0.65 CONDENSER), M220FLM (ATTACHED MECHANICAL STAGE WITH 0.65 CONDENSER) |
