Yamato Scientific’s SN Series Steam Sterilizers & Autoclaves are designed for high performance and easy operation. Each model features easy top-loading and sample handling. We provide a 32L and 47L sizes, making it easy for you to find the best top-loading steam sterilizer that suits your space.
Yamato’s SN high-pressure autoclaves are built with a dedicated top-notch cooling fan for faster cool down times. It is also topped off with an intuitive timer & pre-heating program, which allows you to heat up the chamber before sterilization to reduce the duration of cycle times & formation of condensation. Combined, these features provide you with more enhanced drying results & a more efficient use of your time. The SN series top-loading autoclaves are also engineered with safety features such as lid interlock mechanism, drain bottle unset alarm, memory malfunction, and self diagnostic functions.
Operation and functions
The Yamato SN series standard steam sterilizers are top-of-the-class systems built to deliver reliable performance like no other. Check out the top-loading SN300C steam sterilizer, SN310C steam sterilizer, SN500C steam sterilizer & SN510C steam sterilizer here at Yamato.
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions

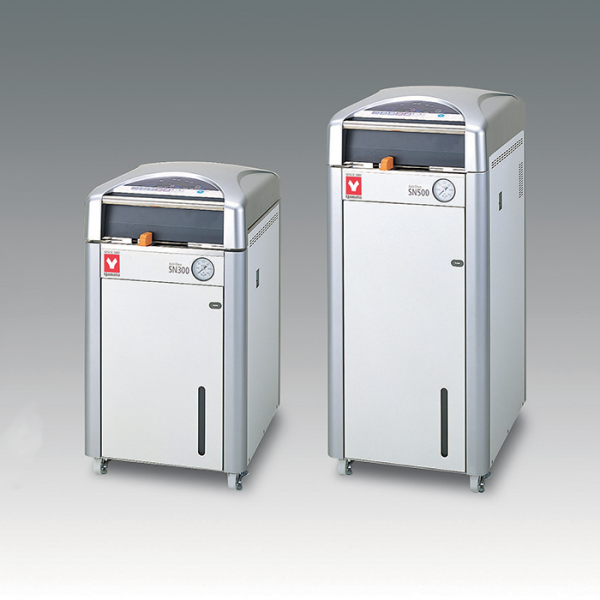

Models | SN300C SN310C |
SN500C SN510C |
|
System | Automatic high-pressure steam sterilization | ||
Operating Temperature Range | 45~135°C | ||
Max. Working Pressure | 0.255MPa | ||
Ambient Temperature | 5~35°C | ||
Lid | Manual upward opening with an interlock for safety | ||
Heater | 100V, 800W x 2 units | 100V, 950W x 2 units | |
Exhaust Valve | One exhaust valve and one slow release valve | ||

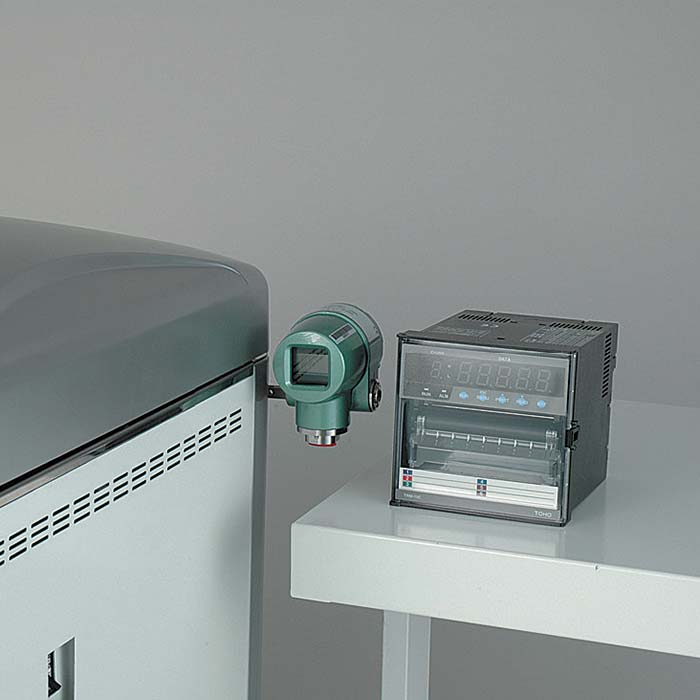

Connection Ports For Optional Accessories | Total 3 ports. Female thread for sample temp. sensor (1/4″ ), Female thread for chamber temp. sensor (1/4″ ), Female thread pressure sensor (branching from the solenoid valve tubing) | ||
Cooling Fan | Axial fan motor | ||
Temp. Controller | PID control by microprocessor | ||
Temp. Display / Setting | Digital display / digital setting by ▲▼ keys | ||
Timer / Timer Resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. | ||
Operation Mode | Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course | ||
Other Functions | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting | ||
Safety Device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) | ||
External Dimensions (WxDxH) | 460 x 590 x 848 mm | 460 x 590 x 1068 mm | |

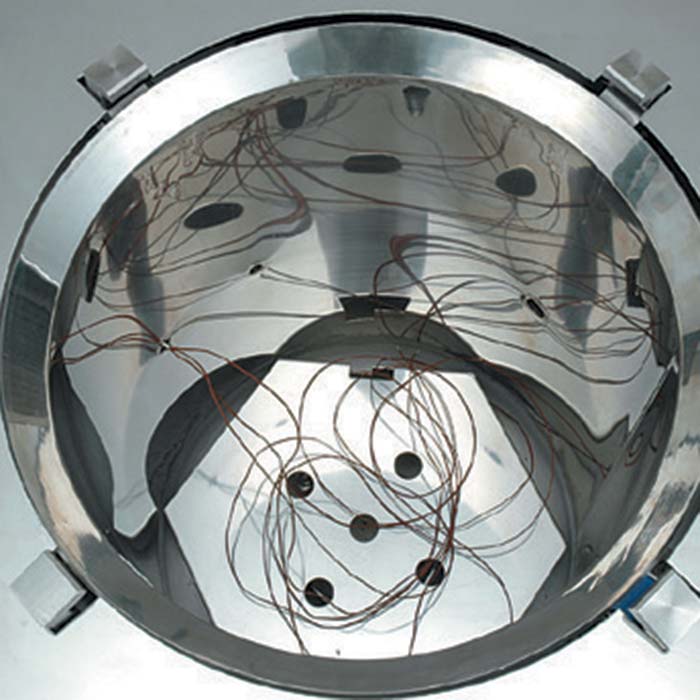

Internal Dimensions Of Chamber | ø300 x D445 mm | ø300 x D665 mm | |
Internal Capacity | 32L | 47L | |
Weight | ~75kg | ~85kg | |
Power Source | AC100~120V (15~12.5A) (no plug, round terminal) AC200~240V (10~8.5A) (no plug, round terminal) |
AC100~120V (23.5~19.5A) (no plug, round terminal) AC200~240V (12~10A) (no plug, round terminal) |
