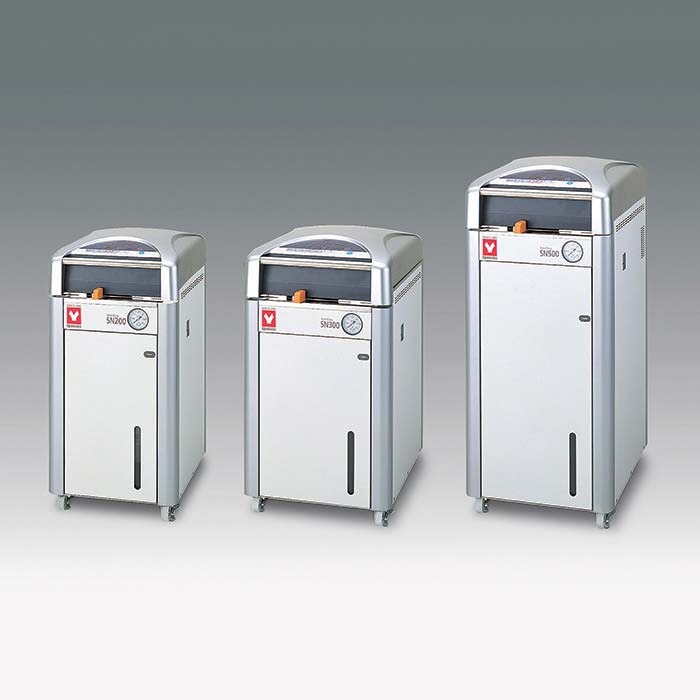

SN200/210/300C/310C/500C/510C Steam Sterilizer Yamato
High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples
$3,983.10 – $8,110.30
High performance, easy operation and ergonomically designed sterilizers featuring easy top loading and handling of samples.
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and melting of culture mediums
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Safety Features
- Lid interlock mechanism

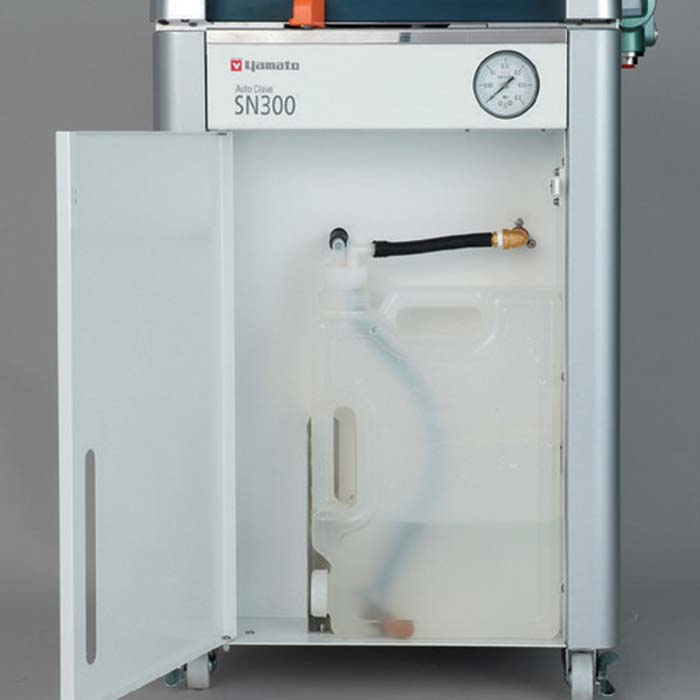

- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
| Model | SN200 SN210 |
SN300C SN310C |
SN500C SN510C |
||
| System | Automatic high-pressure steam sterilization | ||||
| Operating Temperature Range | 45~135°C | ||||
| Max. Working Pressure | 0.255MPa | ||||
| Ambient Temperature | 5~35°C | ||||

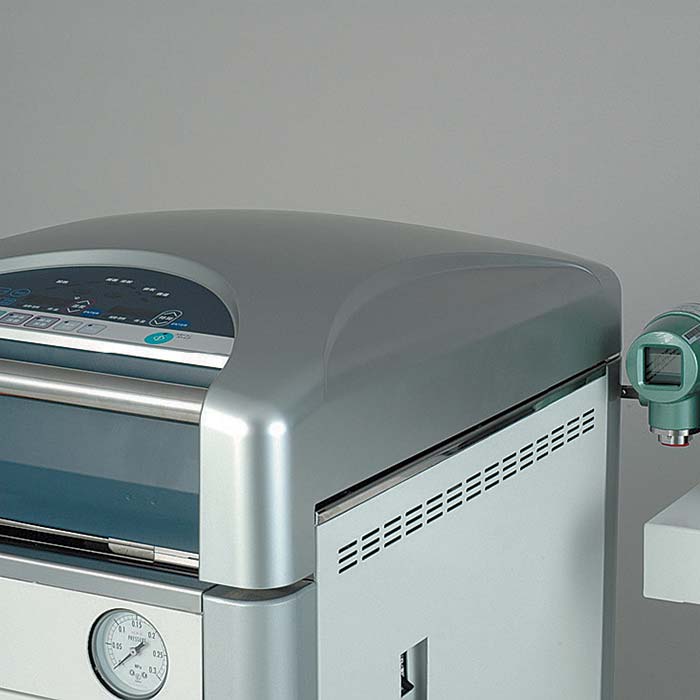

| Lid | Manual upward opening with an interlock for safety | ||||
| Heater | 100V, 600W x 2 units | 100V, 800W x 2 units | 100V, 950W x 2 unitss | ||
| Exhaust Valve | One exhaust valve and one slow release valve | ||||

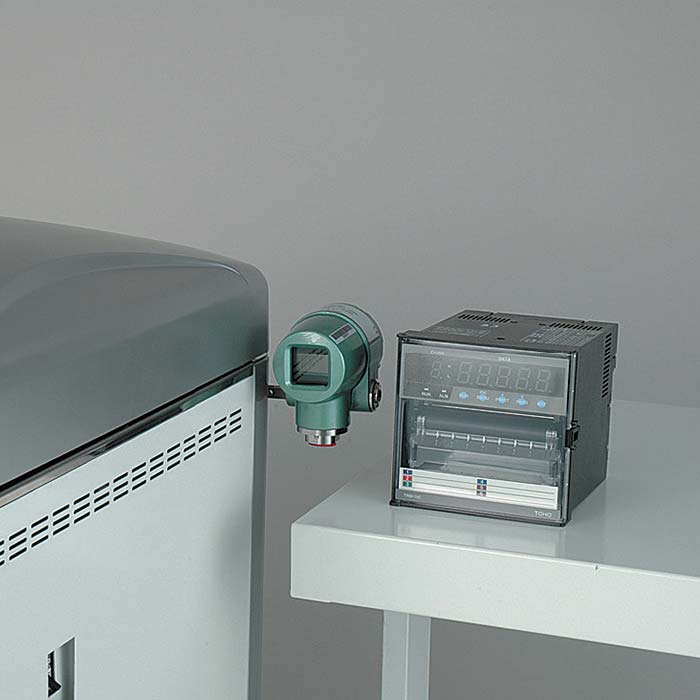

| Connection Ports For Optional Accessories | Total 3 ports. Female thread for sample temp. sensor (1/4″ ), Female thread for chamber temp. sensor (1/4″ ), Female thread pressure sensor (branching from the solenoid valve tubing) | ||||
| Cooling Fan | Axial fan motor | ||||
| Temp. Controller | PID control by microprocessor | ||||

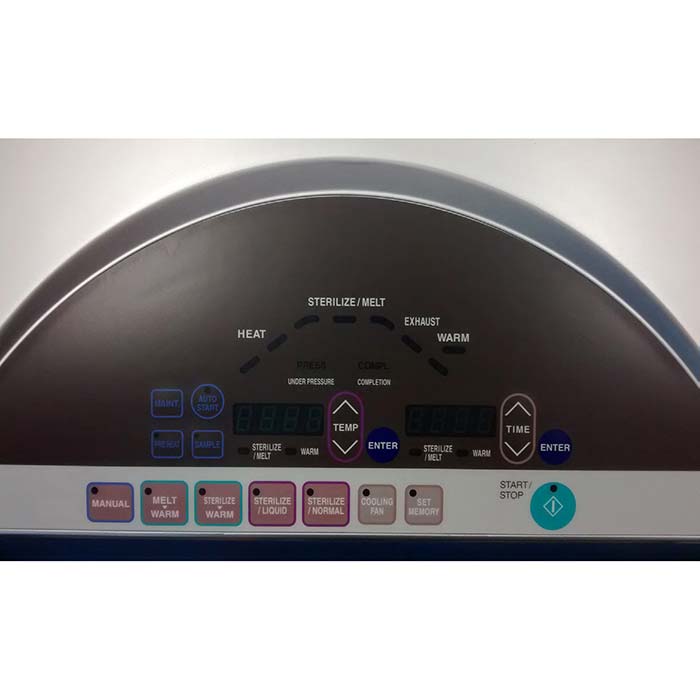

| Temp. Display / Setting | Digital display / digital setting by ▲▼ keys | ||||
| Timer / Timer Resolution | 0 or 1 min. to 99 hrs 59 min. / 1 min. | ||||
| Operation Mode | Instrument sterilization course, liquid sterilization course, sterilization and kee | ||||
| Other Functions | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting | ||||
| Safety Device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) | ||||
| External Dimensions (WxDxH) | 400 x 530 x 848 mm | 460 x 590 x 848 mm | 460 x 590 x 1068 mm | ||

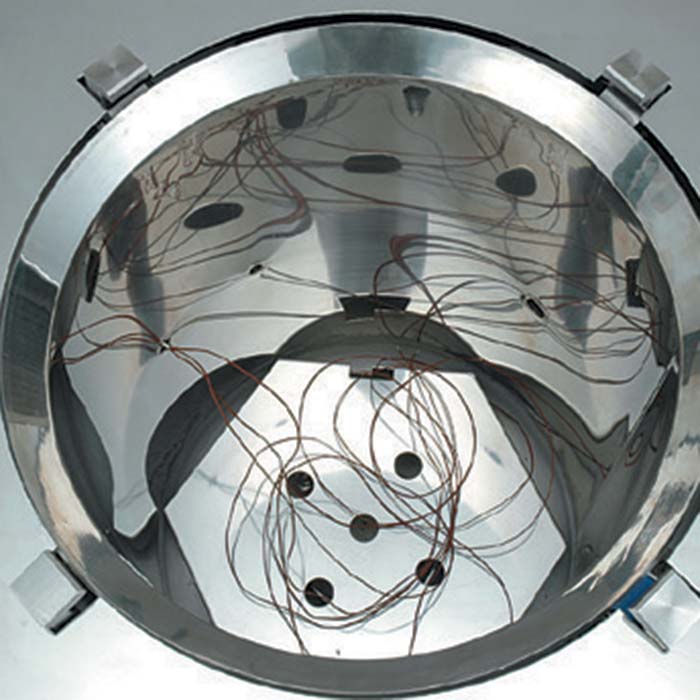

| Internal Dimensions Of Chamber | ø240 x D445 mm | ø300 x D445 mm | ø300 x D665 mm | ||
| Internal Capacity | 20L | 32L | 47L | ||
| Power Source | AC100~120V (15~12.5A) (with plug) AC200~240V (7.5~6.5A) (no plug, round terminal) |
AC100~120V (15~12.5A) (no plug, round terminal) AC200~240V (10~8.5A) (no plug, round terminal) |
AC100~120V (23.5~19.5A) (no plug, round terminal) AC200~240V (12~10A) (no plug, round terminal) |
||
| Weight | ~65kg | ~75kg | ~85kg | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SN200 (Standard Laboratory Use Sterilizer Without Dryer 20L 100-120V 12.5~15A 50/60hz), SN210 (Standard Laboratory Use Sterilizer Without Dryer 20L 200-240V 6.5~7.5A 50/60hz), SN300C (Standard Laboratory Use Sterilizer Without Dryer 32L 100-120V 12.5~15A 50/60hz), SN310C (Standard Laboratory Use Sterilizer Without Dryer 32L 100-120V 12.5~15A 50/60hz), SN500C (Standard Laboratory Use Sterilizer Without Dryer 47L 100-120V 19.5~23.5A 50/60hz), SN510C (Standard Laboratory Use Sterilizer Without Dryer 47L 200-220V 10~12A 50/60hz) |
