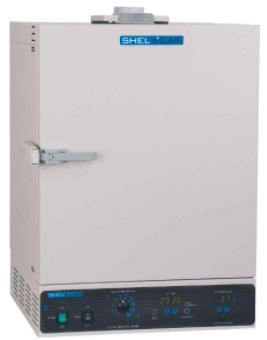

SMO1 /SMO3/SMO5- SMO Series SHEL LAB Mechanical Convection Laboratory Ovens – Shellab
SHEL LAB SMO Series ovens are available in 110-120V, 50/60Hz or
220-240V, 50/60Hz configurations and achieve temperatures up to
306°C with fast ramp-up and recovery times.
$3,330.00 – $4,679.00
High Temperature PerformanceSHEL LAB SMO Series ovens are available in 110-120V, 50/60Hz or 220-240V, 50/60Hz configurations and achieve temperatures up to 306°C with fast ramp-up and recovery times.
Heat-Up Rapid heat-up times to 306°C depend on voltage selected.
Published heat-up performance is based on a standard cabinet under controlled testing at a 20°C ambient temperature, line voltage ±10% of specified voltage.
Recovery Upper vents are closed when recovery times following door openings are tested. Published recovery performance is based on a standard cabinet under controlled testing at a (22 ± 3)°C ambient
temperature, line voltage ±10% of specified voltage.
| SCO CO2 Incubators Water Jacketed Series Specification Chart | ||||
| SMO1 | SMO3 | SMO5 | ||
| Interior Volume, Nominal | 1.4 cu.ft. (39.4 liters) | 3 cu.ft. (85.0 liters) | 4.9 cu.ft. (138.0 liters) | |
| Interior Dimensions W x D x H | 12.1″ x 13.7″ x 14.5″ 307 x 349 x 368 mm |
16.5″ x 19.5″ x 16.2″ 419 x 495 x 412 mm |
21.0″ x 19.4″ x 20.7″ 533 x 494 x 527 mm |
|
| Exterior Dimensions(w x d x h) | 22.7″ x 23.5″ x 31.5″ 577 x 596 x 800 mm |
26.9″ x 28.6″ x 34.0″ 684 x 727 x 840 mm |
31.4″ x 28.1″ x 38.8″ 798 x 714 x 986 mm |
|
| Interior Construction | 430 series stainless steel | 430 series stainless steel | 430 series stainless steel | |
| Exterior Construction | Painted Cold Roll Steel | Painted Cold Roll Steel | Painted Cold Roll Steel | |
| Shelves (See Accessories)* | 2 standard, 6 total | 2 standard, 7 total | 2 standard, 9 total | |
| Maximum Weight Per Shelf* | 50 lb / 22.6 kg | 50 lb / 22.6 kg | 50 lb / 22.6 kg | |
| Permitted Total Load | 100 lb / 45.3 kg | 200 lb / 91 kg | 200 lb / 91 kg | |
| Order Model Number, Voltage Specific | SMO1 | SMO3 | SMO5 | ||||
| SMO1 | SMO1-2 | SMO3 | SMO3-2 | SMO5 | SMO5-2 | ||
| Electrical, 50/60Hz, AC, 1Ø | |||||||
| Voltage | 110V-120V | 220V-240V | 110V-120V | 220V-240V | 110V-120V | 220V-240V | |
| Full Load Amps | 12 | 8 | 14 | 10 | 14 | 10 | |
| Nominal Power (watts @150°C) | 650 | 650 | 675 | 675 | 700 | 725 | |
| Plug Supplied | NEMA5-20P | EU1-16P | NEMA5-20P | EU1-16P | NEMA5-20P | EU1-16P | |
| Energy Consumption (kWh/day) | |||||||
| At 80°C | 6.5 | 5.7 | 7.2 | 6.5 | 7.5 | 6.7 | |
| At 150°C | 12.4 | 11.8 | 13.1 | 12.2 | 13.5 | 12.7 | |
| At 306°C | 19.8 | 18.8 | 23.5 | 22.1 | 23.8 | 22.7 | |
| Temperature Range 20°C above ambient to 306°C | |||||||
| Heat-Up to Ambient — Minutes to 80°C | 8 | 8 | 6 | 6 | 9 | 6 | |
| Heat-Up to Ambient — Minutes to 150°C | 20 | 20 | 27 | 15 | 28 | 28 | |
| Heat-Up to °C Ambient — Minutes to 306°C | 52 | 52 | 124 | 57 | 130 | 80 | |
| Recovery after Door Opening (30 sec.) — Minutes to 80°C | 1.5 | 2.5 | 1.5 | 1 | 2 | 2 | |
| Recovery after Door Opening (30 sec.) — Minutes to 150°C | 4.5 | 3.5 | 2 | 1.5 | 4 | 3 | |
| Recovery after Door Opening (30 sec.) — Minutes to 306°C | 14 | 7 | 18 | 5.5 | 45 | 20 | |
| Recovery after Door Opening (60 sec.) — Minutes to 80°C | 4 | 3 | 2 | 2 | 3.5 | 3 | |
| Recovery after Door Opening (60 sec.) — Minutes to 150°C | 6 | 4.5 | 4.5 | 3.5 | 6 | 5.5 | |
| Recovery after Door Opening (60 sec.) — Minutes to 306°C | 20 | 9 | 36 | 11 | 57 | 26 | |
| Temperature Uniformity | |||||||
| At 80°C | 1.00°C | 0.75°C | 1.00°C | 0.75°C | 0.75°C | 0.75°C | |
| At 150°C | 2.30°C | 1.80°C | 1.80°C | 2.50°C | 1.80°C | 1.50°C | |
| At 306°C | 4.70°C | 4.00°C | 5.00°C | 5.00°C | 4.50°C | 3.50°C | |
| Ventilation | |||||||
| Air Changes Per Hr at Max | 330 | 330 | 225 | 225 | 180 | 180 | |
| Max CFM | 5.5 | 5.6 | 11.3 | 11.3 | 15.2 | 15.2 | |
| Velocity | 125 | 125 | 140 | 140 | 145 | 145 | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SMO1 (100-120V ), SMO1-2 (220-230V), SMO3 (110-120V ), SMO3-2 (220-230V), SM05 (110-120V ), SM05-2 (220-230V) |
