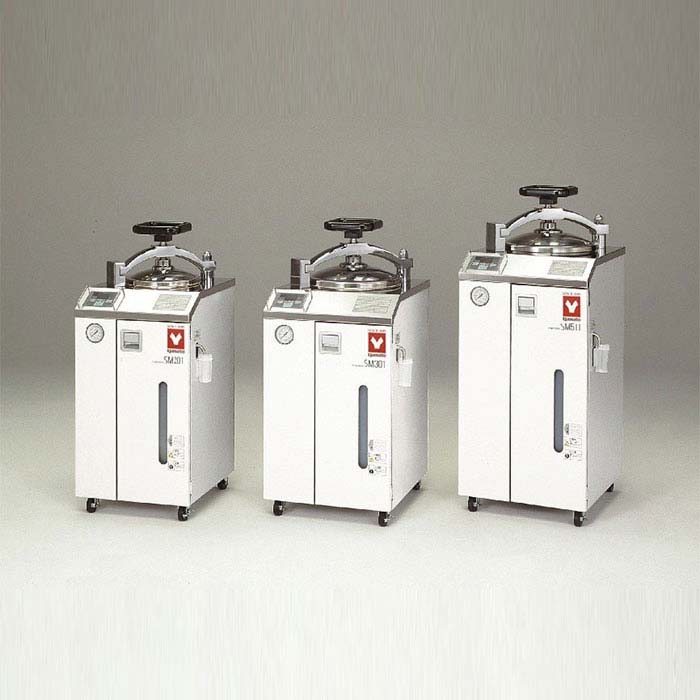

Yamato’s SM series steam sterilizers is the highest performing standard lab autoclave that utilizes superior dryer technology for quick sample drying. This feature makes samples ready to use right after sterilization for a more seamless & efficient workflow experience. The SM steam sterilizers with dryers enable automatic high-pressure steam sterilization of up to 128°C operating temperature. The SM standard steam sterilizers with dryer are offered in 20L, 32L, and 47L loading capacities.
Furthermore, the Yamato SM standard sterilizer series enables easy setting of drying temperatures according to sample material, quantity and more. All controlled in the digital display designed with green LED for a more responsive, comfortable, and intuitive experience. The SM standard autoclaves with dryer are also equipped with self-diagnostic features, making operation safer and error recovery quicker. Upgrade your steam sterilization process with powerful, easy-to-use standard steam sterilizers for lab use including the SM201 steam sterilizer, SM211 steam sterilizer, SM301 steam sterilizer, SM311 steam sterilizer, SM501 steam sterilizer, and SM511 steam sterilizer.
Operation and functions
- Automatic operations from sterilization to drying carried out with an interactive key input system
- Quick sample drying capability makes samples ready to use right after sterilization
- Drying temperature can be set according to sample material, quantity, etc.
- Timer range from 1~999 hours

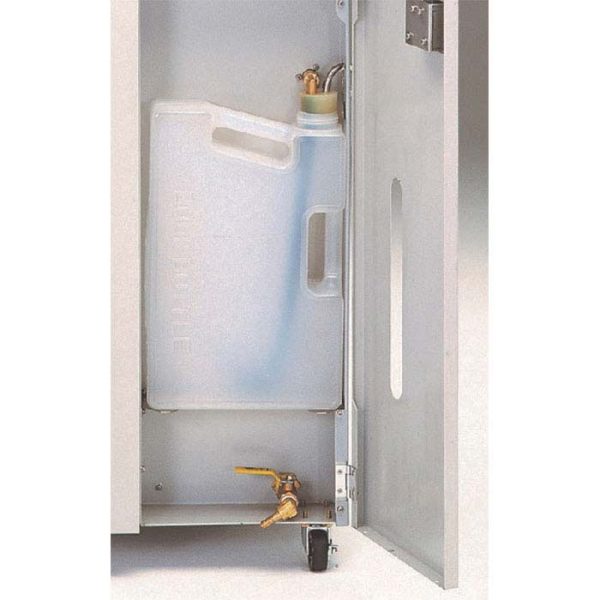

- Drain bottle water level can be quickly confirmed on the front panel level indicator
- Drain valve located in front for easy access

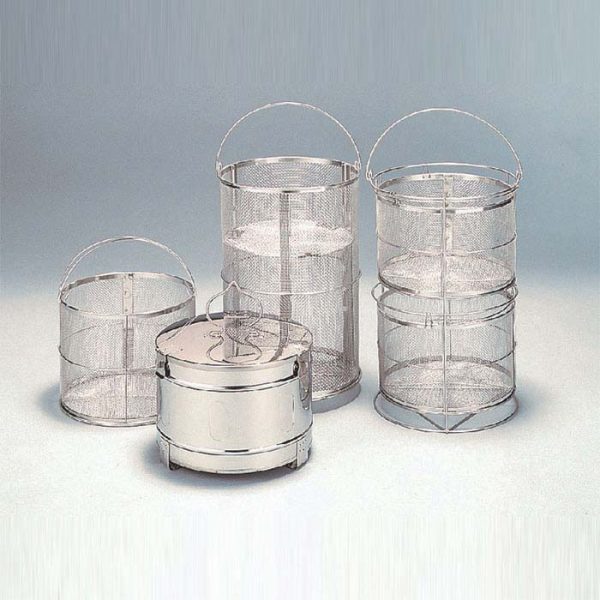

- Absence of protrusions in sterilization chamber makes insertion & removal of baskets, and other items quick and easy
- Self-diagnostic functions make operation safer and error recovery quicker

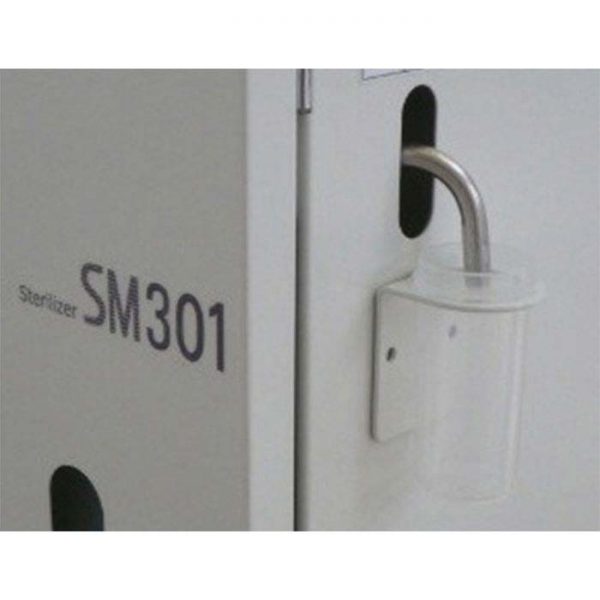

- Condensation collector neutralizes high temperature exhaust steam safely
Models | SM201 SM211 |
SM301 SM311 |
SM501 SM511 |
|
System | Automatic high pressure steam sterilization | |||
Operating Temperature Sterilization | 105 to 123°C | 105 to 128°C | 105 to 128°C | |
Operating Temperature Drying | 150 to 180°C | |||
Maximum Pressure Capacity | 0.18MPa | 0.2MPa | 0.2MPa | |
Interior | Stainless steel | |||
Heater Sterilization | 1.3kW | 1.7kW | 1.7kW (SM501) 2.0kW (SM511) |
|
Heater Drying | 1.0kW | 1.5kW | 1.5kW | |
Temp. Controller | PID control by microprocessor | |||

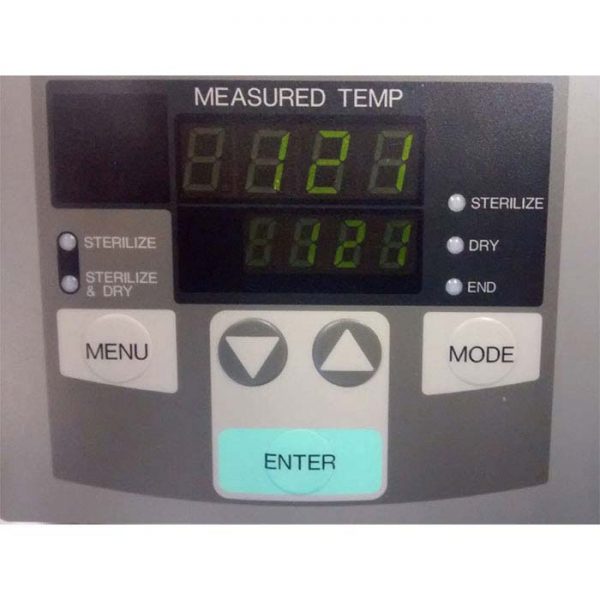

Temp. Display | Digital display by green LED and setting via ▲▼ keys | |||
Timer / Timer Resolution | 1 min. ~ 99 hrs. and 59 min. 100~ 999 hrs. / 1 min. or 1 hr. | |||
Safety Device | Self-diagnostic functions (detection sensor error, SSR short circuit, heater disconnect, faulty main relay, dry operation), safety valve, electric leakage breaker, drain bottle set-fail switch | |||
Internal Dimensions | ⌀240 x D445 mm | ⌀300 x D445 mm | ⌀300 x D665 mm | |
External Dimensions WxDxH | 410 x 470 x 957 mm | 440 x 530 x 968 mm | 440 x 530 x 1088 mm | |
Internal Capacity | 20L | 32L | 47L | |
Power Source (50/60Hz Single Phase) | AC115V 13A (with plug) AC220V 7A (no plug, round terminal) |
AC115V 15A (no plug, round terminal) AC220V 9.5A (no plug, round terminal) |
AC115V 15A (no plug, round terminal) AC220V 9.5A (no plug, round terminal) |
|
Weight | ~65kg | ~80kg | ~85kg |
