CO2 Incubator, Incubators, Laboratory Equipment

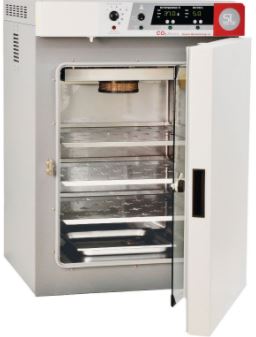

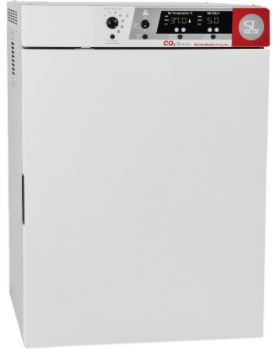

SCO5A/SCO10A- SCO Series – Air Jacketed Units – Shellab
Extensive use of copper in the CO2 sample port, humidity reservoir, heated CO2 feed line, and housing of the patented HEPA filtration system adds reassurance that foreign microbes will not affect test results.
$7,653.00 – $15,308.00
Contamination ControlExtensive use of copper in the CO2 sample port, humidity reservoir, heated CO2 feed line, and housing of the patented HEPA filtration system adds reassurance that foreign microbes will not affect test results. Cleanup is a breeze with the all stainless steel chamber, coved corners, and autoclavable door gasket. Optional copper shelves are available for even more contamination control.
| SCO Air Jacketed CO2 Incubators Specification Chart | |||
| SCO5A | SCO10A | ||
| Interior Volume, Nominal | 5 cu.ft. (142 liters) | 10 cu.ft. (285 liters) | |
| Interior Dimensions W x D x H | 20.5″ x 19.7″ x 21.5″ 521 x 500 x 546 mm |
20.5″ x 19.7″ x 21.5″ 521 x 500 x 546 mm |
|
| Exterior Dimensions(w x d x h) | 27.3″ x 28.5″ x 37.8″ 693 x 724 x 960 mm |
27.3″ x 28.5″ x 75.5″ 693 x 724 x 1917 mm |
|
| Interior Construction | 300 series stainless steel |
300 series stainless steel |
|
| Exterior Construction | 20 gauge steel, powder coated |
20 gauge steel, powder coated |
|
| Shelves (See Accessories)* | 3 standard, 8 total | 3 standard, 16 total | |
| Maximum Weight Per Shelf* | 35 lb / 15.8 kg | 35 lb / 15.8 kg | |
| Permitted Total Load | 105 lb / 47.6kg | 105 lb / 47.6kg per unit | |
| Order Model Number, Voltage Specific | SCO5A | SCO10A | |||||
| SCO5A | SCO5A-2 | SCO10A | SCO10A-2 | ||||
| Electrical, 50/60Hz, AC, 1Ø | |||||||
| Voltage | 110V-120V | 220V-240V | 110V-120V | 220V-240V | |||
| Full Load Amps | 6.0 | 3.0 | 12.0 | 6.0 | |||
| Nominal Power (watts @37°C) | 105 | 95 | 210 | 190 | |||
| Recommended Breaker, Amps | 15 | 16 | 15 | 16 | |||
| Plug Supplied | NEMA5-15P | EU6-10P | NEMA5-15P | EU6-10P | |||
| CO2 Range | 1-20% | 1-20% | 1-20% | 1-20% | |||
| Recovery CO2 at 5%* | < 5 min. | < 5 min. | < 5 min. | < 5 min. | |||
| Sensor Type | Infrared | Infrared | Infrared | Infrared | |||
| Temperature Uniformity | |||||||
| At 37°C | ± 0.25°C | ± 0.25°C | ± 0.25°C | ± 0.25°C | |||
| Temperature Recovery 37°C** |
|||||||
| Recovery to 37°C after 30 sec. Door Opening | 2.0 min. | 2.0 min. | 2.0 min. | 2.0 min. | |||
| Temperature Range |
|||||||
| Temperature Range | ✓ | ✓ | ✓ | ✓ | |||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | SCO5A (100-120V ), SCO5A-2 (220-230V), SCO10A (110-120V ), SCO10A-2 (220-230V) |
