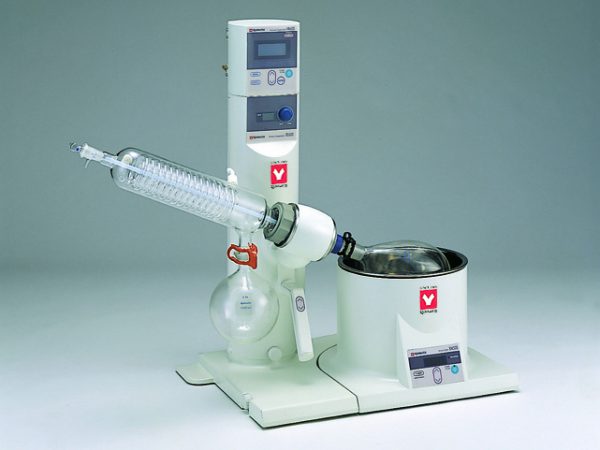

Highly functional type, Standard equipped with motorized lift, vacuum regulator, vapor temperature display functions
Features
- One touch electric lift for easy up and down movement.
- Digital setting and display for motor speed (rpm), vacuum and vapor temperature.
- Stable rotation at low and high speeds.
- Unique durable vacuum seal suitable up to 2L flasks.
- One touch operation for displaying and saving operating conditions.
- Equipped with lift-up switch in the event of power outage.
- Compact, fits into any fume hood.
- Universal power supply: works with 100-240VAC.
- Automatic distillation
- Continuous bath control
- Data on 53 solvents installed as default
| Specifications | ||
| Item Code | 255440 | |
| Model | RE801A-W | |
| Motor | DC brushless motor (for rotation) | |
| Controller | Vacuum regulator VR800 | |
| Lift stroke | 130ｍｍ | |
| Setting range of vacuum | 0 to 981hPa | |
| Measurable range of vacuum | 0 to 1033hPa | |
| Resolution of vacuum | 1hPa | |
| Setting range of hysteresis | 1 to 50hPa | |
| Resolution of vapor temperature indicator | Selectable (either 1°C or 0.1°C) | |
| Readout of cooling water temperature | Depending on indicator (option) | |
| Resolution of cooling water temperature indicator | 1°C or 0.1°C | |
| Operation modes | Free, fixed temperature, fixed temperature timer, descending, and descending timer, auto I (auto operation with continuous drying), and auto II (auto operation for distillation of single solvent) | |
| Setting range of timer | 1-999 minutes in increments/decrements of 1 minute for preset operations, 1-99 minutes for descending timer operations | |
| Memory | 10 programs for each operation | |
| Data operation | 53 kinds of solvent data | |
| Speed (rpm) setting | Rotation: Control knob Vacuum adjustment: Key pad | |
| Safety measures (drive unit) | Circuit breaker, rotor for overload protection, manual adjustment of lift’s lower limit, lift-up switch during power outage | |
| Safety measures (vacuum regulator) | Self-diagnostic functions, main unit / bath synchronized stop at malfunction, error display | |
| Synchronized control feature | Selection of automatic bath stop or automatic insulation | |
| Lifting feature | One-touch motorized lift system | |
| External dimensions（W×D×H mm） | 828×400×727mm | |
| Remarks(dimensions) | When glass set A is installed. Lift-up time: 857 mm | |
| Power Source | AC100 to 240V 1.5A | |
| Weight | 15kg | |
| Remarks(weight) | Excluding glass · water bath / oil bath | |
| Weight | 33.07 lbs |
|---|---|
| Dimensions | 15.75 × 32.6 × 28.62 in |
