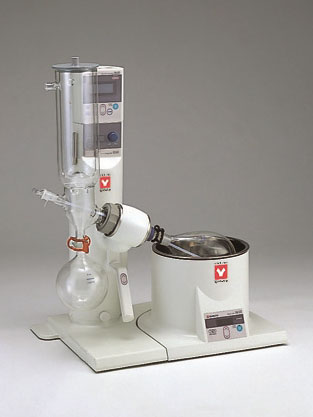

RE601C-W – Rotary EvaporatorRE601C-W – Yamato


Compare

$7,359.00

Highly functional type, Standard equipped with motorized lift, vacuum regulator, vapor temperature display functions

Features

  • One touch electric lift for easy up and down movement.
  • Digital setting and display for motor speed (rpm), vacuum and vapor temperature.
  • Stable rotation at low and high speeds.
  • Unique durable vacuum seal suitable up to 2L flasks.
  • One touch operation for displaying and saving operating conditions.
  • Equipped with lift-up switch in the event of power outage.
  • Compact, fits into any fume hood.
  • Universal power supply: works with 100-240VAC.
Specifications
Item Code 255432
Model RE601C-W
Motor DC brushless motor (for rotation)
Controller Vacuum regulator VR600
Lift stroke 130mm
Setting range of vacuum 0 to 981hPa
Measurable range of vacuum 0 to 1033hPa
Resolution of vacuum 1hPa
Setting range of hysteresis 1 to 50hPa
Resolution of vapor temperature indicator Selectable (either 1°C or 0.1°C)
Readout of cooling water temperature Depending on indicator (option)
Resolution of cooling water temperature indicator 1°C or 0.1°C
Operation modes Free, fixed temperature, fixed temperature timer, descending, and descending timer
Setting range of timer 1-999 minutes in increments/decrements of 1 minute for preset operations, 1-99 minutes for descending timer operations
Memory 10 programs for each operation
Data operation N/A
Speed (rpm) setting Rotation: Control knob Vacuum adjustment: Key pad
Safety measures (drive unit) Circuit breaker, rotor for overload protection, manual adjustment of lift’s lower limit, lift-up switch during power outage
Safety measures (vacuum regulator) Self-diagnostic functions, main unit / bath synchronized stop at malfunction, error display
Synchronized control feature Selection of automatic bath stop or automatic insulation
Lifting feature One-touch motorized lift system
External dimensions(W×D×H mm) 643×400×727mm
Remarks(dimensions) When glass set B is installed. Lift-up time: 857 mm
Power Source AC100 to 240V 1.5A
Weight 15kg
Remarks(weight) Excluding glass · water bath / oil bath
SKU: RE601C-W Category: Tag: Brand:
Weight 33.07 lbs
Dimensions 15.75 × 25.32 × 28.62 in
