Basic with motorized lift and digital setting

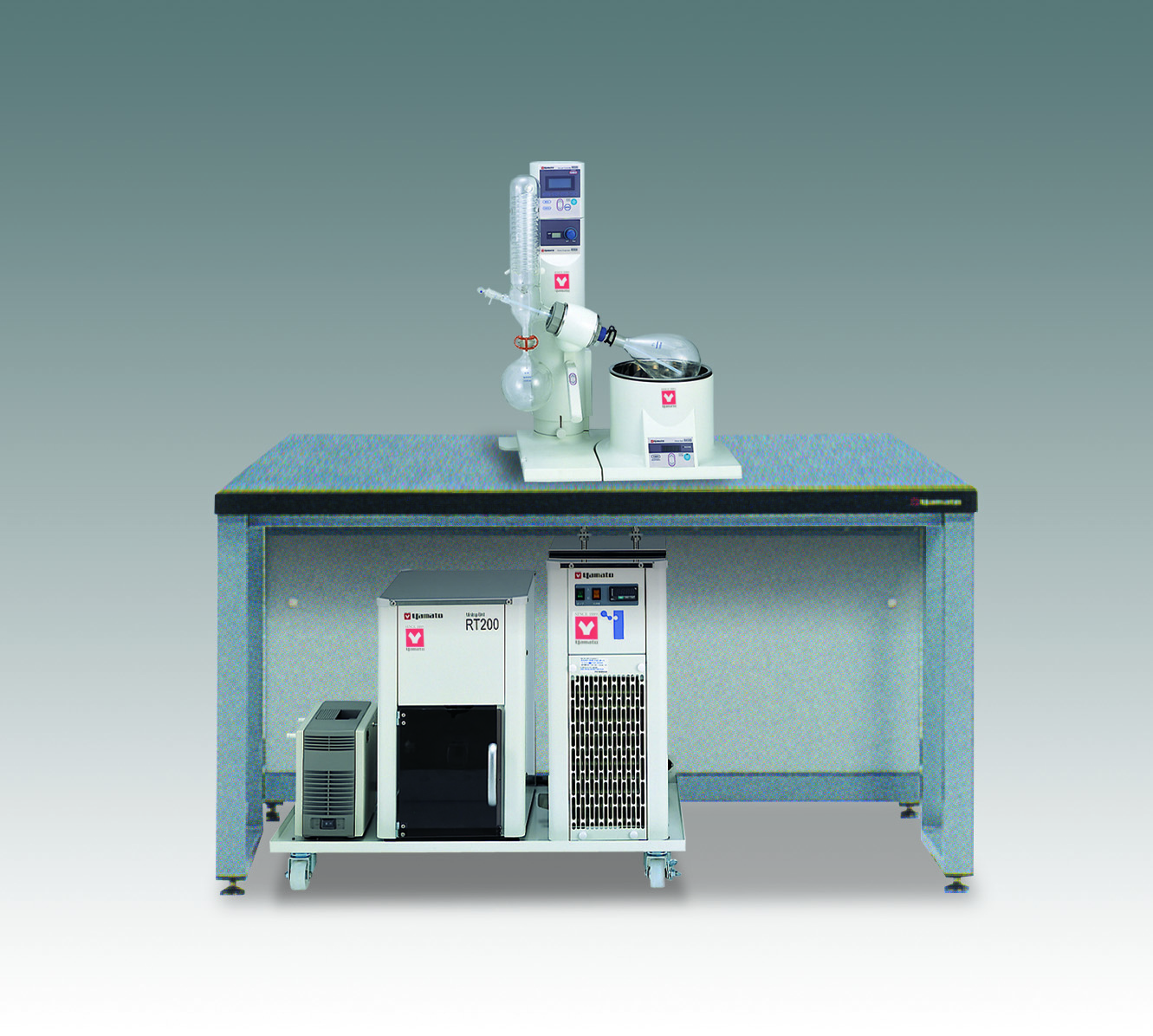

Features of Rotary evaporator, Glass “A”, Water Bath (RE301A-W)
- One touch electric lift for easy up and down movement.
- The evaporator’s motor speed (rpm) is digitally set and displayed.
- Unique durable vacuum seal suitable up to 2L flasks.
- Stable rotation at low and high speeds.
- Equipped with lift up switch in case of power outage.
- Removable bath for easy cleaning and water replacement, with the option for water or oil bath.
- Compact design fits into any fume hood.
- Universal power supply: works with 100-240VAC.
| Specifications | ||
| Item Code | 255420 | |
| Model | RE301A-W | |
| Motor | DC brushless motor | |
| Rotation speed | 20 to 250 (rpm) | |
| Lift stroke | 130ｍｍ | |
| Rotational speed setting | Control knob (digital indication) | |
| Safety function (main unit) | Manual-setting lower limit, motor overload | |
| Lifting feature | Motorized lifting system | |
| External dimensions（W×D×H mm） | 828×400×586mm | |
| Remarks(dimensions) | With Glassware A (mm), (716 when raised) | |
| Power Source | AC100 to 240V 1.5A | |
| Weight | 14.1kg | |
| Remarks(weight) | Excluding glassware and water/ oil bath. | |
| Weight | 31.08 lbs |
|---|---|
| Dimensions | 15.75 × 33 × 23.07 in |
