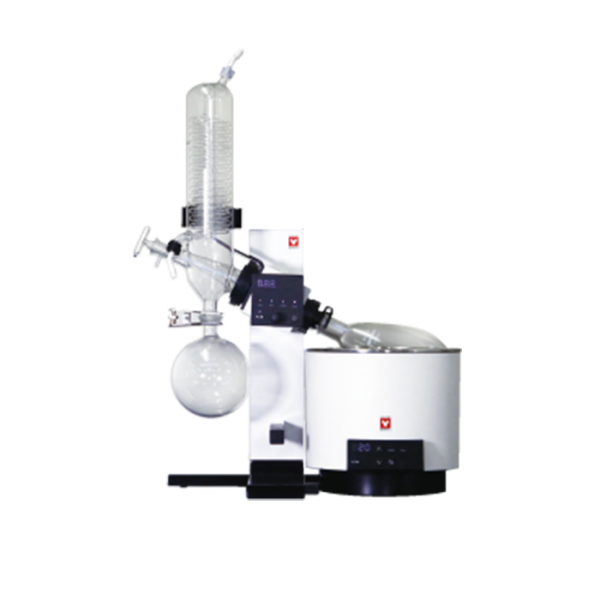

RE-202-A/RE-212-A/RE202-AWA/RE202-BWA – RE Series Standard Rotary Evaporator with Slide Jack Mechanism- Yamato
$1,437.70 – $2,439.80
The Yamato RE202-A/RE212-A series is all about space and power. If you want a compact machine with incredible functionality, then this series is for you. These rotavaps are particularly engineered for a small but growing lab or research facility.
This unit is a market leader in rotation speed range at 5~315 rpm, which allows you more room to determine optimal evaporation performance. With its set inversion function, where glassware and bath can be set on either side, left or right, you won’t have to spend your time worrying about space. The units also have servo type motors, which maintain stability even in large capacity flasks. With these standard rotary evaporators in your lab, you will achieve consistent productivity—without sacrificing space and sample integrity.
Features
- Comes with a speed range at 5~315 rpm.
- Has a slide jack mechanism for convenient height adjustment.
- Standard rotary evaporator, available in a water bath and an oil bath.
- Cables stored neatly inside the AC adapter holder at the back of the main unit.

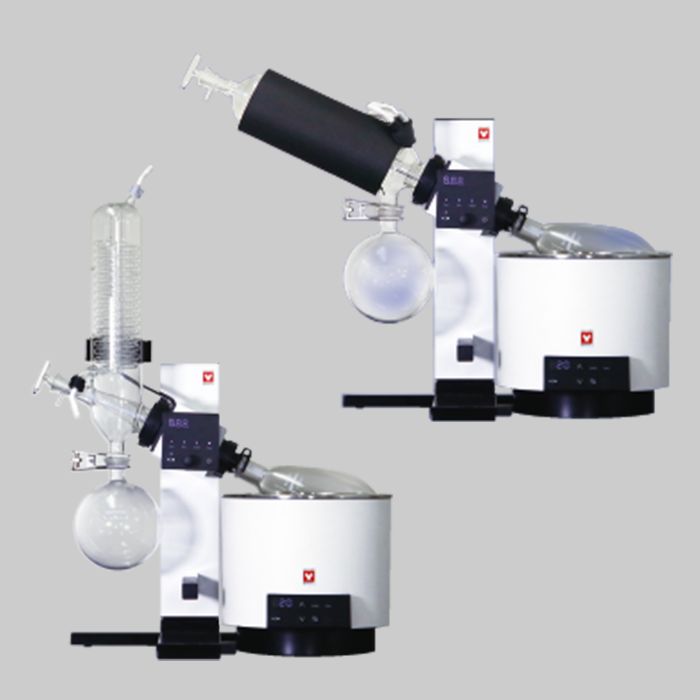

- Flexible glassware and bath position. You can put them on the left or ride side, depending on your dominant hand and the unit’s location.
- Equipped with a condenser insulation kit, which prevents condensation on the condenser’s surface.
- Anti-liquid stagnation glass condenser design, which improves durability of the vacuum seal.
- Has a servo-type motor with strong high torque, which sustains a stable rotation in large capacity flasks.
| Models | RE-202-A RE-212-A MAIN UNIT |
RE202-AWA RE212-AWA (WITH GLASSWARE) |
RE202-BWA RE212-BWA (WITH GLASSWARE) |
|
| Performance*¹ | Operating ambient temp. range | 5~35°C | ||
| Speed range | 5~315 rpm*³ | |||
| Evaporation capacity | — | Up to 23 ml/min | ||
| Functions | RPM display | Digital display / Encoder dial setting | ||
| Rotation mode | Forward/Reverse/Auto reverse | |||
| Spring-loaded jack | Manual balance (Max. height 200 mm, stepless regulation, one-touch lock) | |||
| Configuration | Rotary motor | DC brushless (simple servo) | ||
| Condenser retention | Retaining bracket for vertical condenser (condenser type B) | |||
| Safety Functions | DC motor: Motor overload protection, overvoltage, low voltage, rotation speed sensor error AC adapter: Short circuit in internal circuit, overcurrent protection, overvoltage protection |
|||
| Standard | Cooling condenser | — | Double corrugated tube(cooling surface: 0.143 m²) | Double corrugated tube (cooling surface: 0.143 m²) |
| — | Suction port: GL-14 (lower), Φ10 nozzle | Suction Port: GL-14 (upper), Φ10 nozzle | ||
| — | Cooling port: GL14 (two places in lower part), two φ10 nozzles | |||
| Compatible evaporation flask | 0-2000ml for TS24. Use optional reducer to attach small flasks. | |||
| Compatible receiving flask | 100-2000 ml | |||
| External dimensions*² (W x D x H) | 375 × 324 × 445 | 719 × 324 × 534 | 529 × 324 × 745 | |
| Overall dimensions*² (W x D x H) | — | 744 × 365 × 534 | 554 × 365 × 745 | |
| Power rating | RE202: 100-115 VAC single phase 1A RE212: 200-230 VAC single phase 1A |
|||
| Power cable | ~2.0 m with inlet plug | |||
| Weight | ~7.0 kg | ~9.0 kg (including RE unit) | ~9.0 kg (including RE unit) | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | RE-202-A (Rotary Evaporator (Main Unit) Digital 115V), RE-212-A (Rotary Evaporator (Main Unit) Digital 220V), RE202-AWA (RE-202-A Rotary Evaporator, BM-302-A Water Bath (5L), Glassware A, 115V), RE202-BWA (RE-202-A Rotary Evaporator, BM-302-B Water Bath (5L), Glassware A, 115V) |
