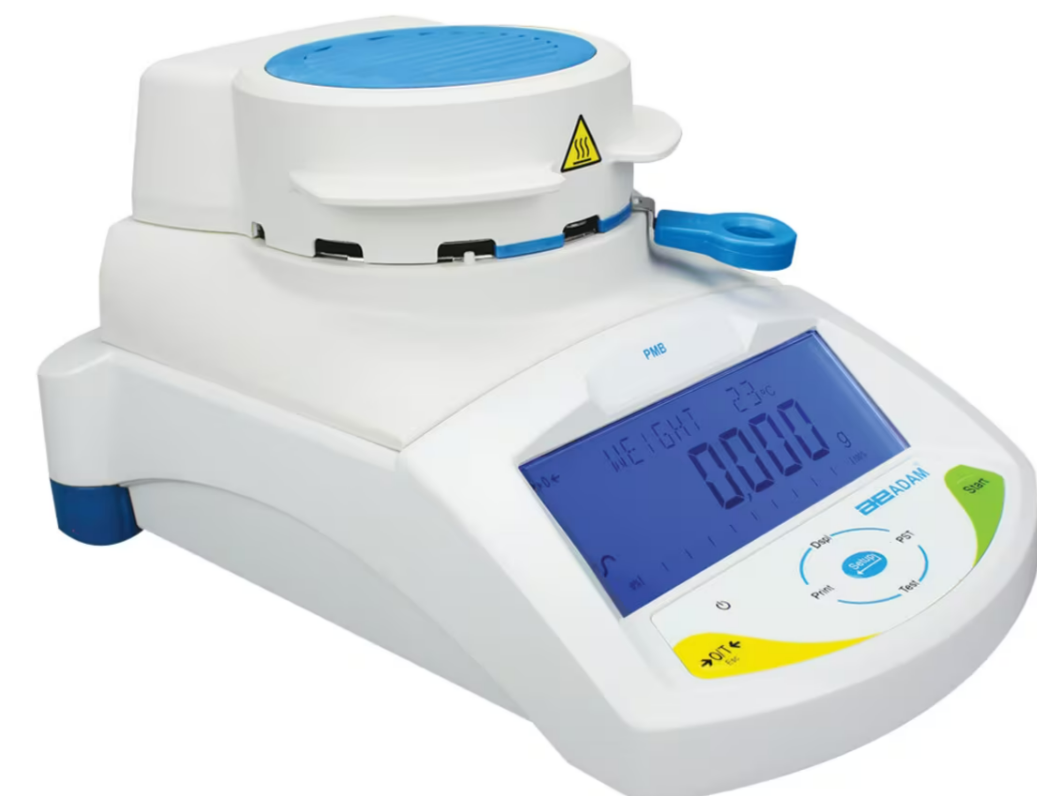

PMB 163 – PMB Moisture Analyzer-Adam Equipment


Compare

$3,450.00

With simple operation and fast response time, the PMB Series offers superior value in moisture analysis. USB and RS-232 interfaces facilitate connectivity, while the other USB port allows storage of test program information and data on a USB flash drive.

With simple operation and fast response time, PMB Series moisture analyzers offer superior value in their class. The automatic test setup feature allows easy recall of frequent testing of the same items without additional user programming. USB and RS-232 interfaces provide connections to computers and printers for storing test programs and results. No additional software is needed to take readings, giving users complete freedom to collect data on a production floor or in the field. A single 400-watt halogen lamp heats samples in selectable 1°C increments. Three heating options give users the flexibility to customize test methods and temperatures for different materials.

Features and Benefits

  • Vivid, backlit LCD easily viewable in any lighting condition
  • Programmable backlight can be set to “always on”, “always off” or “on when weighed”
  • Capacity recorder integrated into the display for monitoring overloads
  • Scratch-resistant aluminum housing protects internal components
  • Color-coded keys make it easy to quickly recognize the most frequently used keys
  • Dish holder allows easy sample placement and removal
  • RS-232 interface to provide quick connection to computers and printers
  • USB host for memory card and USB I/O interface
  • USB interface included for faster data communication
  • Temperature range 50°C to 160°C in one degree increments
  • Network Power Cable
  • Three settings for sample heating include rapid acceleration, stepped temperatures, and single temperature.
  • 4 predefined drying modes allow test routines for various products
  • Acoustic overload alarm alerts when capacity has been exceeded
  • Allows automatic start of the test when closing the lid
  • Temperature and weight calibration
  • Multilingual display allows use in various regions of the world
  • Quick and easy setup using the keyboard
  • Zero-tracking feature ensures the reading on the display returns to zero
  • The internal memory stores 49 different recipes and up to 99 test results, and additional test results and settings can be stored on a flash drive.
  • Security slot for optional padlock to help prevent theft
Specifications
Metrology Maximum capacity 160g
Readability 0.001g / 0.01%
Repeatability 0.001g
Linearity 0.002g
General specifications Plate size 3.9″ / 100mm ø
Weighing units %M, %S, ATRO %M, ATRO %S, g
Stabilisation Time 3
Interface RS-232/USB
Calibration External Calibration
Screen Backlit LCD display with 24mm high digits
Power supply Power supply Power cord
Operating conditions Operating temperature 0° to 40°C / 32° to 104°F
Product information Construction Cast Aluminum
Net weight 6kg
Overall dimensions Overall dimensions 9.8″x14.2″x7.3″ / 250x360x185mm
SKU: PMB 163-115V-1-1 Categories: , , Tag: Brand:
Weight 13.23 lbs
Dimensions 14.2 × 9.8 × 7.3 in
