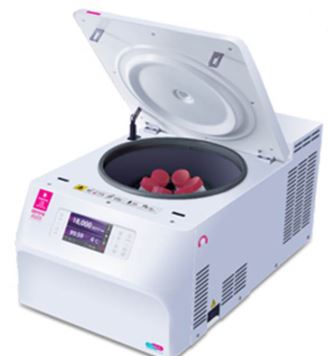

Cryste Micro Centrifuge – Purispin 18R
Refrigerated micro centrifuge with powerful g-force and high throughput
Ergonomic Design for Common Use
- Modest working height of the device makes users to feel ease in loading and unloading samples
Various Rotors
- Most micro tubes can be used from PCR tubes to general micro tubes
- Up to 50ml conical tube can be loaded
Refrigerator and Fast Cool Function
- Pre-cooling before use is available so that user can minimize the risk of degradation of thermal sensitive samples
- 4℃ at maximum speed is ensured
Silent Operation
- Well-balanced motor minimized vibration, which leads to the most silent operation
Energy Saving
- Pre-set energy saving mode can help to reduce the electrical operating cost
- Unnecessary operation without the real-use can be controlled by Standby Mode and Eco Shut-off setting
Ability to drain
- Excessive condensation can be treated by drainage at the bottom of chamber
Touch Controller
- User-friendly 4.3” full color touch LCD controller helps to set the parameter at modern way
- All set points are visible at a glance and setting is easy
- Touch pad lock doesn’t allow misuse during operation
Angle rotor acceptable
- Small turn locking lid mechanism helps to open and close the lid within a short moment
Specification | ||
Max. RPM | 18,000RPM(Angle Rotor) | 13,000RPM(Swing Rotor) |
Max. RCF | 30,717 xg | 16,343 xg |
Max. Capacity | 50ml Conical x 6 | 2.0ml x 24 |
Accel / Decel phase | 0 ~ 9 (10set) | |
Set Temp. | -10℃ ~ +40℃ ( 1℃ increments ) | |
Ref. System | Non-CFC | |
Noise Level | ≤60dB | |
Set Time | 99 min 59sec or continuous | |
Time Count | From start / From set-up RPM | |
Program | 100 memory | |
Rotor ID | Automatic Recognition | |
Display | 4.3” LCD Touch Screen | |
RPM Range | 400 to 18,000 RPM | |
Display message on screen | RPM, RCF, Time, Door open/close, Temp ACC, DEC, Rotor ID, Program, Comp. On/Off | |
Available Rotor Quantity | 10 | |
Power Supply | AC 230V ± 10%, 50-60Hz, 1Phase | |
Power Consumption | 1,500W | |
Dimension(W x D x H) | 382 x 669 x 314 mm(H:670mm with open lid) | |
Weight (without rotor) | 52kg |
