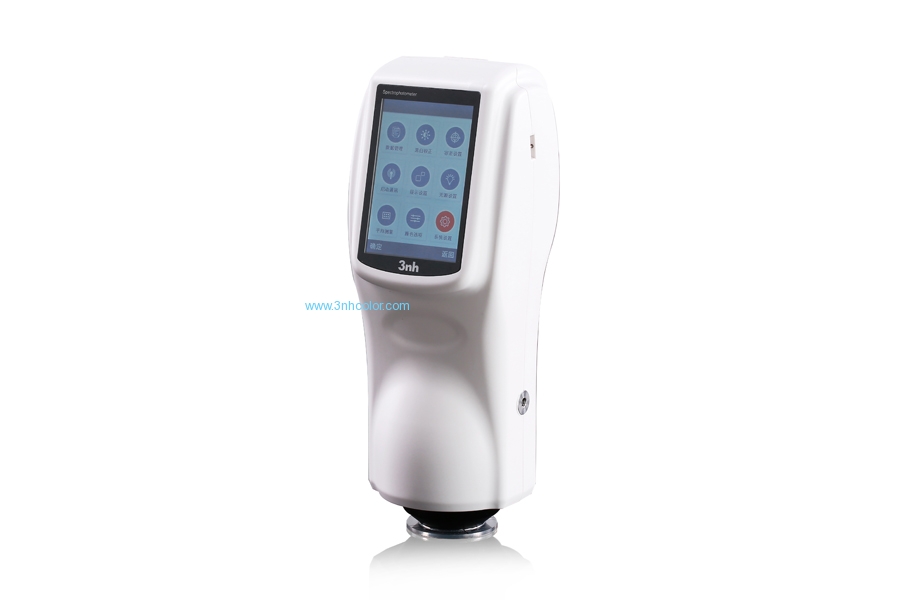

NS808, Yxy Spectrophotometer for Traffic Sign Road 3nh
NS808 Yxy color spectrophotometer is special designed for the color measurement of traffic signs.
$4,300.00
NS808 Yxy Spectrophotometer is special designed for the color measurement of traffic signs. It was researched and developed solely by 3nh independently who owns the complete independent intellectual property rights. Its leading position in the industry is earned by its powerful functions, high accuracy and reliability. NS808 spectrophotometer can be easily used to measure the brightness factor and chromaticity coordinate of all kinds of traffic signal reflection film. Built-in GB2893 safety color and GB/T18833 all kinds of standard color module of traffic signal reflection films, we can choose one according to the requirement. In addition, we can also conveniently customize polygon tolerance they want.
At the same time, NS808 portable spectrophotometer is also widely used in plastics, electronics, paintings, inks, testiles, garments, dyeing, printing, paper, automobiles, medical, cosmetics and food, etc, and other industries. It is also used in some scientific research institutes and laboratories.
NS808 portable spectrophotometer can measure multiple color indexes from many color spaces to get precise measurement like reflectance spectrum. With NS808 Yxy spectrophotometer, we not only do the study of color matching and color management, but also do color quality control. Configured with PC SQCT software, we can connect to PC and get more extension functions.
Features:
- Specially designed to measure traffic signs.
- Elegant appearance combines ergonomic design
- 45°/0 geometry optical structure, conform to standard CIE, ISO, ASTM and DIN, incomparable accuracy.
- 3.5″ ultra-large touch-screen makes the operation interface quite friendly.
- Two kinds of standard observer angles, multiple light sources, multiple color spaces and multiple color difference formulas, fit for all kinds of color measurement requests.
- Repeatibility ΔE*ab within 0.04, inter-instrument ΔE*ab less than 0.2, super stable and reliable performance.
- Large capacity storage, more than 15000 data.
- PC SQCT software with powerful extension functions.
- High hardware configuration with a number of innovative technologies.
| Models | NS808 Yxy Spectrophotometer Specification | |
| Illuminating/Viewing Method | 45°/0 (45° ring illuminating, 0° viewing) Comply to standard CIE No. 15, GB/T3978, GB2893, GB/T18833 |
|
| Integrating sphere Size | Φ58mm | |

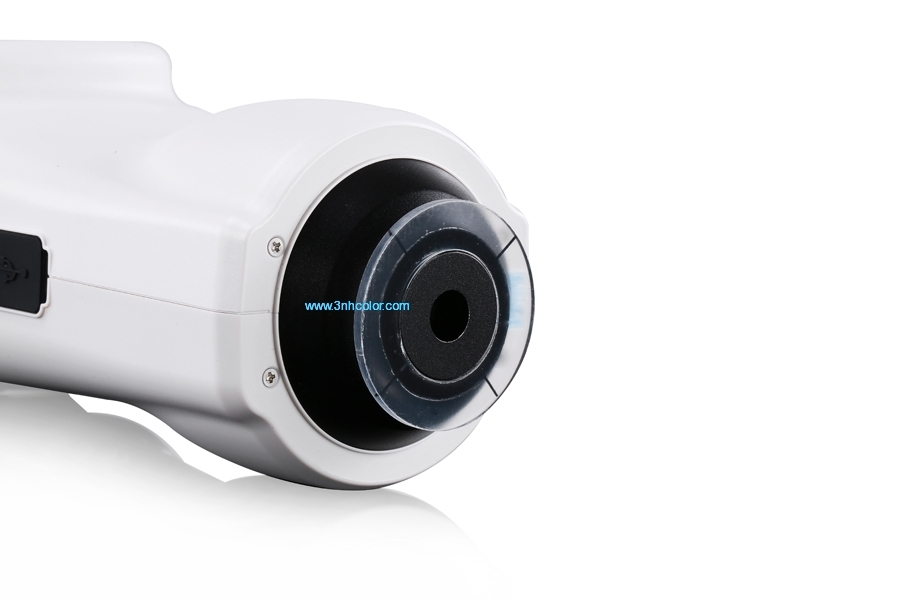

| Measuring Aperture | Φ8mm | |
| Observer | 2°/10° | |
| Repetitive Error | Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%) Colorimetric Value: standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.) |
|
| Inter-Instrument Error | ΔE*ab≤0.2 (Average value of measuring the 12 tint plates of BCRA series II) | |
| Wavelength Range | 400∽700nm | |
| Wavelength Pitch | 10nm | |
| Reflectance Range | 0∽200% | |
| Light Source Type | D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12 | |
| Light Source Device | Combined LED Light | |
| Light Source Life | 5 years, more than 1.6 million measurements | |
| Sensor | Silicon Photoelectric Diode Array | |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV | |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00 | |
| Display Data | Spectral Graph/Data, Sample Chromatic Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation | |
| Other Chromaticity Data | Whiteness – WI(ASTM E313，CIE/ISO,AATCC,Hunter)， Yellowness-YI(ASTM D1925，ASTM 313), TI(ASTM E313，CIE/ISO),Metamerism Index (Mt) Colour Stain, Color Fastness, Color Strength, Opacity |
|
| Measuring Time | 1.5s | |
| Data Storage | 1000 standards, 15000 samples | |
| Data Port | USD&RS232 | |
| Dimension | 90*77*230mm | |
| Weight | 600g | |
| Battery | Li-ion Battery, 5000 measurements in 8 hours. | |
| Operation Temperature | 0∽40℃(32∽104℉) | |
| Storage Temperature | -20∽50℃(-4∽122℉) | |

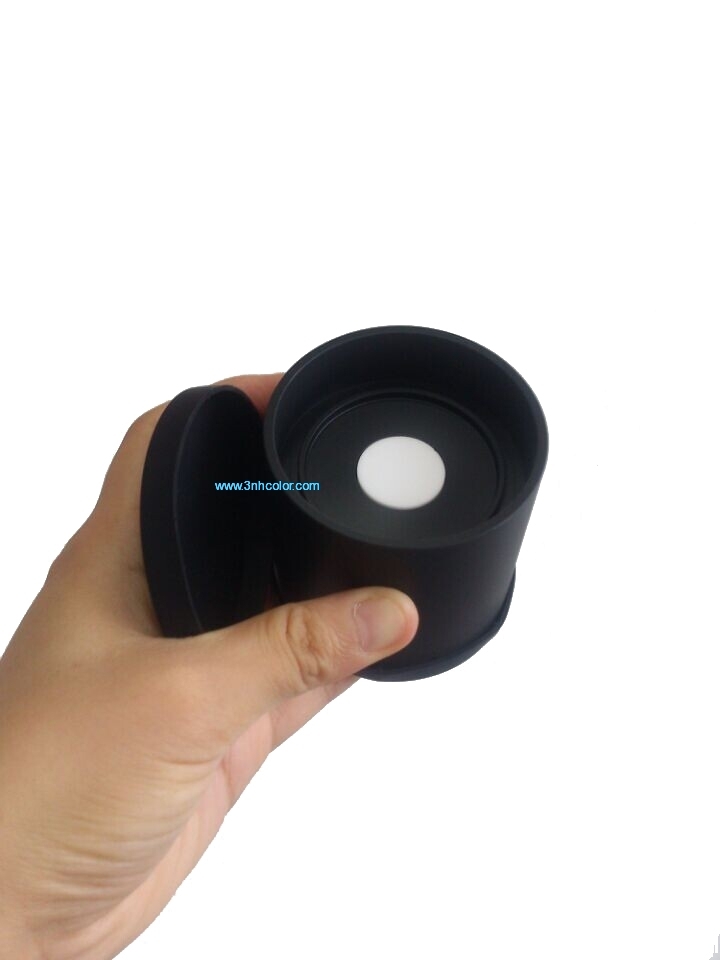

| Standard Accessory | Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap. | |
| Optional Accessory | Universal Test Components, Micro Printer, Powder Test Box | |
It is sent directly from the provider
| Weight | 1.33 lbs |
|---|---|
| Dimensions | 3.6 × 3.1 × 9.1 in |
