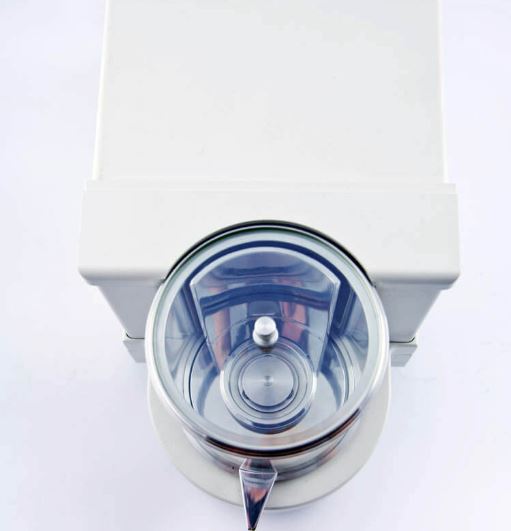

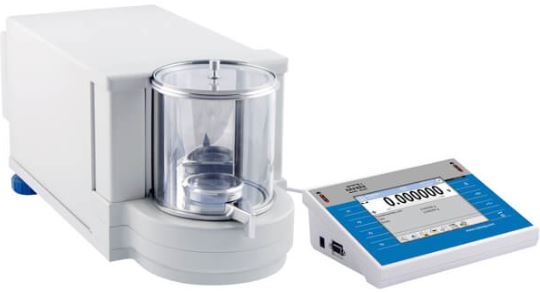

MYA 2.4Y- Micro Balance, 2.1 g x 0.001 mg – Radwag
$12,100.00
Faster measurement with the new CPU
4Y balances feature Dual Core 2 x 1 GB processor which delivers noticeable performance improvements including faster operation and shorter stabilization time retaining high repeatability values.
16 GB RAM – more data management possibilities
16 GB RAM offers possibility of recording data in a form of complex reports. Time and statistic data diagrams on series of weighments are another useful option.
The best possible repeatability and USP regulations conformity
The best weighing accuracy and repeatability – with sd ≤ 1d combined with USP regulations conformity (Section 41 and 1251) make 4Y balances a new standard for mass measurement quality.
Ergonomics and safety
Wireless communication between balance terminal and a weighing unit make it possible to comfortably operate 4Y series balances in laminar air flow cabinets and fume cupboards.
Remote control operation
Wireless Connection module offers wireless transfer of data recorded by 4Y balance to any portable device powered by iOS or Android systems using special applications intended for data management.
Data safety
Every single 4Y balance features ALIBI memory designed to provide protection and automatic recording of your measurements. Options such as data preview, copying and archiving are also available to users.
Filter weighing option
This innovative solution enables the user to easily swap the weighing chamber with the chamber for filter weighing, which considerably expands the MYA 4Y microbalance functionality. The filter weighing chamber is characterized by high ingress protection. Large open-work weighing pan allows precise weighing of filters of various dimensions (max ø100). It is made of stainless steel which makes the chamber resistant to chemicals, colour change and scratches. The additional chamber does not come standard with the MYA 4Y microbalance.
FEATURES
Features and Benefits
Hardware
- Optional hook enables below-balance weighing
- Security slot for optional Kensington-type lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows swift cleaning
- Magnetic damping slows pointer movement for faster readings
- Notched, tiered, graduated beams ensure positive positioning and accurate reading of results
- Storage space for weights included
- The TBB 2610T is equipped with a 225g tare range.
- Zero adjustment
| Specification | MYA 2.4Y |
| Maximum capacity [Max] | 2.1 g |
| Minimum load | 10 µg |
| Readability [d] | 1 µg |
| Tare range | -2.1 g |
| Standard repeatability [5% Max] | 0.5 µg |
| Standard repeatability [Max] | 1 µg |
| Permissible repeatability [5% Max] | 0.8 µg |
| Permissible repeatability [Max] | 1.5 µg |
| Linearity | ±3 µg |
| Eccentric load deviation | 3 µg |
| Standard minimum weight (U=1%, k=2) | 0.1 mg |
| Standard minimum weight (USP) | 1 mg |
| Stabilization time | max 8 s |
| Adjustment | internal (automatic) |
| OIML Class | I |
| Display | 5.7” resistive colour touchscreen |
| Communication interface | 2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital), Wi-Fi® |
| Power supply | 100 ÷ 240 V AC 50 / 60 Hz |
| Power consumption max. | 700 mA (wireless terminal – 1A) |
| Operating temperature | +10 ÷ +40 °C |
| Operating temperature change rate | ±0.3°C/1h (±1°C/8h) |
| Relative humidity | 40% ÷ 80% |
| Relative humidity change rate | ±1%/h (±4%/8h) |

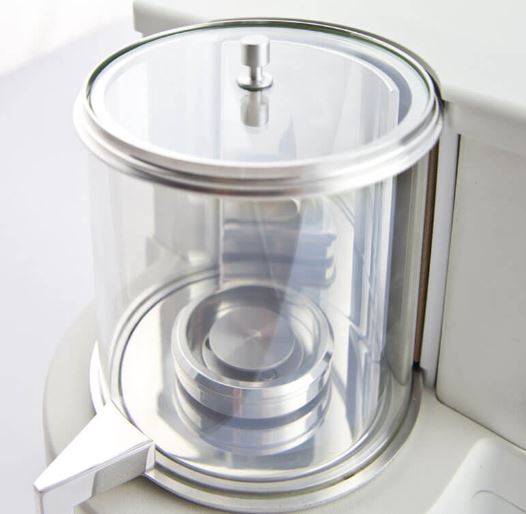

| Weighing chamber dimensions | ø90×90 mm |
| Weighing pan dimensions | ø16 mm |
| Packaging dimensions | 660×660×455 mm |
| Net weight | 9.1 kg |
| Gross weight | 16.6 kg |
| Weight | 36.6 lbs |
|---|---|
| Dimensions | 17.92 × 26 × 26 in |
