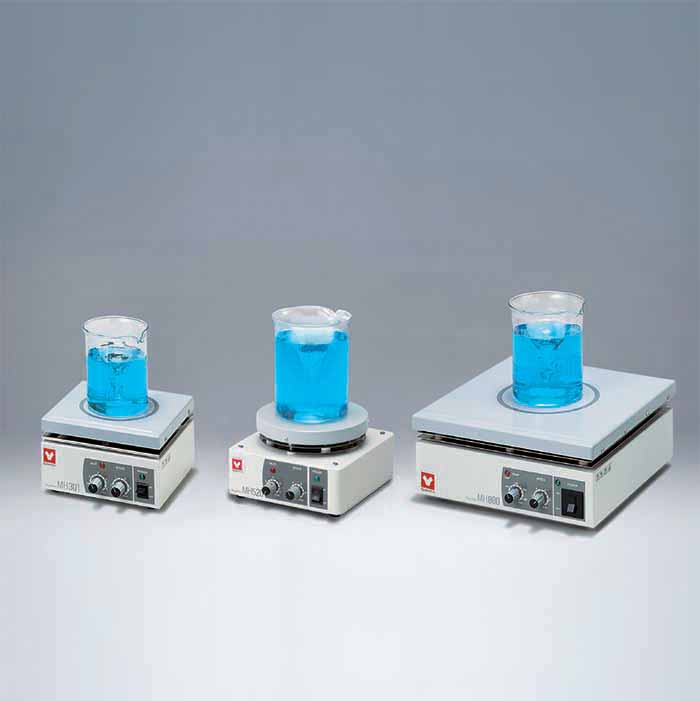

MH301/800: Strong stirrer with hot plate

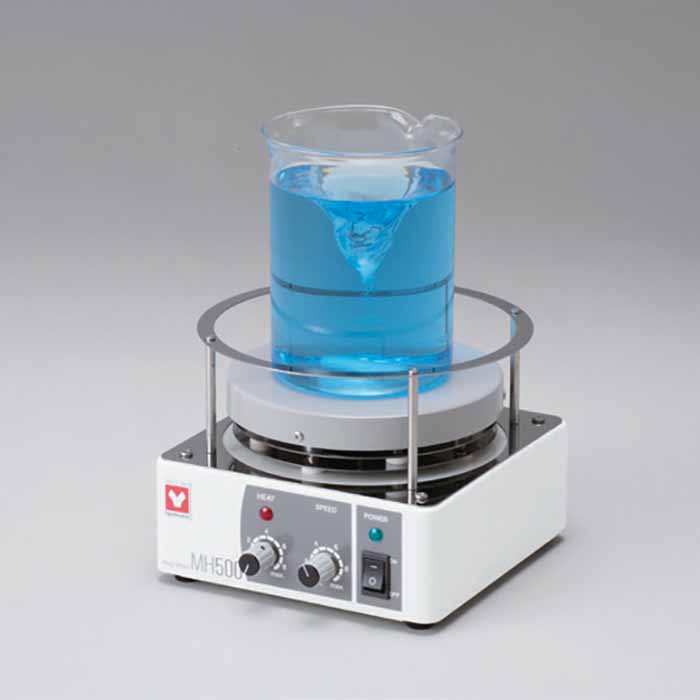

MH520: High temperature / boiling type magnetic stirrer with hot plate

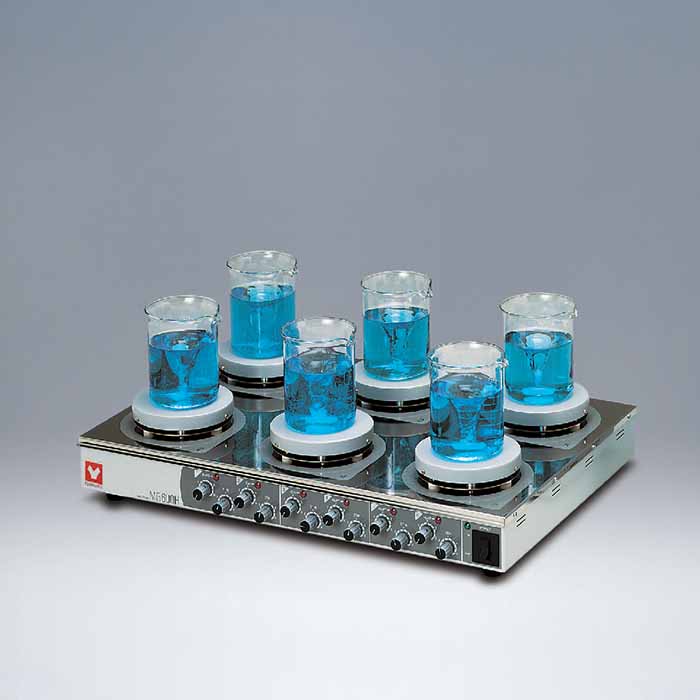

MG600H: 6 Points Controllable Type (individual stirring heating) stirrer with hot plate
Features
MH301/800
- Stirrable for high viscosity sample
- Volume knob type temperature control
- Chemical resistant, heat conductive aluminum with ceramic coating hot plate
MH520
- Stable rotation brings better results
- Excellent temperature stability and temperature rising speed with the adoption of round plate with good thermal efficiency
- Chemical resistant ceramic coating hot plate
- Equipped with circuit protector
- Strong stirring capacity up to 5L
- 20~60mm stirrer bar available
MG600H
- Rotation and heating can be adjusted individually
- Equipped with circuit protector
- Chemical resistant ceramic coating hot plate
| Model | MH301 | MH520 | MH800 | MG600H | |
| Plate Material | Aluminum with ceramic coating | ||||
| Plate Dimensions | W176xD151mm | ø168mm | W299xD285mm | ø126mm x 6pcs. | |
| Stirring Capacity | 100~3000ml | 50~5000ml | 200~10000ml | 100~2000ml x 6pcs. | |
| Stirring Rate | 400~1500rpm | 150~1150rpm (50Hz) 150~1300rpm (60Hz) |
100~1400rpm | 300~1500rpm | |
| Heater | 400W | 470W | 1000W | 230W x 6pcs. | |
| Temp. Control | Triac input control type | Triac input control type | Triac input control type | Triac input control type | |
| Hot Plate Temp. | Max.300°C (set by volume with OFF) | Max.325°C | Max.250°C (set by volume with OFF) | Max.250°C (W230mm x 6pcs. Individual temp. control (set by volume with OFF)) | |
| Motor | AC motor, condenser motor | Induction motor, Phase control / electromagnetic brake combination | AC motor, condenser electronic control 3W | AC shading motor | |
| Power Source (50/60Hz) | AC115V 4A AC220V 2.5A with external transformer |
AC115V 5.5A AC220V 3.5A with external transformer |
AC115V 10A AC220V 6A with external transformer |
AC115V 13.5A AC220V 7A with external transformer |
|
| External Dimensions* WxDxH | 184x202x114mm | 190x223x123 mm | 309x315x151 mm | 606x420x122 mm | |
| Weight | ~2.6kg | ~3.1kg | ~6.7kg | ~14kg | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | MH-301 (magnetic stirrer w/ hot plate 400~1500 rpm 115V/220VV), MH-520 (Magnetic Stirrer W/ Hot Plate 150~1300rpm 115V/220V), MH-800 (Magnetic Stirrer W/ Hot Plate 100~1400rpm 115V/220V), MG-600H (Magnetic Stirrer W/ Hot Plate X 6 300~1500rpm 115V/220V) |
