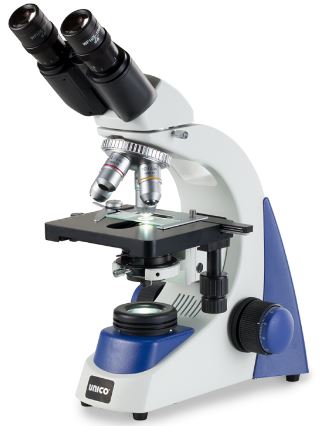

he G380 combines state of the art design and features with the latest optical coating technologies for crisp, clear imaging on a versatile and ergonomic platform. All models in the G380 series feature “High-Eyepoint” 10x widefield eyepieces. This unique design allows users wearing glasses to comfortably view through the scope without removing their glasses as they would have to with traditional eyepieces.
Available with your choice of Monocular, Dual-View,Binocular, or Trinocular heads, all of which rotate 360°.
Select from standard Achromat, Semi-Plan, or flat-field Plan achromat objectives.Includes a focusable 1.25 NA Abbe condenser with Iris Diaphragm, oversized graduated coaxial coarse and fine focus controls, swing-out filter holder and a port to allow insertion of a Phase Annulus for Phase microscopy. A ballbearing movement mechanical stage is also standard with low position coaxial controls. Features an integrated dual voltage transformer (110V and 220V) and a detachable power cord so you can use this scope anywhere in the world.
- SEIDENTOPF BINOCULAR HEAD
- WF10X PAIRED EYEPIECES
- BUILT-IN MECHANICAL STAGE WITH ABBE NA1.25 CONDENSER &IRIS
- LED ILLUMINATION
Specifications | G380-LED | G380SP-LED | G380PL-LED | G380SP-LED |
Head | Binocular | Binocular | Binocular | Binocular |
Eyepiece | 10X WF(2)Hi-EP | 10X WF Hi-EP | 10X WF Hi-EP | 10X WF(2)Hi-EP |
Objectives | Achromat 4,10,40,100X | Semi-Plan 4X/10X/40X/100X | Plan 4X/10X/40X/100X | Achromat 4,10,100X and 40X-SP-PH with Phase Slider |
Condenser | NA 1.25 | NA 1.25 | NA 1.25 | NA 1.25 |
Diaphragm | Iris | Iris | Iris | Iris |
Stage | Mechanical | Mechanical | Mechanical | Mechanical |
Illumination | LED | LED | LED | LED |
Bulb | 3 Watt LED | 3 Watt LED | 3 Watt LED | 3 Watt LED |
Focusing | Coaxial | Coaxial | Coaxial | Coaxial |
