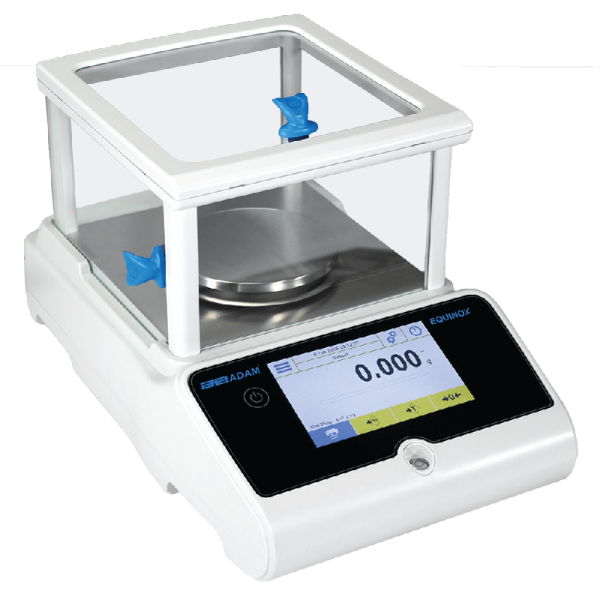

Equinox precision balances deliver remarkable precision to labs that perform highly detailed testing. The Equinox is ideal for research and quality assurance facilities; science education; precision counting; and production and manufacturing applications needing exceptionally precise results. Twelve precision models offer capacities from 360g to 8200g and readabilities of 1mg and 0.01g. A color touch screen display provides intuitive operation, with icon-driven menus and readily accessible applications and functions. The five-inch screen is generously sized, offering 800 X 480 pixel resolution for excellent visibility.
Features and Benefits
Hardware
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Security slot for optional Kensington-type lock and cable to help prevent theft
- Large, grade 304 stainless steel pan allows swift cleaning
- RS-232 interface is available to provide speedy connection to computers and printers
- USB host for memory card
Software
- Built-in memory for storing products and settings
- External calibration allows for verification and adjustment with weights
- Selectable digital filtering helps minimize effects of vibration and disturbances
- Security password control prevents unauthorized access
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Preset tare function speeds the process of repetitive weighing
- Parts counting with freely selectable sample sizes
- Multilingual display permits use in various regions
- Memory accumulation totals results
- Checkweighing with audible alarm
Display
- Large, responsive 5’’ 800×480 pixel touch-screen display
Power
- AC adapter included
Specifications | ||
Capacity | 360g | |
Repeatability | 0.002g | |
Calibration | External calibration | |
Pan Size | 4.3″ ø / 110mm ø | |
Power Supply | 24V 50/60Hz 500mA adapter | |
Interface | RS-232, USB | |
Net Weight | 14.5lb / 6.6kg | |
Approvals | N/A | |
Readability | 0.001g | |
Weighing Units | g, mg, lb, oz, ct, GN, dwt, mm, ozt, T, tl.H, tl.S, tl.T, custom unit | |
Stabilization Time | 3.0 | |
Linearity | 0.003g | |
Construction | ABS plastic | |
Operating Temperature | 10° to 30°C / 50° to 86°F | |
Overall Dimensions | 8.8″x14.7″x8.6″ / 224x374x219mm (wxdxh) | |
Display Digit Height | 4.9″ / 125mm |
