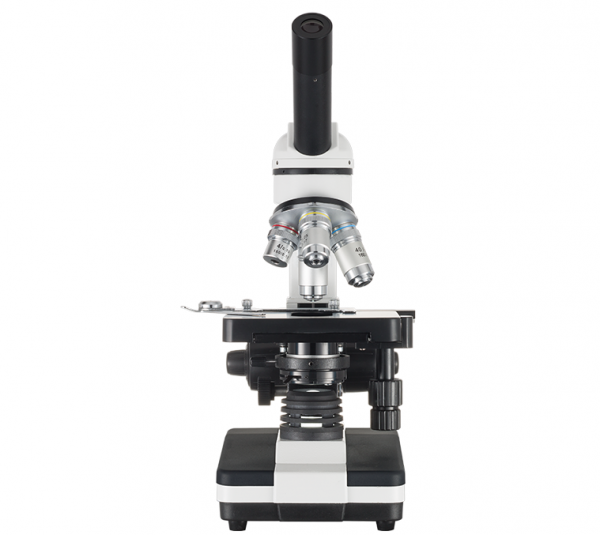

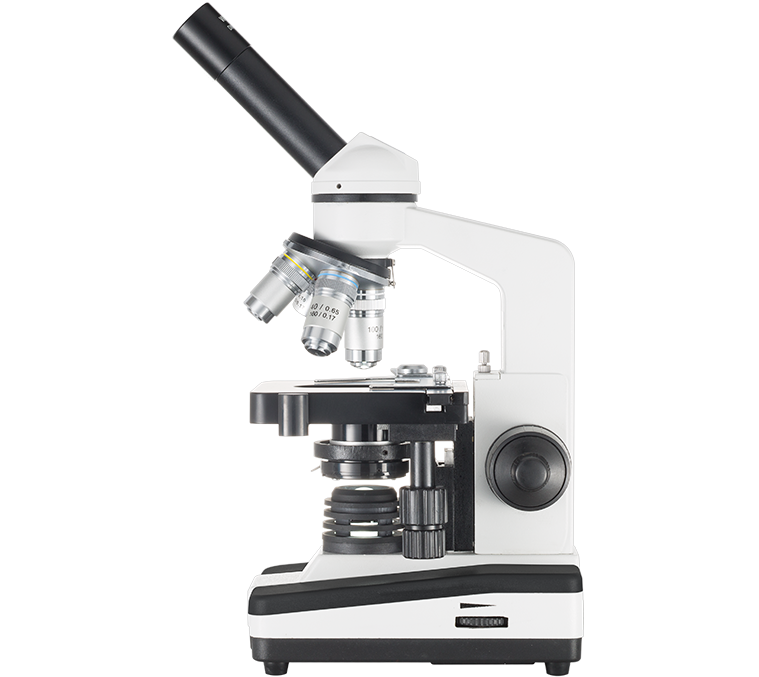

EDM-MM4A-DAL3/EDM-MM3A-DAL3 -Student Pro- LW Scientific
$439.00 – $477.00
Student Pro
Taking the student scope to the next level – the Student Pro is ready for any teacher, student, or hobbyist that wants the “professional grade” in student scopes.
With our proven design the Student Pro includes many of the advanced features you would find on any laboratory quality microscope – built in mechanical stage, heavy cast alloy, all metal gearing, moveable 1.25 ABBE condenser, and clear DIN objectives. Get accurate, clear results on a student-friendly scope without sacrificing the quality of observation with the Student Pro
HEAD
- Standard monocular head
- Bearing mounted, rotates 360°
- 10X/18 wide field eyepiece
- Locked-in eyepiece with pointer installed
CONSTRUCTION
- Heavy cast alloy
- Acid and reagent resistant finish
- All metal gearing
OBJECTIVES
- Four position nosepiece
- DIN Achromatic 4X, 10X, 40X (retractable)
- Optional 100x oil objective
- Parfocal and parcentric
- Color coded
STAGE
- Built-in “true-mechanical stage”
- Stage size: 124mm x 115mm
ILLUMINATION
- Moveable NA 1.25 ABBE condenser
- Iris Diaphragm
- Variable LED base
- Auto-switching 110-240V
ADJUSTMENT CONTROL
- Coaxial coarse and fine focus
- Adjustable stage stop
- Built-in “True-Mechanical Stage”
- Variable LED base
- Coaxial Focus Knobs
WEIGHT AND DIMS
- Height: 14” (356mm)
- Length: 6.5” (165.1mm)
- Width: 5.25” (134mm)
- Weight: 6.2 lbs. (2.8kg)
| Weight | 6.2 lbs |
|---|---|
| Dimensions | 6.5 × 5.25 × 14 in |
| Product | EDM-MM4A-DAL3 (Student PRO – Monoc, LED, 4 obj, Abbe, Iris, Coaxial, Built-in Mech Stg.), EDM-MM3A-DAL3 (Student PRO – Monoc, LED, 3 obj, Abbe, Iris, Coaxial, Built-in Mech Stg.) |
