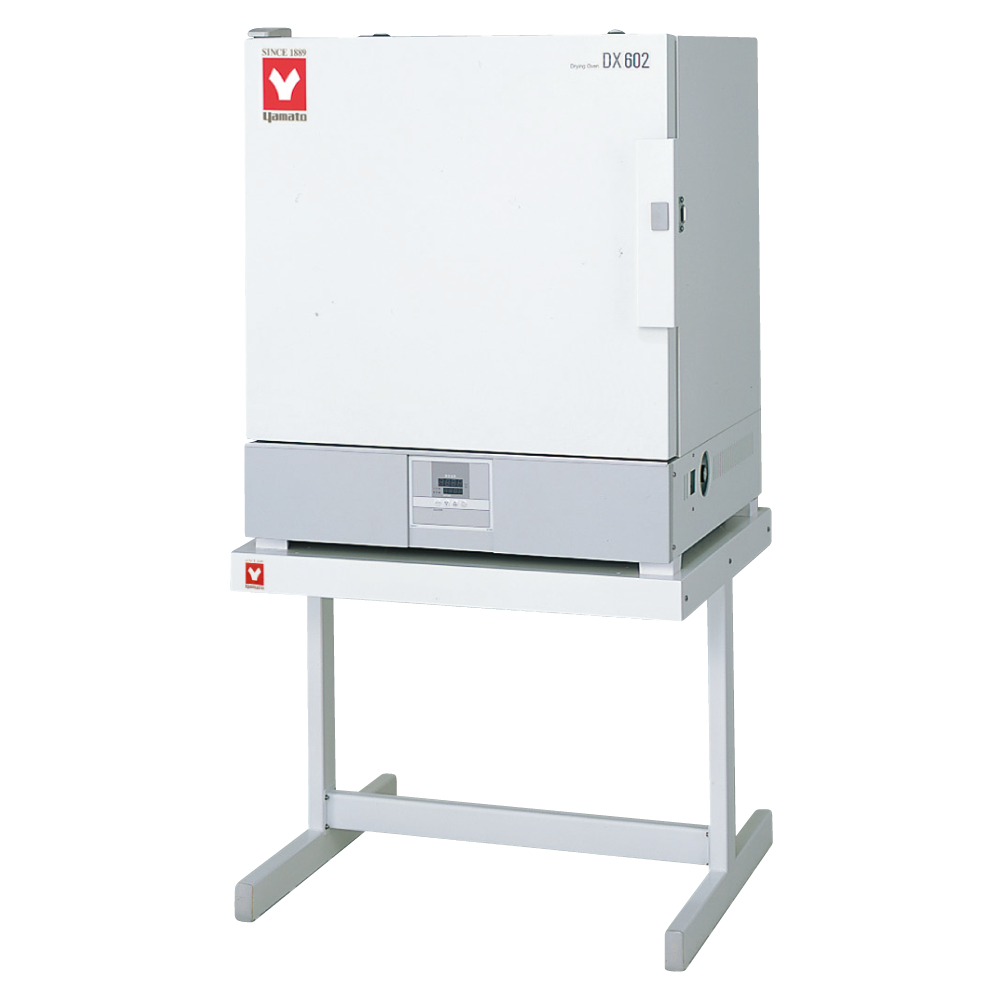

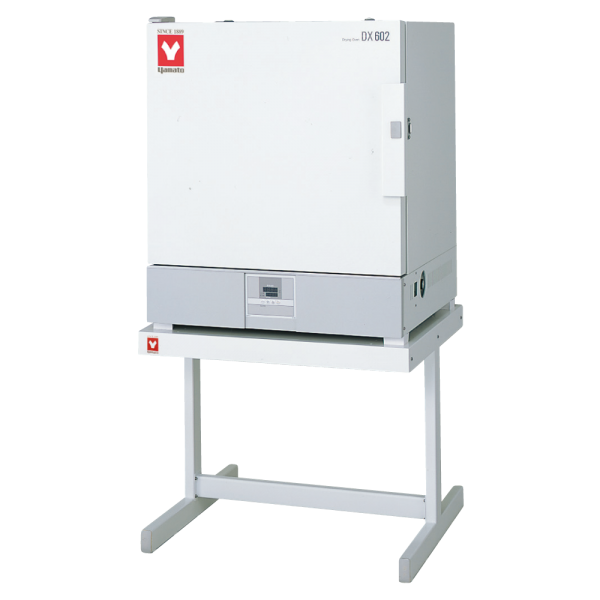

DX-602C/DX-612C – Natural Convection Oven 153L- Yamato
$2,502.50
Highly practical standard ovens with maximum temperature up to 300°C.
Features of Natural Convection Oven (DX602)
Standard type of natural convection constant temperature drying ovens, with extensive features and simple operation.
Economical and cost saving
Feature
Easy to use and maintain
Feature
Excellent temperature accuracy
Feature
Digital PID controller for easy constant operation with options of Fixed setting
Feature
Quick Auto Stop, Auto Start / Stop operation
Feature
Increased safety and Self-diagnostic function
Feature
Calibration off-set function
Safety features
Temp sensor error, Temp input circuit error, Auto overheat prevention, Measured temp error, Circuit breaker with over current protection
| Specifications | ||
| Item Code | 212078 | |
| Model | DX602 | |

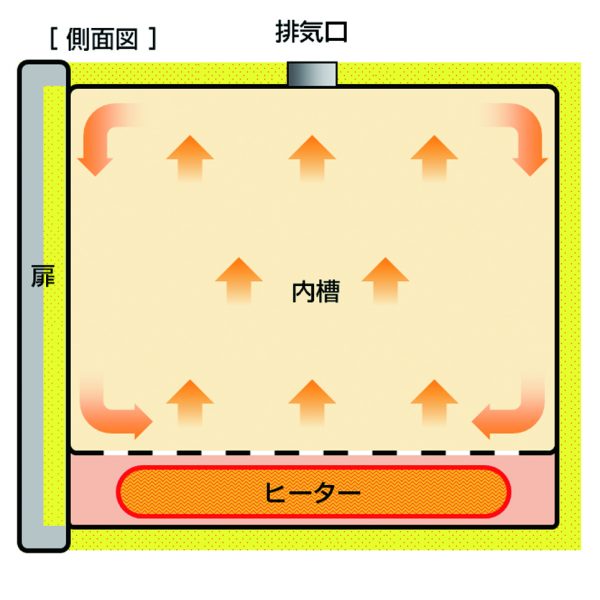

| Method | Natural gravity convection | |
| Operating temp. range | Room temp.＋5～280℃ | |
| Temp. control accuracy | ±1℃（at 300℃） | |
| Temp. distribution accuracy | ±10℃（at 280℃） | |
| Max. temp. reaching time | Approx. 80 min | |
| Interior material | Stainless steel | |
| Exterior material | Electro-galvanized steel sheet with melamine resin baking finish | |
| Heat insulating material | Glass wool | |
| Heater | Iron-chrome wire heater, 0.9 kW | |
| Exhaust port | Rotary dampers with a 20% opening rate at closing | |
| Temp. controller | PID control by microprocessor | |
| Temp. setting method | Digital setting by UP/DOWN key | |
| Temp. display method | Measurement temp. : Digital display by green LED Setting temp. : Digital display by red LED | |
| Timer | 1 min. to 99 hrs. 59 min. and 100 hrs. to 999 hrs. 50 min. | |
| Operation function | Fixed temperature operation, Quick auto stop, Auto stop, Auto start | |
| Additional function | Calibration off-set, Power failure compensation function, Key lock function | |
| Heater circuit control | SSR control | |
| Sensor | K-thermocouple | |
| Safety device | Self diagnosis functions(Temp. sensor abnormal, Abnormal memory, Input temp. abnormal, Measured temp. abnormal, Automatic overheat prevention), Key lock function | |
| Safety device | Hydraulic independent overheat prevention device, Electric leakage breaker with over current protection | |
| Shelf plate with standard load | 15kg/piece | |
| Shelf support step number/pitch | 12 steps / 35mm | |

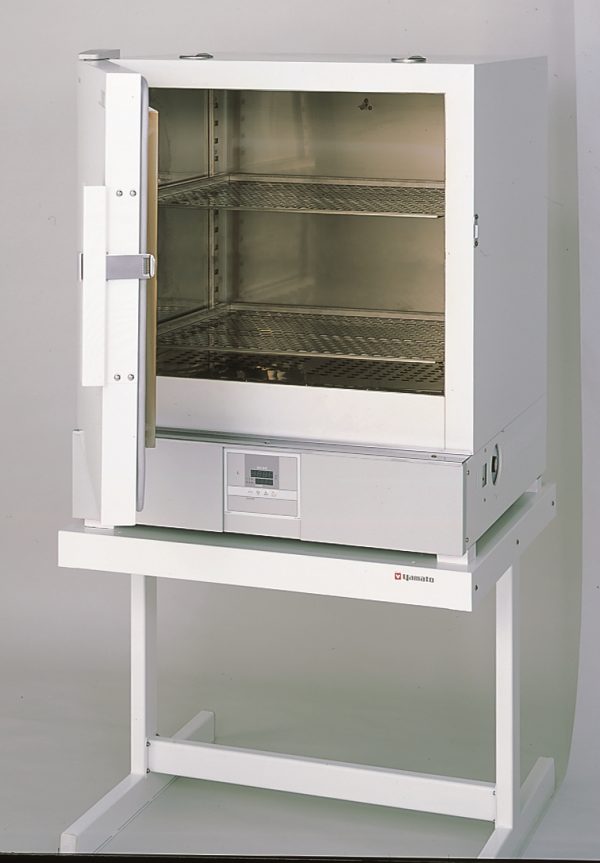

| Accessories | Stainless steel punching metal Shelf plate 2pcs. Shelf bracket 4pcs | |
| Internal dimensions（W×D×H mm） | 600×510×500mm | |
| External dimensions（W×D×H mm） | 700×640×830mm | |
| Remarks(dimensions) | 153L | |
| Power Source | AC220V 7A Single-phase |
|
| Weight | 56kg | |
| Weight | 123.46 lbs |
|---|---|
| Dimensions | 25.2 × 27.56 × 32.68 in |
| Product | DX-602C (Natural Convection Oven 153L 115V), DX-612C (Natural Convection Oven 153L 220V) |
