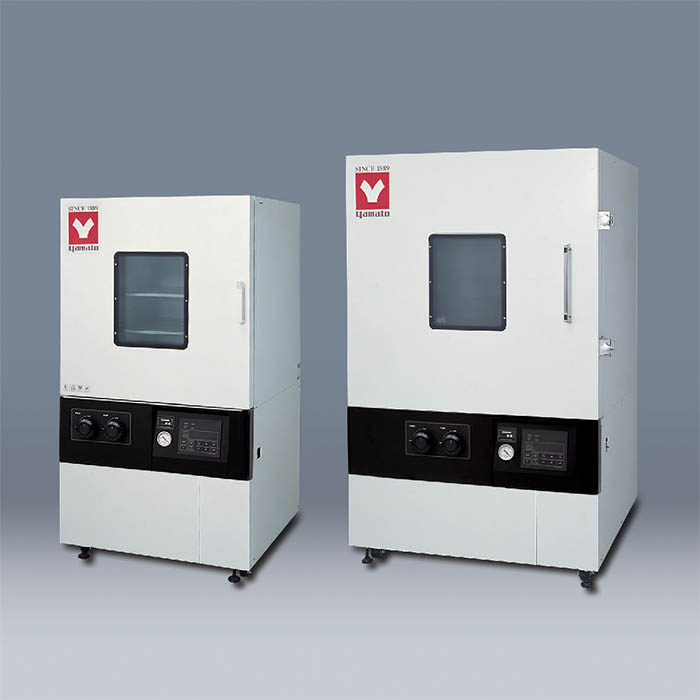

Large scale vacuum drying oven designed for treatment of large-sized parts
Performance and functions
- Vacuum pump can be installed inside the oven
- Quick connect / disconnect of vacuum pipes for easy vacuum pump maintenance
- Because the exhaust system is improved to significantly shorten the time to reach vacuum, working efficiency is improved.
- Use specialized function menu key and ▲▼ key to set. With program operation function, use submenu key to operate overheat protector, deviation correction, etc.
Safety features
- Self-diagnostic functions (abnormal temperature sensor, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent overcurrent, key lock, etc.
- For safety, resin protection panel is installed at the observation window
| Model | DP83C | DP103C | |
| Method | Decompression • chamber wall heating | ||
| Operating Temp. Range | 40~200°C | ||
| Operating Vacuum Range | 101~0.1kPa (760~1Torr) | ||
| Temp. Adjustment Accuracy | ±1.0°C (at 200°C) | ||
| Interior | Stainless steel plate | ||
| Exterior | Cold rolled steel plate with chemical proofing coating | ||
| Insulating Material | Glass fiber | ||
| Heating Method | Decompressed chamber wall direct heating | ||
| Heater Power | 6.5kW | 14.4kW | |
| Observation Window | Toughened glass + resin protection panel | ||
| Vacuum Gauge | Pointer type, -100~0kPa | ||
| Vacuum Pump Installation Room | Yes | ||
| Temp. Control | 3 segments PID | ||
| Temp. Setting | Use specialized function menu key and up/down key to set | ||
| Temp. Display | Measured temp. display: green 4-digit LED digital display Setting temp. display: red 4-digit LED digital display |
||
| Timer | 1min-99 hr 59 min and 100 hr-999 hr 50 min (attached with timing wait function) | ||
| Operation Function | Fixed temp. auto start, auto stop, program operation | ||
| Program Mode | Program operation 3 segments 30 steps (30 steps×1, 15 steps×2, 10 steps×3) | ||
| Additional Function | Deviation correction, key lock, power outage compensation | ||
| Heater Circuit Control | SSR driving | ||
| Sensor | K thermocouple (temp. controller and overheat protector) | ||
| Safety Device | Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, EBL to prevent overcurrent, key lock, etc. | ||
| Internal Dimensions W×D×H | 800×800×800 mm | 1000×1000×1000 mm | |
| External Dimensions W×D×H | 1020×1020×1850 mm | 1300×1280×2110 mm | |
| Internal Capacity | 512L | 1000L | |
| Air Exhaust Port | NW40 flange | ||
| Air Suction Port | Rc 3/8 | ||
| Power Source (50/60Hz) Rated Current | AC220V 31.5A (no plug, round terminal) | 3 phase AC380V 27A (no plug, round terminal) | |
| Weight | ~450kg | ~1000kg | |
| Accessories | Stainless steel punching plates, 2 pcs. | Stainless steel punching plates, 4 pcs. | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | DP83C (Large Capacity Vacuum Oven Programmable 512L 220V 11A 50/60hz), DP103C (Large Capacity Vacuum Oven Programmable 1000L 220V 15A 50/60hz) |
