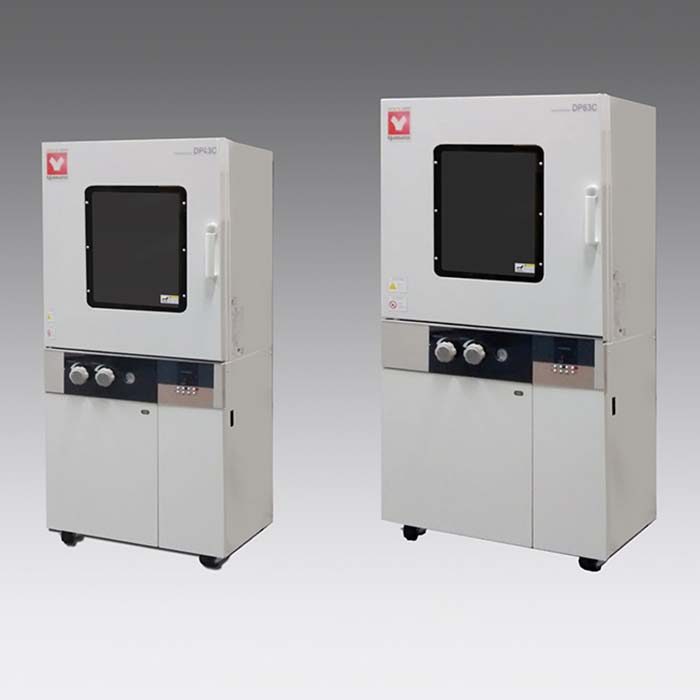

Large capacity multi-purpose vacuum ovens
Performance and functions

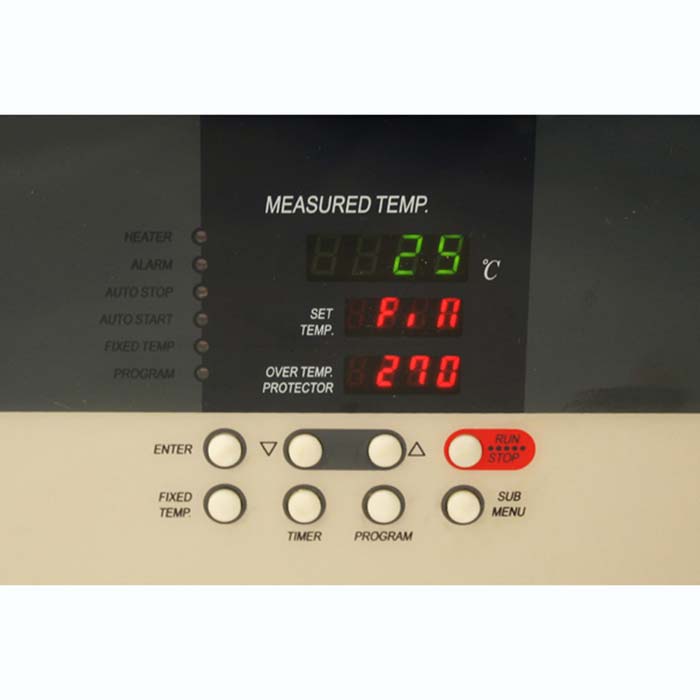

- Interactive key input of the control panel for easy operation
- Equipped with high precision functions such as fixed temperature, quick auto stop, auto stop, auto start and program operations for enhanced performance
- Vacuum reaching time significantly reduced by improvement of the exhaust system, resulting in more efficient operation

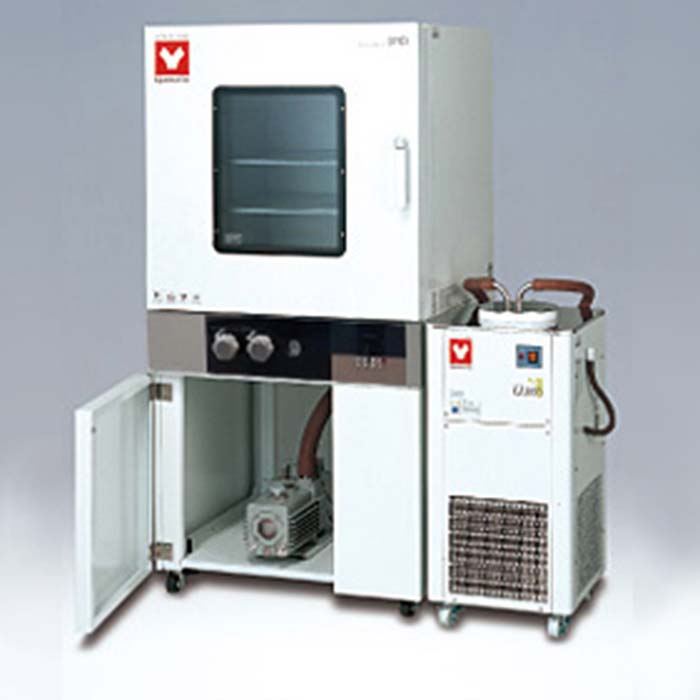

- Vacuum pump can be stored in the bottom cabinet, which is suitable for space limited laboratories
- Easy removal of piping and maintenance of the vacuum pump
- Calibration off-set function
Safety features
- Enhanced safety features: sensor trouble detection, SSR short circuit detection, heater disconnection detector(sensor), memory error, internal communication error, overheating and measurement temperature error
- Large observation window with protective cover for increased safety
| Model | DP43C | DP63C | |

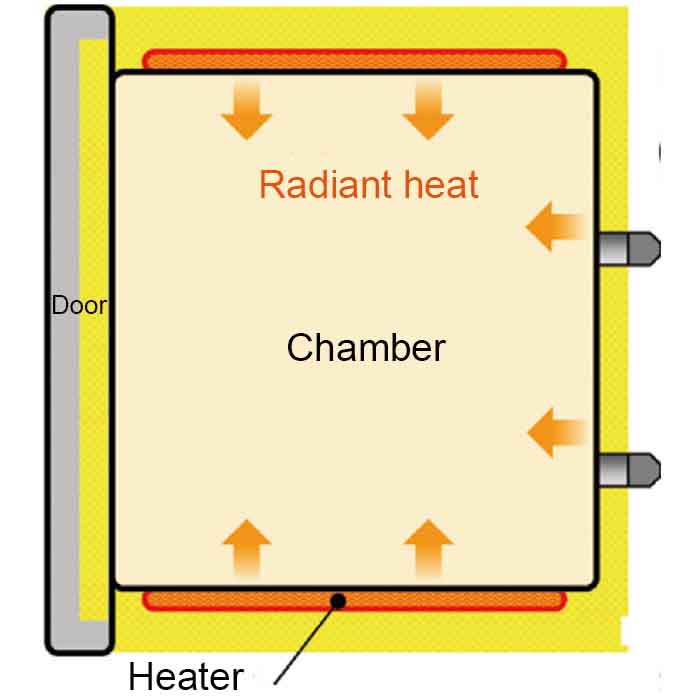

| System | Vacuum drying by decompressed chamber direct heating | ||
| Operating Temp. Range | 40°C to 200°C | ||
| Operating Pressure Range | 101 to 0.1 kPa (760 to 1 Torr) | ||
| Temp. Control Accuracy | ±1.0°C (at 200°C) | ||
| Max. Temp. Reaching Time | ~80 min. | ~120 min. | |
| Interior Material | Stainless steel | ||
| Exterior Material | Cold rolled steel plate with baked-on melamine resin finish | ||
| Door | Single swing door | ||
| Heat Insulating Material | Glass wool | ||
| Heater | Mica heater, 2.25 kW | Mica heater, 3.15 kW | |
| Vacuum Gauge | Bourdon tube type, 0~-0.1 MPa (Gauge pressure) | ||
| Observation Window | Tempered glass and polycarbonate resin plate | ||
| Temp. Control Method | PID control by microprocessor | ||
| Temp. Setting Method | Digital setting with ▲/▼ keys | ||
| Temp. Display Method | Green LED digital display | ||
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. | ||
| Min. Division | 1 min. or 10 mins. | ||
| Operation Function | Fixed temperature, Quick auto stop, Auto-start, Auto-stop, Program operation (16 segments) | ||
| Additional Functions | Calendar timer (max. 24 Hrs.), Integration time (max. 49999 Hrs.), Time display | ||
| Heater Circuit Control | Triac zero-cross control | ||
| Temp. Sensor | K-thermocouple (double sensor) | ||
| Safety Device | Self diagnostic functions (Sensor, Heater, Triac, Automatic overheating prevention), Independent overheating prevention, Key lock function, Electric leakage breaker | ||
| Internal Dimensions WxDxH | 450×450×450 mm | 600×600×600 mm | |
| External Dimensions WxDxH | 670×669×1500 mm | 820×819×1650 mm | |
| Internal Capacity | 91L | 216L | |
| Shelf Support Qty. / Pitch | 4 steps / 105mm | 4 steps / 140mm | |
| Exhaust Port / Purge Port | NW25 flange / Rc 1/4 (18mm O.D.) | ||
| Power Source | 220V, single phase, 11A (no plug, round terminal) | 220V, single phase, 15A (no plug, round terminal) | |
| Weight | ~190kg | ~290kg | |
| Shelf | 2 perforated stainless steel shelves | ||
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | DP43C (Vacuum Oven Programmable 91L 220V 11A 50/60hz), DP63C (Vacuum Oven Programmable 216L 220V 15A 50/60hz) |
