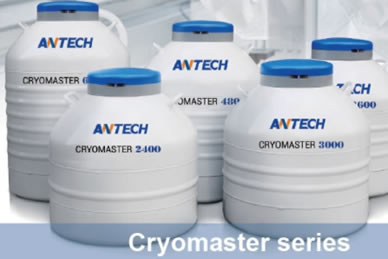

Cryomaster Series 600/750/900/2400/3000/3600/4800/6000 Antech Scientific
Cryomaster Series Liquid Nitrogen Container Combined With The Advantages Of Little Nitrogen Consumption And Medium Range Storage Capacity To Meet Different Needs Of Profe-Ssionals All Over The World
$872.50 – $4,893.75
Cryomaster series liquid nitrogen container combined with the advantages of little nitrogen consumption and medium range storage capacity to meet different needs of profe-ssionals all over the world. This kind of tank provides high efficiency of large capacity sample cryopreservation which with light weight and small space occupying. All models include racks and PC cryoboxes and lockable lids to assure the safety of samples. Mainly apply to medical field/biobank/laboratory.
- Equip with racks and box.
- Dual-lock construction.
- Durable aluminum construction.
- Larger storage capacity, less liquid nitrogen consumption.
- Compatible with all major storage box brands.
- Liquid level monitoring system optional.
- Mobile roller bases optional.
- 5 year vacuum warranty.
Real-time Liquid Level Monitoring System
Liquid level monitoring system continuously monitors the temperature inside the container. The liquid level monitoring system matchs all Cryomaster models,optimal choice for long time monitoring of samples storage. It realizes reminding users to add liquid nitrogen timely too. There are Cryomonitor 1000/2000 models
Automatically Filling System
It is very useful to fill liquid nitrogen automatically for long time sample storage in vapour phase. At the same time,it prevents users from adding liquid nitrogen frequently in liquid phase. Cryomonitor 2000 constantly monitors temperature inside the container, controlling liquid inputting solenoid value open and close, supplying liquid nitrogen timely which applies to the long-term samples storage. It may be not is not very economical for liquid nitrogen usage, however it provides users with precise control of the liquid nitrogen usage and more the 8 weeks liquid nitrogen supplement capability
Ultra Low-power Consumption Liquid Level Monitoring System
Data collected by Smart Sensor, and then transferred to cloud storage by Black Box. Users only have to log on Cold Cloud to query and download data. This system is the latest monitoring product easy installation and accurate data
| Technical Parameters | |||
| Model | Cryomaster 600 | Cryomaster 750 | Cryomaster 900 |
| Maximum storage capacity | |||
| Number of Racks (EA) | 6 | 6 | 6 |
| 1.2&2ml Vials (25/box) | 600 | 750 | 900 |
| Number of Boxes per Rack (EA) | 4 | 5 | 6 |
| Performance | |||
| Liquid Nitrogen Capacity (L) | 31.5 | 35 | 47 |
| Static Evaporation (L/day)* | 0.28 | 0.29 | 0.33 |
| Capacity (L) | 31.5 | 35 | 47 |
| Working Duration (whole day)** | 71 | 76 | 90 |
| Unit Dimensions | |||
| Neck Diameter (mm) | 125 | 125 | 127 |
| Overall Height (mm) | 659 | 700 | 753 |
| External Diameter (mm) | 461 | 461 | 461 |
| Weight Empty (kg) | 14.3 | 14.5 | 15.4 |
| Weight Liquid Full* (kg) | 38.9 | 43.3 | 53.9 |
| Model | Cryomaster 2400 | Cryomaster 3000 | Cryomaster 3600 | Cryomaster 4800 | Cryomaster 6000 |
| Maximum storage capacity | |||||
| Square Canisters (EA) | 6 | 6 | 6 | 6 | 6 |
| 1.2&2ml Vials (100/box) | 2400 | 3000 | 3600 | 4800 | 6000 |
| Number of Boxes per Canister (EA) | 4 | 5 | 6 | 8 | 10 |
| 5ml Vials (36/box) | 648 | 864 | 1080 | 1296 | 1728 |
| Number of Boxes per Canister (5ml*EA) | 3 | 4 | 5 | 6 | 8 |
| Performance | |||||
| Liquid Nitrogen Capacity (L) | 65 | 95 | 115 | 140 | 175 |
| Static Evaporation (L/day)* | 0.79 | 0.81 | 0.83 | 0.87 | 0.87 |
| Capacity (L) | 55 | 85 | 105 | 130 | 165 |
| Working Duration (whole day)** | 44 | 66 | 80 | 94 | 126 |
| Unit Dimensions | |||||
| Neck Diameter (mm) | 216 | 216 | 216 | 216 | 216 |
| Overall Height (mm) | 710 | 726 | 796 | 910 | 1026 |
| External Diameter (mm) | 681 | 681 | 681 | 681 | 681 |
| Weight Empty (kg) | 27.5 | 34.5 | 38.5 | 42.5 | 55 |
| Weight Liquid Full* (kg) | 80.8 | 112.4 | 132.8 | 157.3 | 198.5 |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | Cryomaster 600, Cryomaster 750, Cryomaster 900, Cryomaster 2400, Cryomaster 3000, Cryomaster 3600, Cryomaster 4800, Cryomaster 6000 |
