Automated multi-layer vessel monitoring system

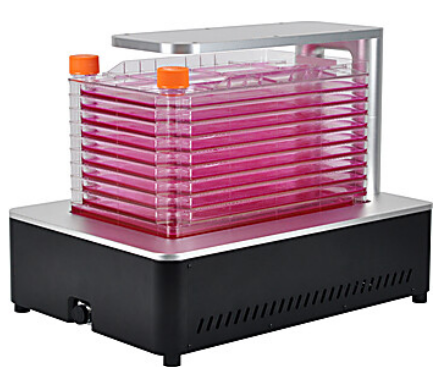

Celloger® Stack is an automated multi-layer vessel monitoring system that enables real-time imaging of cell samples while they are cultured in an incubator. The system is capable of detecting cells growing in a multi-layer chamber and identifying the optimal time for cell harvest. With its motorized camera that can move in all directions, the system captures multiple points within the travel range which can be made into a time-lapse video with a simple click.
Key features:
- Real-time monitoring inside an incubator – No need to take the cell sample out of the incubator, eliminating contamination concerns. By simply placing the culture vessel on the Celloger® Stack and connecting it to your laptop, you can observe the growth of your cells in real-time without removing them from the incubator.
- Multi-layer observation – Multi-layer observation up to 10 layers(image acquired from the bottom layer)
- Mass cell culture – Improved reproducibility for mass cell culture and production
- Multi-position imaging – A fully motorized camera allows multi-point imaging within a wide scanning area. The Celloger® Stack has a motorized camera that travels 11cm x 24cm, x and y axis respectively, multiple points within the travel range can be imaged according to a schedule set by the user. It is possible to set various imaging schedules based on your research protocol, and the schedule modification can be made easily through simple adjustments.
- Recording & Time-lapse video – Images captured according to set schedule can be made into videos in simple clicks
- Autofocusing – Increased focus speed and reproducibility with a reliable autofocusing function
Specifications | |||
Dimensions | 350 x 330 x 450 mm | ||
Weight | 15kg | ||
Objective Lens | 2X | ||
Imaging modes | Bright-field | ||
Imaging positions | Multiple | ||
Stage | Motorized XYZ (Camera moving) | ||
Camera | 5MP CMOS | ||
Field of view | 2.53 x 1.90 mm | ||
File export format | TIFF, AVI | ||
O/S required | Window 10 | ||
Storage | 1TB (recommended) | ||
Operating environment | 10~40?, 20~95% humidity | ||
Vessel types | Multi-layer chamber up to 10 layers | ||
21 CFR Part 11 | Available (optional) |
