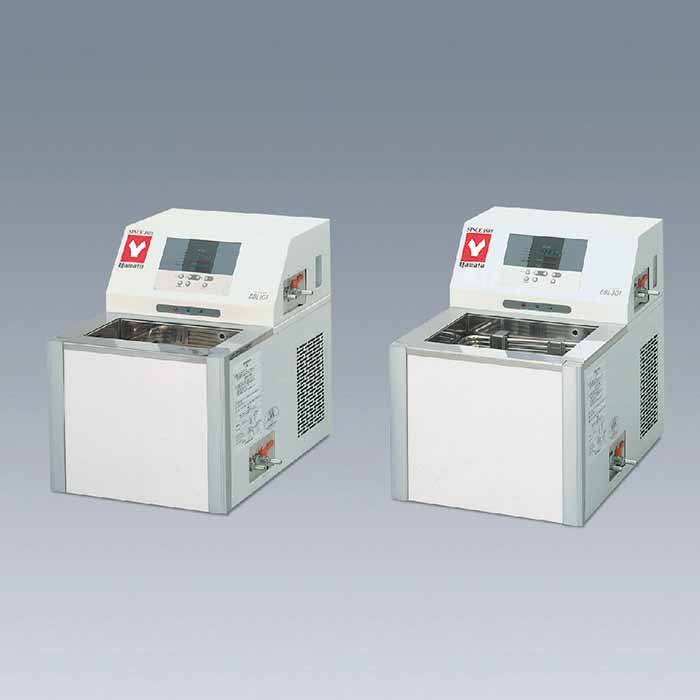

BBL101/301 Water Bath Yamato
Benchtop low constant temperature water bath at 8L/13L capacity with an operating temperature range of -10~80°C
$4,954.40 – $5,698.00
Benchtop low constant temperature water bath at 8L/13L capacity with an operating temperature range of -10~80°C
Features
Performance and functions
- Precision control with temperature adjustment accuracy of ±0.1°C
- More applications available with larger tank space

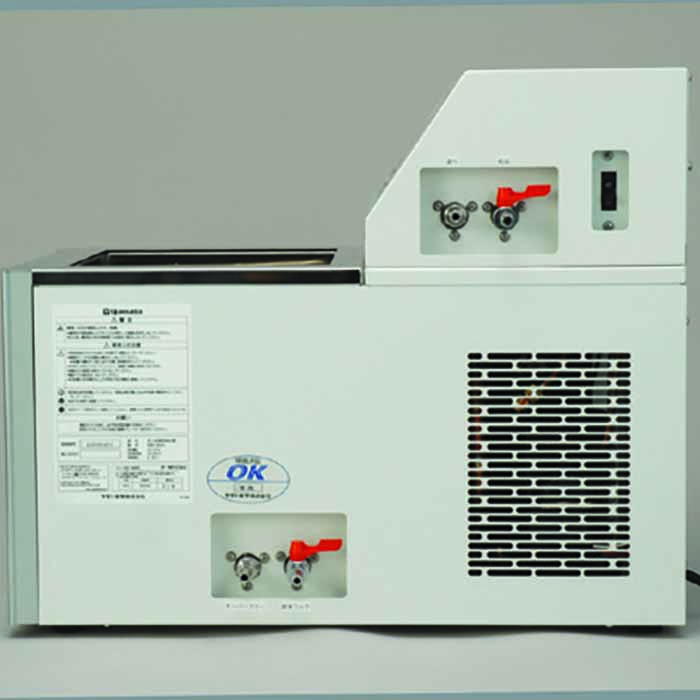

- Internal / External Circulation can be changed easily
- Shelf height is 2 stage adjustable for different flask sizes
- Standard equipped with auto stop, auto start, RS485 communication function, temperature output terminal (4~20mA)
- Enhanced safety features includes self diagnostic function, over-current circuit breaker, refrigerator overload relay, empty boiling prevention float switch, refrigerator protection delay timer function
| Model | BBL101 | BBL301 | |
| System | Pump circulation cooling / external circulation system | ||
| Temperature Control Range *¹ | -10~+80°C (at room temperature 20°C) | ||
| Temperature Adjustment Accuracy *¹ | ±0.1°C | ±0.1°C | |
| Temperature Distribution Accuracy *¹ | ±0.3°C | ±0.3°C | |
| Cooling Capacity *¹ | ~370W (320Kcal/h) (at liquid temp. 15°C) | ~410W (350Kcal/h) (at liquid temp. 15°C) | |
| Ambient Temperature *¹ | 5~30°C | 5~30°C | |
| Temperature Control | PID control | PID control | |
| Operation Function | Fix temperature, Auto stop, Auto start | ||
| Temperature Sensor | Double sensor: Pt100Ω (for temp. control) and K-thermocouple (for overheat prevention device) | ||
| Refrigerator / Coolant | 160W Air-cooled fully closed compressor R134A | 300W Air-cooling sealed rotary R404A | |
| Circulation Method | Magnet pump circulation | Magnet pump circulation | |
| Circulation System Capacity (50/60 Hz) | Maximum flow rate (pump capacity): 3.7/4.7L/min. (11.0/12.0L/min.) | ||
| Maximum pump head (pump capacity): 1.0/1.5m (1.5/2.1m) | |||
| Heater | 700W | 900W | |
| Safety Device | Earth leakage breaker, refrigerator overload relay protecting circuit, refrigerator pressure detection, empty boiling prevention float switch, delay timer for refrigerator protection, overheating prevention device, power failure protection function, key lock function | ||
| Other Functions | Drain port, condenser filter, RS485 communication function, temperature output terminal, refrigerator pressure switch indicator, calibration offset | ||
| Bath Dimensions *² | W300 x D150 x H177.5 (Effective dimensions 238 x 100 x 85mm) |
W300 x D240 x H177.5 (Effective dimensions 238 x 190 x 85mm) |
|
| Internal (Effective) Capacity | 8 (6.95) L | 13 (11.5) L | |
| External Dimensions *² | W500 x D530 x H500mm (water bath height 330mm) |
W502 x D603 x H500mm (water bath height 330mm) |
|
| Power Source (50/60Hz) | AC115V 8A / 220V 4A | AC115V 11A / 220V 6A | |
| Weight | ~50kg | ~55kg | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | BBL101 (Low Constant Temp Water Bath 8L 115/220V), BBL301 (Low Constant Temp Water Bath 13L 220V) |
