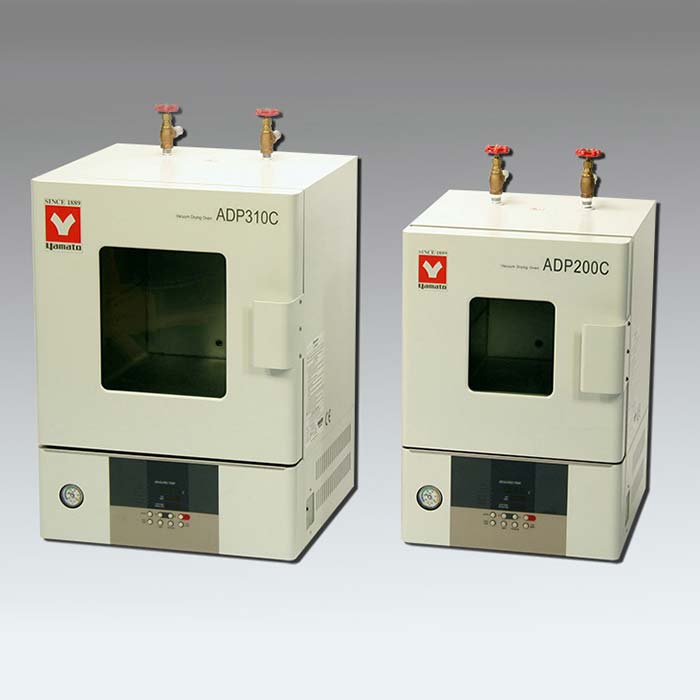

Standard small size benchtop vacuum drying ovens with enhanced safety features
Operation and functions
- Easy input of parameters and settings
- Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations
- Self-diagnostic and overheating prevention functions
- Silicon rubber door seal prevents air from leaking
- Independent over heating prevention device for each circuit
- Customizable with N₂ gas inlet and communication ports
- Calibration off-set function
- Easy maintenance
Safety features
- Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error
| Model | ADP200C ADP210C |
ADP300C ADP310C |
|

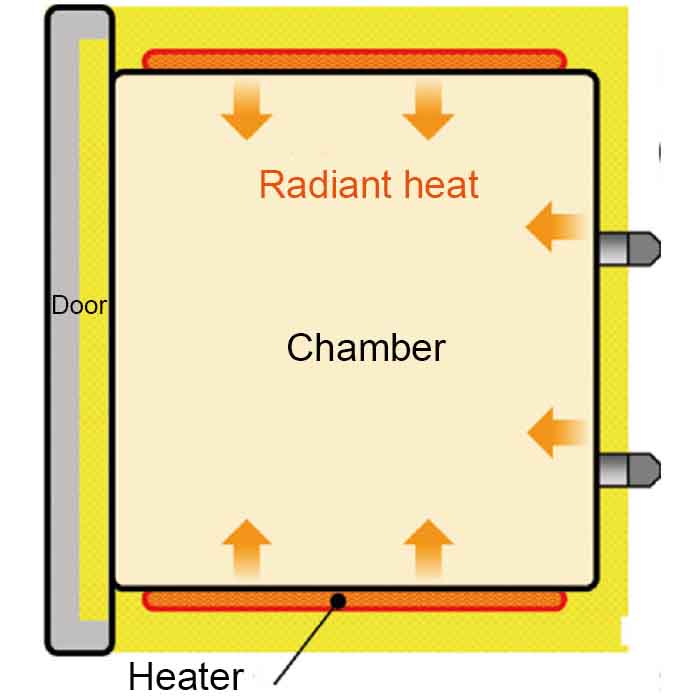

| System | Vacuum drying by decompressed chamber direct heating | ||
| Operating Temp. Range | 40~240°C | ||
| Operating Pressure Range | 101~0.1kPa (760~1 Torr) | ||
| Temp. Control Accuracy | ±1.5°C (at 240°C) | ||
| Max. Temp. Reaching Time | ~70min. | ~100min. | |
| Interior Material | Stainless steel | ||
| Temp. Control Method | PlD control by microprocessor | ||
| Sensor | K-thermocouple | ||
| Temp. Setting Method | Digital setting by ▲/▼ keys | ||

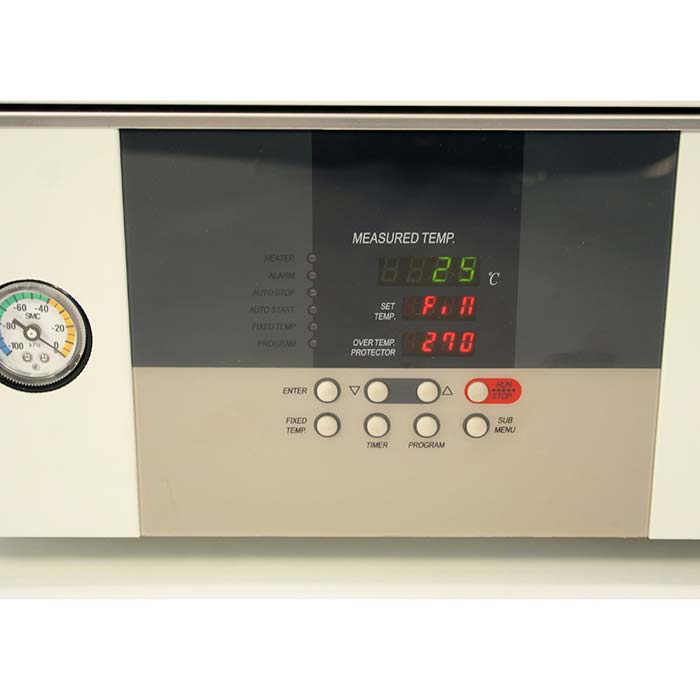

| Temp. Display Method | Measurement temp.: Digital display by green LED / Setting temp.: Digital display by red LED | ||
| Timer | 1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. and 50 min. / Digital display | ||
| Heater | Mica heater / 0.68kW | Mica heater / 1.05kW | |
| Heat Insulating Material | Rock wool | ||
| Observation Window | Tempered glass (12 mm thickness) and polycarbonate resin plate | ||
| Vacuum Gauge | Bourdon tube type, 0~0.1 MPa (Gauge pressure) | ||
| Safety Device | Self diagnostic functions (Heater, Sensor, SSR short circuit, automatic overheat prevention function), over current electric leakage breaker, overheating prevention device | ||
| Internal Dimensions WxDxH | 200 x 250 x 200mm | 300 x 300 x 300mm | |
| External Dimensions WxDxH | 400 x 412 x 603mm | 500 x 465 x 705mm | |
| Internal Capacity | 10L | 27L | |
| Shelf Loading | ~15kg / pcs | ||
| Shelf Rest Step Number | 2 steps | 3 steps | |
| Shelf Rest Pitch | 65mm | 75mm | |
| Vacuum Port | O.D.18mm | ||
| Power Source | AC115V 6A (with plug) AC220V 3.5A (no plug, round terminal) |
AC115V 9.5A (with plug) AC220V 5A (no plug, round terminal) |
|
| Weight | ~30kg | ||
| Accessories | Shelf plate (Aluminum perforated metal) 2 pcs. | Shelf plate (Aluminum perforated metal) 3 pcs. | |
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Product | ADP200C (Vacuum Oven Programmable 10L 115V 6A 50/60hz), ADP210C (Vacuum Oven Programmable 10L 220V 3.5A 50/60hz), ADP300C (Vacuum Oven Programmable 27L 115V 9.5A 50/60hz), ADP310C (Vacuum Oven Programmable 27L 220V 5A 50/60hz) |
