Incubators, Laboratory Equipment

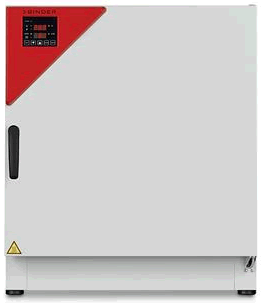

9040-0112,9040-0113,9040-0115,9040-0116 Series C CO2 Incubators with Hot Air Sterilization Binder
$9,988.00
- Temperature range: room temperature plus 7°C to 50°C
- Humidity range: up to 95% RH
- Auto-sterilization with hot air at 180°C
- Humidification system with condensation protection
- CO2 gas-mixing jet with Venturi effect
- CO2 sensor with infrared technology
- Display with 3-digit, 7-segment LEDs
- Door hinged right or left
- Tightly-sealed inner door made of tempered safety glass
- Seamless, deep-drawn inner stainless steel chamber
- 3 perforated stainless steel shelves
- Units are stackable with stacking adapter
- Troubleshooting system with visual and audible alarms
- Zero-voltage alarm contact
| Description | C170-230V-R | C170-230V-L | C170UL-120V-R | C170UL-120V-L |
| Article Number | 9040-0112 | 9040-0115 | 9040-0113 | 9040-0116 |
| Performance Data Temperature | ||||
| Temperature range 7 °C above ambient temperature to [°C] | 50 | 50 | 50 | 50 |
| Temperature uniformity at 37 °C [± K] | 0.3 | 0.3 | 0.3 | 0.3 |
| Temperature fluctuation [± K] | 0.1 | 0.1 | 0.1 | 0.1 |
| Recovery time after 30 seconds door open at 37 °C [min] | 6 | 6 | 6 | 6 |
| Recovery time after 30 seconds door open at 5 Vol.-% CO2 [min] | 5 | 5 | 5 | 5 |
| Performance Data Climate | ||||
| Humidity range [% RH] | 90…95 | 90…95 | 90…95 | 90…95 |
| Gas Data – CO2-Data | ||||
| CO2 range [Vol.-% CO2] | 0…20 | 0…20 | 0…20 | 0…20 |
| CO2 measurement | IR | IR | IR | IR |
| Electrical data | ||||
| Rated Voltage [V] | 230 | 230 | 120 | 120 |
| Power frequency [Hz] | 50/60 | 50/60 | 60 | 60 |
| Nominal power [kW] | 1.1 | 1.1 | 1.1 | 1.1 |
| Unit fuse [A] | 10 | 10 | 10 | 10 |
| Phase (Nominal voltage) | 1~ | 1~ | 1~ | 1~ |
| Measures – Outer dimensions | ||||
| Width net [in] | 29.16 | 29.16 | 29.16 | 29.16 |
| Height net [in] | 34.28 | 34.28 | 34.28 | 34.28 |
| Depth net [in] | 28.17 | 28.17 | 28.17 | 28.17 |
| Wall clearance back [in] | 3.94 | 3.94 | 3.94 | 3.94 |
| Wall clearance sidewise [in] | 1.97 | 1.97 | 1.97 | 1.97 |
| Measures – Doors | ||||
| Inner doors | 1 | 1 | 1 | 1 |
| Unit doors | 1 | 1 | 1 | 1 |
| Measures – Internal Dimensions | ||||
| Width [in] | 22.06 | 22.06 | 22.06 | 22.06 |
| Height [in] | 23.64 | 23.64 | 23.64 | 23.64 |
| Depth [in] | 19.7 | 19.7 | 19.7 | 19.7 |
| Measures | ||||
| Interior volume [cu.ft.] | 5.9 | 5.9 | 5.9 | 5.9 |
| Net weight of the unit (empty) [lbs] | 243 | 243 | 243 | 243 |
| Load per rack [lbs] | 22 | 22 | 22 | 22 |
| Environment-specific data | ||||
| Energy consumption at 37 °C | 90 Wh/h | 90 Wh/h | 90 Wh/h | 90 Wh/h |
| Environment-specific data | ||||
| Number of shelves (standard/maximum) | 3/8 | 3/8 | 3/8 | 3/8 |
| Weight | 243 lbs |
|---|---|
| Dimensions | 28.17 × 29.16 × 34.28 in |
| Product | 9040-0116(C170 CO2 Incubator, Hinged Left, 168L, 120V 60Hz), 99040-0115(C170 CO2 Incubator, Hinged Left, 168L, 230V 50/60Hz), 9040-0113(C170 CO2 Incubator, Hinged Right, 168L, 120V 60Hz), 9040-0112(C170 CO2 Incubator, Hinged Right, 168L, 230V 50/60Hz) |
