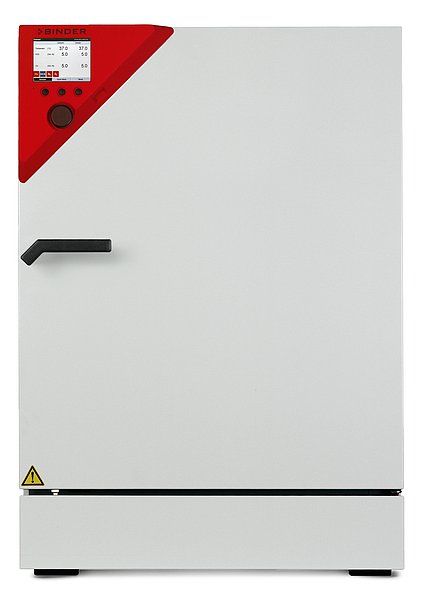

9040-0096,9040-0108,9040-0098, 9040-0110,9040-0097,9040-0109,9040-0099,9040-0111 CO2 Incubator Model CB 220 Binder
$18,456.00 – $22,738.00
Important characteristics
- Temperature range: room temperature plus 7 °C to 60 °C
- Humidity range: up to 95% RH
- Alternative O₂ control ranges: 0.2-20 vol. % O₂ or 10-95 vol. % O₂ (O, GO versions)
- Auto-sterilization with hot air at 180 °C
- Double-pan humidification system with condensation protection
- CO₂ gas-mixing jet with Venturi effect
- Hot-air sterilizable CO₂ sensor with infrared technology

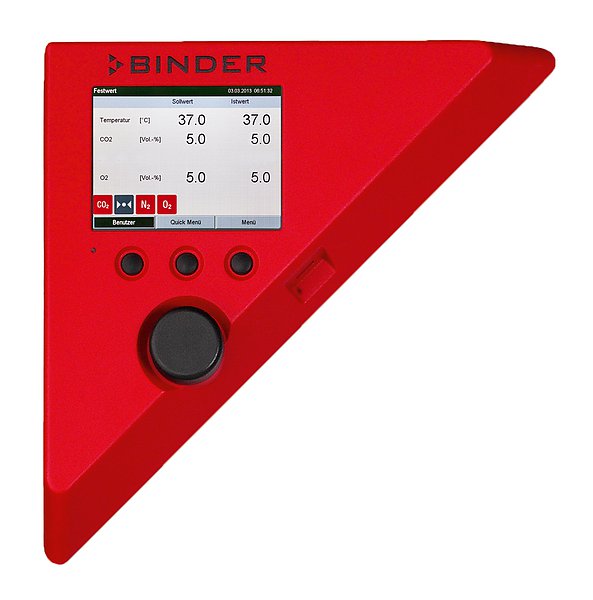

- Display via color LCD monitor
- Lockable door handle
- Tightly-sealed inner door made of tempered safety glass
- Seamless, deep-drawn inner stainless steel chamber
- 3 perforated stainless steel shelves
- Units are stackable with stacking adapter
- Troubleshooting system with visual and audible alarms
- Computer interface: Ethernet
- Internal data recording and USB interface
- Zero-voltage alarm contact
| Designation | CB220-230V¹ | CB220-230V-G¹ | CB220-230V-O¹ | CB220-230V-GO¹ | CB220UL-120V¹ | CB220UL-120V-G¹ | CB220UL-120V-O¹ | CB220UL-120V-GO¹ |
| Option model | Standard | with 6x divided inner door | with O₂ control | with O₂ control and with 6x divided inner door | Standard | with 6x divided inner door | with O₂ control | with O₂ control and with 6x divided inner door |
| Order number | 9040-0096 | 9040-0108 | 9040-0098 | 9040-0110 | 9040-0097 | 9040-0109 | 9040-0099 | 9040-0111 |
| Measures | ||||||||
| Interior volume [L] | 210 | 210 | 210 | 210 | 210 | 210 | 210 | 210 |
| Net weight of the unit (empty) [kg] | 121 | 129 | 125 | 132 | 121 | 129 | 125 | 132 |
| permitted load [kg] | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Load per rack [kg] | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Doors | ||||||||
| Inner doors | 1 | 6 | 1 | 6 | 1 | 6 | 1 | 6 |
| Unit doors | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Internal Dimensions | ||||||||
| Width [mm] | 560 | 560 | 560 | 560 | 560 | 560 | 560 | 560 |
| Height [mm] | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 |
| Depth [mm] | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |

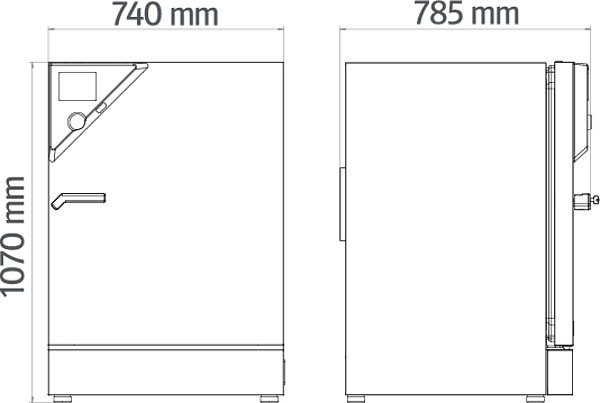

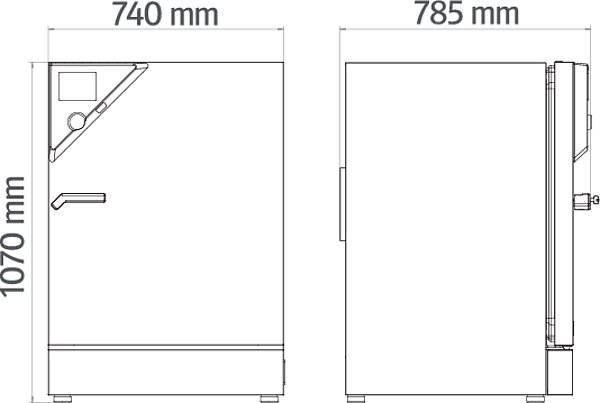

| Outer dimensions | ||||||||
| Width net [mm] | 740 | 740 | 740 | 740 | 740 | 740 | 740 | 740 |
| Height net [mm] | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 | 1070 |
| Depth net [mm] | 715 | 715 | 715 | 715 | 715 | 715 | 715 | 715 |
| Wall clearance back [mm] | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Wall clearance sidewise [mm] | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Environment-specific data | ||||||||
| Energy consumption at 37 °C [Wh/h] | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Fixtures | ||||||||
| Number of shelves (std./max.) | 3/8 | 3/3 | 3/8 | 3/3 | 3/8 | 3/3 | 3/8 | 3/3 |
| Performance Data Temperature | ||||||||
| Temperature range 7 °C above ambient temperature to [°C] | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Temperature variation at 37 °C [± K] | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Temperature fluctuation at 37 °C [± K] | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Recovery time after 30 seconds door open at 37 °C [min] | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Performance Data Climate | ||||||||
| Humidity range [% RH] | 90…95 | 90…95 | 90…95 | 90…95 | 90…95 | 90…95 | 90…95 | 90…95 |
| CO₂-Data | ||||||||
| CO₂ range [Vol.-% CO₂] | 0…20 | 0…20 | 0…20 | 0…20 | 0…20 | 0…20 | 0…20 | 0…20 |
| CO₂ measurement | IR | IR | IR | IR | IR | IR | IR | IR |
| CO₂ Recovery time after 30 seconds door open at 5 Vol.-% CO₂ [min] | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Electrical data | ||||||||
| Rated Voltage [V] | 200…240 | 200…240 | 200…240 | 200…240 | 100…120 | 100…120 | 100…120 | 100…120 |
| Power frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Nominal power [kW] | 1.5 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Unit fuse [A] | 10 | 10 | 10 | 10 | 16 | 16 | 16 | 16 |
| Phase (Nominal voltage) [ph] | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| O₂-Data | ||||||||
| Standard O₂ control ranges: O₂ range [Vol.-% O₂] | – | – | 0.2…20 | 0.2…20 | – | – | 0.2…20 | 0.2…20 |
| O₂ control ranges with option: O₂ range [Vol.-% O₂] | – | – | 10…95 | 10…95 | – | – | 10…95 | 10…95 |
| O₂ Recovery time after 30 seconds door open at 5 Vol.-% O₂ [min] | – | – | 18 | 18 | – | – | 18 | 18 |
| Weight | N/A |
|---|---|
| Dimensions | 28.2 × 29.2 × 42.2 in |
| Product | 9040-0096(CB220-230V¹), 9040-0108(CB220-230V-G¹), 9040-0098(CB220-230V-O¹), 9040-0110(CB220-230V-GO¹), 9040-0097(CB220UL-120V¹), 9040-0109(CB220UL-120V-G¹), 9040-0099(CB220UL-120V-O¹), 9040-0111(CB220UL-120V-GO¹) |
