Environmental Chambers, Laboratory Equipment

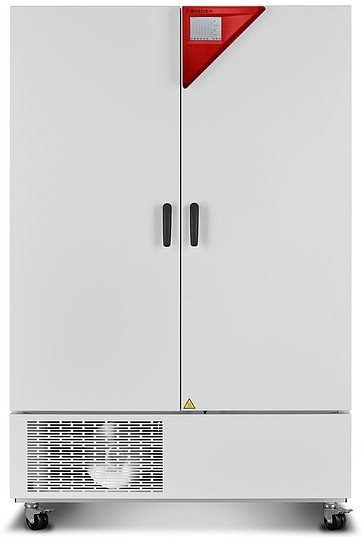

9020-0337 KBWF 720 Growth Chamber with Light & Humidity, 700L, 200-240V/50 Hz/1 ph Binder
Climate chambers with illumination and humidity The BINDER KBWF series shines with its homogeneous light distribution with natural illumination from above. It creates consistent climate conditions – even with illumination.
$35,345.00
Climate chambers with illumination and humidity The BINDER KBWF series shines with its homogeneous light distribution with natural illumination from above. It creates consistent climate conditions – even with illumination
Important characteristics
- Temperature range: 0 °C to 70 °C
- Temperature range with light: 10 °C to 60 °C
- Humidity range: 10 % to 80 % RH
- 3 positionable illumination cassettes, each with 5 fluorescent tubes
- APT.line™ preheating chamber technology
- Adjustable fan speed
- Humidity regulation with capacitative humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Display via color LCD monitor
- Tight-sealing inner door made of safety glass (ESG) with special TIMELESS coating
- 3 stainless steel racks
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
| Designation | KBWF720-230V¹ | |
| Option model | Standard | |
| Order number | 9020-0337 | |
| Measures | ||
| Interior volume [L] | 700 | |
| Net weight of the unit (empty) [kg] | 374 | |
| permitted load [kg] | 150 | |
| Load per rack [kg] | 45 | |
| Doors | ||
| Inner doors | 2 | |
| Unit doors | 2 | |
| Internal Dimensions | ||
| Width [mm] | 973 | |
| Height [mm] | 1250 | |
| Depth [mm] | 576 | |

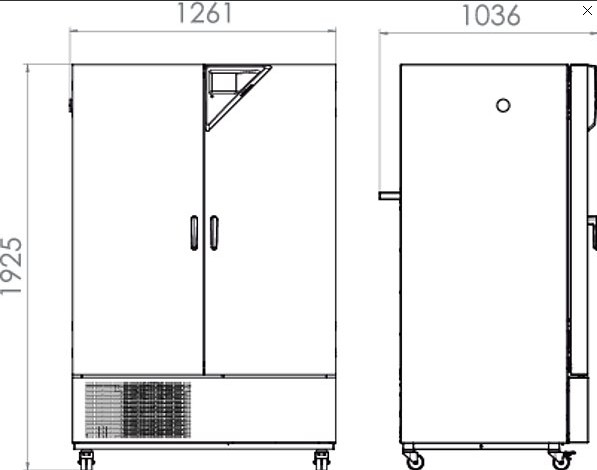

| Outer dimensions | ||
| Width net [mm] | 1250 | |
| Height net [mm] | 1925 | |
| Depth net [mm] | 890 | |
| Wall clearance sidewise [mm] | 200 | |
| Wall clearance back [mm] | 100 | |
| Environment-specific data | ||
| Sound-pressure level [dB(A)] | 59 | |
| Fixtures | ||
| Number of shelves (std./max.) | 3/12 | |
| Number of illumination cassettes (std./max.) | 3/3 | |
| Performance Data Temperature | ||
| Temperature range without illumination cassettes [°C] | 0…70 | |
| Temperature range with 100% illumination [°C] | 10…60 | |
| Performance Data Climate | ||
| Temperature range without illumination cassettes [°C] | 10…70 | |
| Temperature range with 100% illumination [°C] | 20…60 | |
| Humidity range without illumination [% RH] | 10…80 | |
| Humidity range with illumination cassettes, with illumination [% RH] | 10…75 | |
| Lightdata per Illumination Cassettes | ||
| Daylight tubes [W/m²]* | 38 | |
| Daylight tubes [lx]* | 13000 | |
| Fluora® growth lamps [W/m²]* | 36 | |
| Fluora® growth lamps [lx]* | 10500 | |
| Arabidopsis lamps [W/m²]* | 43 | |
| Arabidopsis lamps [lx]* | 14000 | |
| Electrical data | ||
| Rated Voltage [V] | 200…240 | |
| Power frequency [Hz] | 50 | |
| Nominal power [kW] | 3.5 | |
| Unit fuse [A] | 16 | |
| Phase (Nominal voltage) [ph] | 1 | |
| Weight | 824.6 lbs |
|---|---|
| Dimensions | 35.1 × 49.3 × 75.8 in |
