Incubators, Laboratory Equipment
9020-0304,9020-0202 KB 240 Cooling Incubator, 247L, 100-120V/60Hz Binder
The most versatile among the cooled incubators for microorganisms: The BINDER KB series cooled incubator controls temperature ranges of -5 °C to 100 °C.
$12,330.00
The most versatile among the cooled incubators for microorganisms: The BINDER KB series cooled incubator controls temperature ranges of -5 °C to 100 °C. With its comprehensive program functions, this cooled incubator offers a wide range of capabilities and delivers reproducible test results.
- Temperature range: -5 °C to 100 °C
- APT.line™ preheating chamber technology
- Up to 30% lower energy consumption compared to the previous model
- Cooling with compressor cooling unit
- Door heating
- Adjustable fan speed
- Controller with time-segment and real-time programming
- Inner door made of tempered safety glass
- 2 stainless steel racks
- 4 casters, two with locking brakes
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
- Computer interface: Ethernet
| Designation | KB240-230V¹ | KB240UL-120V¹ |
| Option model | Standard | Standard |
| Order number | 9020-0202 | 9020-0304 |
| Measures | ||
| Interior volume [L] | 247 | 247 |
| Net weight of the unit (empty) [kg] | 171 | 171 |
| permitted load [kg] | 100 | 100 |
| Load per rack [kg] | 30 | 30 |
| Doors | ||
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 650 | 650 |
| Height [mm] | 785 | 785 |
| Depth [mm] | 485 | 485 |

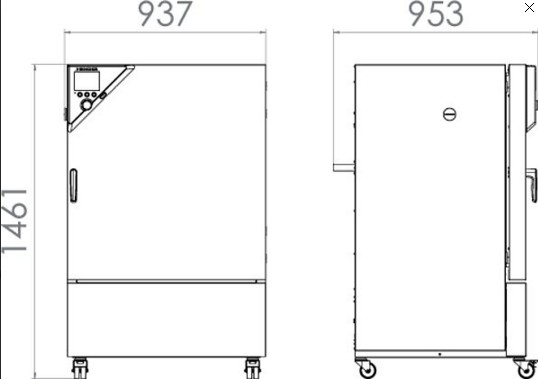

| Outer dimensions | ||
| Width net [mm] | 925 | 925 |
| Height net [mm] | 1465 | 1465 |
| Depth net [mm] | 800 | 800 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Wall clearance back [mm] | 100 | 100 |
| Environment-specific data | ||
| Energy consumption at 37 °C [Wh/h] | 270 | 270 |
| Sound-pressure level [dB(A)] | 53 | 53 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/9 | 2/9 |
| Performance Data Temperature | ||
| Temperature range [°C] | -5…100 | -5…100 |
| Temperature variation at 37 °C [± K] | 0.2 | 0.2 |
| Temperature fluctuation at 37 °C [± K] | 0,1 ± K | 0,1 ± K |
| Recovery time after 30 seconds door open at 37 °C [min] | 2 | 2 |
| Electrical data | ||
| Rated Voltage [V] | 200…240 | 100…120 |
| Power frequency [Hz] | 50 | 60 |
| Nominal power [kW] | 0 | 1.2 |
| Unit fuse [A] | 16 | 16 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 377 lbs |
|---|---|
| Dimensions | 31.5 × 36.5 × 57.7 in |
| Product | 9020-0304(KB 240 Cooling Incubator, 247L, 100-120V/60Hz), 9020-0202(KB 240 Cooling Incubator, 247L, 200-240V/50Hz) |
