9020-0239/9020-0218/9020-0238/9020-0216 Ultra.Guard™ Ultra Low Temperature Freezer UF V 700 Binder
An ultra low temperature freezer must reliably cool to maintain the value of the samples. This crucial laboratory requirement is supplemented by the necessity of a practical and user-oriented safety and control concept, e. G. By the effortless traceability of the temperature profile throughout the storage period or opening of the chamber easily.
$20,997.00 – $21,315.00
| Description | Voltage | Volume | Exterior Dimensions | Interior Dimensions | Temperature Range | Catalog Number | |
| UF V 700 Freezer, Right Hinge | 115V, 60 Hz | 700 L (24.7 cu. ft.) | 120 x 197 x 93.5 cm (47.2 x 77.6 x 36.8″) | 91.2 x 130 x 60 cm (35.9 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0239 | |
| UF V 700 Freezer, Left Hinge | 115V, 60 Hz | 700 L (24.7 cu. ft.) | 120 x 197 x 93.5 cm (47.2 x 77.6 x 36.8″) | 91.2 x 130 x 60 cm (35.9 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0218 | |
| UF V 700 Freezer, Right Hinge | 200–240V, 60Hz | 700 L (24.7 cu. ft.) | 120 x 197 x 93.5 cm (47.2 x 77.6 x 36.8″) | 91.2 x 130 x 60 cm (35.9 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0238 | |
| UF V 700 Freezer, Left Hinge | 200–240V, 60Hz | 700 L (24.7 cu. ft.) | 120 x 197 x 93.5 cm (47.2 x 77.6 x 36.8″) | 91.2 x 130 x 60 cm (35.9 x 51.2 x 23.6″) | –86 to –40°C (–123 to –40°F) | 9020-0216 | |
- GUARD.CONTROL automatic door mechanism for easy opening and closing.
- PDF data logger for temperature recording with USB port.
- Vacuum Insulation Panels (VIP) on 5 sides.
- Two-stage cascade refrigeration system with hermetically-sealed compressors.
- User-friendly microprocessor controller with easy to read LED displayEasy to read digital display.
- Alarm test system.
- Non-flammable refrigerant, CFC-free, proven industrial standard.
- Built-in visual and audible alarm system visual and audible alarm system.
- Power failure, temperature alarm, battery alarm.
- Temperature range: -40 °C to -86 °C / -40 °F to -122.8 °F.
- Battery back-up systemProvides full functionality of alarm functions in case of power failure for 72 hours.
- Improved battery life due to controlled charging.
- Heated duplex door gasket reduces icing.
- Multiple standard communication interfaces:
- RS 422 interfaceZero-voltage relay alarm output.
- Analog output 4-20 mA.
- Inner chamber made of high-quality stainless steel.
- Robust, adjustable and lockable casters.
- Easy front access for air filter cleaning.
- SERVICE.PRO 2-year warranty plus 4 year warranty extension.
- BINDER test confirmation.
| UF V 500 | ||

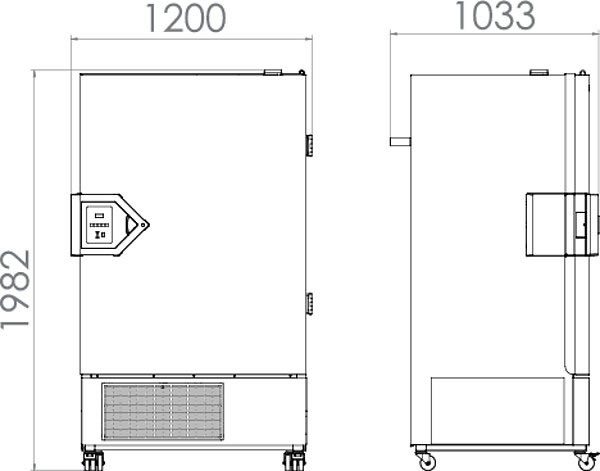

| Exterior dimensions | ||
| Width including hinges, housing of door lock and controller (mm/inch) | 1200 / 47.24 | |
| Height including vertically adjustable castors (mm/inch) | 1970 / 77.56 | |
| Depth (mm/inch) | 890 / 35.04 | |
| Depth including power connection, housing of door lock and controller (mm/inch) | 940 / 37.01 | |
| Wall clearance rear (mm/inch) | 100 / 3.94 | |
| Wall clearance side (side without hinges) (mm/inch) | 100 / 3.94 | |
| Wall clearance side (side with hinges) (mm/inch) | 245 / 9.65 | |
| Interior dimensions | ||

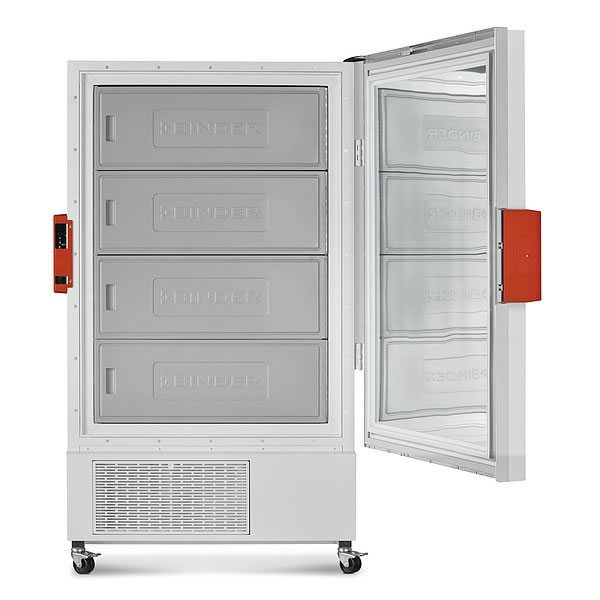

| Number of compartments | 4 | |
| Number of shelves | 3 | |
| Width of interior (mm/inch) | 911 / 35.87 | |
| Width of shelf (mm/inch) | 880 / 34.65 | |
| Height of interior (mm/inch) | 1300 / 51.18 | |
| Depth of interior / Depth of shelf (mm/inch) | 600 / 23.62 | |
| Interior volume, total (l/cu.ft.) | 711 / 25.12 | |
| Permitted load of individual compartment (kg/lbs.) | 65 / 143 | |
| Permitted total load (kg/lbs.) | 260 / 574 | |
| Weight of the unit (empty) (kg/lbs.) | 360 / 795 | |
| Temperature data | ||
| Control range (°C/°F) | -86 to -40 / -122 to -40 | |
| Setting range (°C/°F) | -90 to -40 / -130 to -40 | |
| Average temperature variation (±K) 3) | 2.5 | |
| Cooling down time from +25 °C (77 °F) to -80 °C (-112 °F) (h) 1) | 9 | |

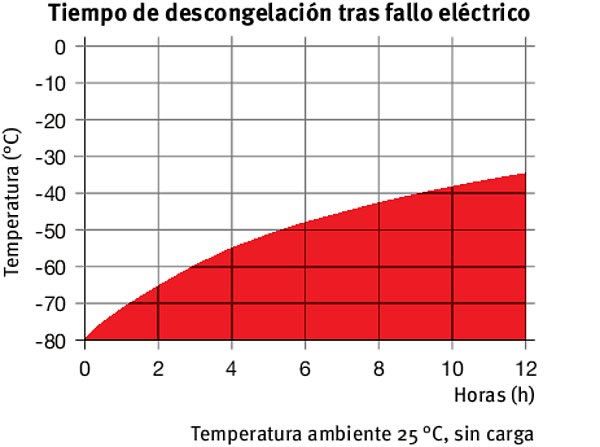

| Heating up time in case of power failure from -80 °C (-112 °F) to -60 °C (-76 °F) (h) | 3 | |
| Electrical data | ||
| IP protection class according to EN 60529 | 20 | |
| Nominal voltage (±10 %) 60 Hz (V) | 115 / 208-240 | |
| Energy consumption at -80 °C (-112 °F) and Tu = 25 °C (77 °F) (KWh/day) | 16.2 | |
| Average heat dissipation at set value -80 °C (-112 °F) and Tu = 25 °C (77 °F) (W) 2) | 680 | |
| Noise level (dB(A)) | 49 | |
| Weight | 795 lbs |
|---|---|
| Dimensions | 36.8 × 47.2 × 77.6 in |
| Product | 9020-0239, 115V right hinged door, 9020-0218, 115V left hinged door, 9020-0238, 220V right hinged door, 9020-0216, 220V left hinged door |
