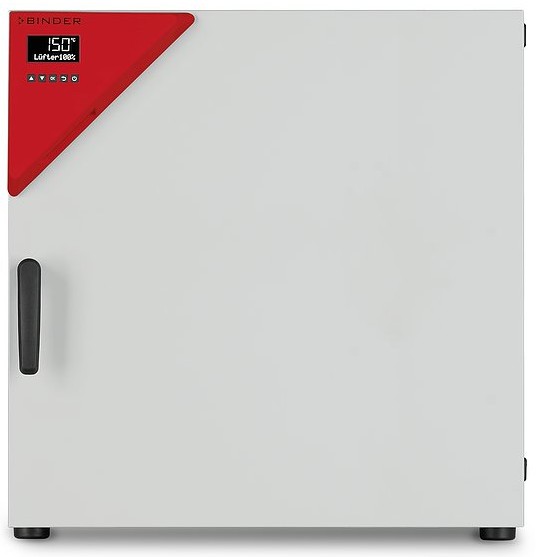

9010-0336,9010-03353 ED 115 Drying & Heating Chamber, 115L Binder
The strengths of a drying chamber of the BINDER ED series are the routine drying and sterilization tasks at temperatures of up to 300 ° C.
$2,702.00
The strengths of a drying chamber of the BINDER ED series are the routine drying and sterilization tasks at temperatures of up to 300 ° C. Thanks to natural convection, in this drying chamber all thermal processes are developed with maximum efficiency. The ED series provides fast and homogeneous drying.
Important characteristics
- Temperature range: ambient temperature plus 5 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
| Designation | ED115-230V¹ | ED115UL-120V¹ |
| Option model | Standard | Standard |
| Order number | 9010-0335 | 9010-0336 |
| Measures | ||
| Interior volume [L] | 114 | 114 |
| Net weight of the unit (empty) [kg] | 54 | 54 |
| permitted load [kg] | 150 | 150 |
| Load per rack [kg] | 30 | 30 |
| Doors | ||
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 510 | 510 |
| Height [mm] | 530 | 530 |
| Depth [mm] | 425 | 425 |

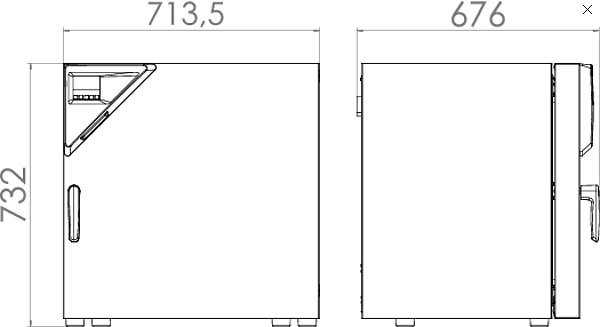

| Outer dimensions | ||
| Width net [mm] | 710 | 710 |
| Height net [mm] | 735 | 735 |
| Depth net [mm] | 605 | 605 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Wall clearance back [mm] | 160 | 160 |
| Environment-specific data | ||
| Energy consumption at 150 °C [Wh/h] | 245 | 245 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/5 | 2/5 |
| Performance Data Temperature | ||
| Temperature range 5 °C above ambient temperature to [°C] | 300 | 300 |
| Temperature variation at 150 °C [± K] | 1.5 | 1.5 |
| Temperature fluctuation at 150 °C [± K] | 0.4 | 0.4 |
| Heating-up time to 150 °C [min] | 45 | 45 |
| Recovery time after 30 seconds door open at 150 °C [min] | 16 | 16 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 120 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 1.25 | 1.35 |
| Unit fuse [A] | 6.3 | 12.5 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 119.1 lbs |
|---|---|
| Dimensions | 23.9 × 28 × 29 in |
| Product | 9010-0336(ED 115 Drying & Heating Chamber, 115L, 120V/60Hz), 9010-0335(ED 115 Drying & Heating Chamber, 115L, 230V/50-60Hz) |
