9010-0322,9010-0321 BF 720 Incubator with forced convection, 720L Binder
The BINDER incubator of the BF series with mechanical convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs.
$11,576.00
The BINDER incubator of the BF series with mechanical convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.
Important characteristics
- Temperature range: ambient temperature plus 10 °C to 100 °C
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap/li>
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
Ergonomic handle design - USB port for recording data
| Designation | BF720-230V¹ | BF720UL-240V¹ |
| Option model | Standard | Standard |
| Order number | 9010-0321 | 9010-0322 |
| Measures | ||
| Interior volume [L] | 734 | 734 |
| Net weight of the unit (empty) [kg] | 166 | 166 |
| permitted load [kg] | 315 | 315 |
| Load per rack [kg] | 45 | 45 |
| Doors | ||
| Inner doors | 2 | 2 |
| Unit doors | 2 | 2 |
| Internal Dimensions | ||
| Width [mm] | 1000 | 1000 |
| Height [mm] | 1300 | 1300 |
| Depth [mm] | 565 | 565 |

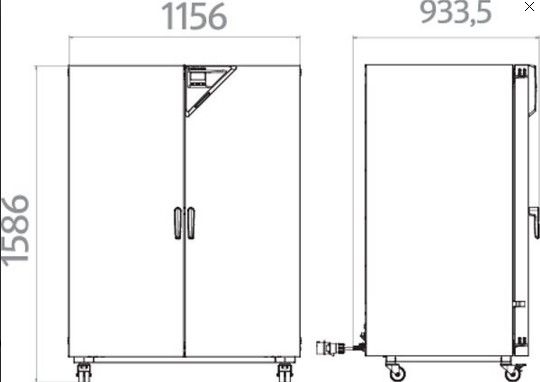

| Outer dimensions | ||
| Width net [mm] | 1165 | 1165 |
| Height net [mm] | 1590 | 1590 |
| Depth net [mm] | 870 | 870 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Wall clearance back [mm] | 160 | 160 |
| Wall clearance sidewise | 100 mm | 100 mm |
| Fixtures | ||
| Number of shelves (std./max.) | 2/16 | 2/16 |
| Performance Data Temperature | ||
| Temperature range 10 °C above ambient temperature to [°C] | 100 | 100 |
| Temperature variation at 37 °C [± K] | 0.3 | 0.3 |
| Temperature fluctuation at 37 °C [± K] | 0,1 ± K | 0,1 ± K |
| Heating-up time to 37 °C [min] | 15 | 15 |
| Recovery time after 30 seconds door open at 37 °C [min] | 4 | 4 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 240 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 1.75 | 1.85 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 366 lbs |
|---|---|
| Dimensions | 34.3 × 45.9 × 62.6 in |
| Product | 9010-0322(BF 720 Incubator with forced convection, 720L, 120V/60 Hz/1 ph), 9010-0321(BF 720 Incubator with forced convection, 720L, 230V/50-60 Hz/1 ph) |
