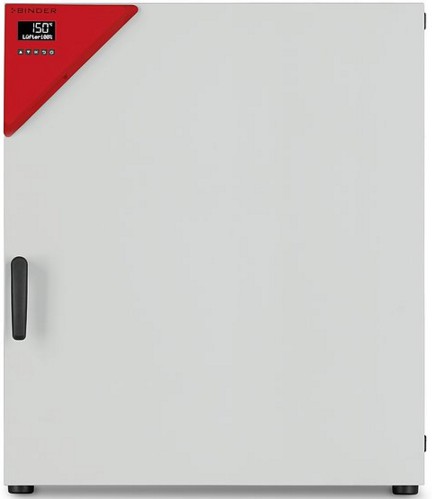

9010-0299,9010-0300 FED 260 Drying & Heating Chamber, 260L Binder
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable.
$6,316.00
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.
Important characteristics
- Temperature range: ambient temperature plus 10 °C to 300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
| Designation | FED260-230V¹ | FED260UL-240V¹ |
| Option model | Standard | Standard |
| Order number | 9010-0299 | 9010-0300 |
| Measures | ||
| Interior volume [L] | 259 | 259 |
| Net weight of the unit (empty) [kg] | 85 | 85 |
| permitted load [kg] | 270 | 270 |
| Load per rack [kg] | 40 | 40 |
| Doors | ||
| Unit doors | 1 | 1 |
| Internal Dimensions | ||
| Width [mm] | 650 | 650 |
| Height [mm] | 780 | 780 |
| Depth [mm] | 515 | 515 |

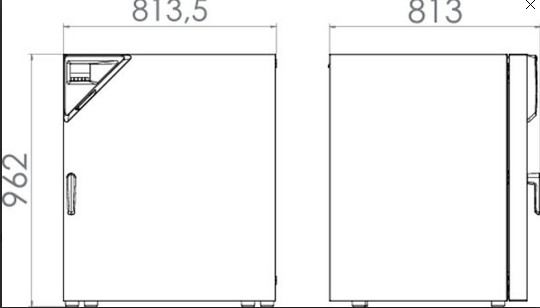

| Outer dimensions | ||
| Width net [mm] | 810 | 810 |
| Height net [mm] | 965 | 965 |
| Depth net [mm] | 760 | 760 |
| Wall clearance sidewise [mm] | 100 | 100 |
| Wall clearance back [mm] | 160 | 160 |
| Environment-specific data | ||
| Energy consumption at 150 °C [Wh/h] | 410 | 410 |
| Sound-pressure level [dB(A)] | 43 | 43 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/8 | 2/8 |
| Performance Data Temperature | ||
| Temperature range 10 °C above ambient temperature to [°C] | 300 | 300 |
| Temperature variation at 150 °C [± K] | 1.6 | 1.6 |
| Temperature fluctuation at 150 °C [± K] | 0.4 | 0.4 |
| Heating-up time to 150 °C [min] | 19 | 19 |
| Recovery time after 30 seconds door open at 150 °C [min] | 5 | 5 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 240 |
| Power frequency [Hz] | 50/60 | 60 |
| Nominal power [kW] | 2.3 | 2.5 |
| Unit fuse [A] | 12.5 | 16 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Weight | 187.4 lbs |
|---|---|
| Dimensions | 30 × 31.9 × 38 in |
| Product | 9010-0299(FED 260 Drying & Heating Chamber, 260L, 230V/50-60Hz), 9010-0300(FED 260 Drying & Heating Chamber, 260L, 240V/60Hz) |
